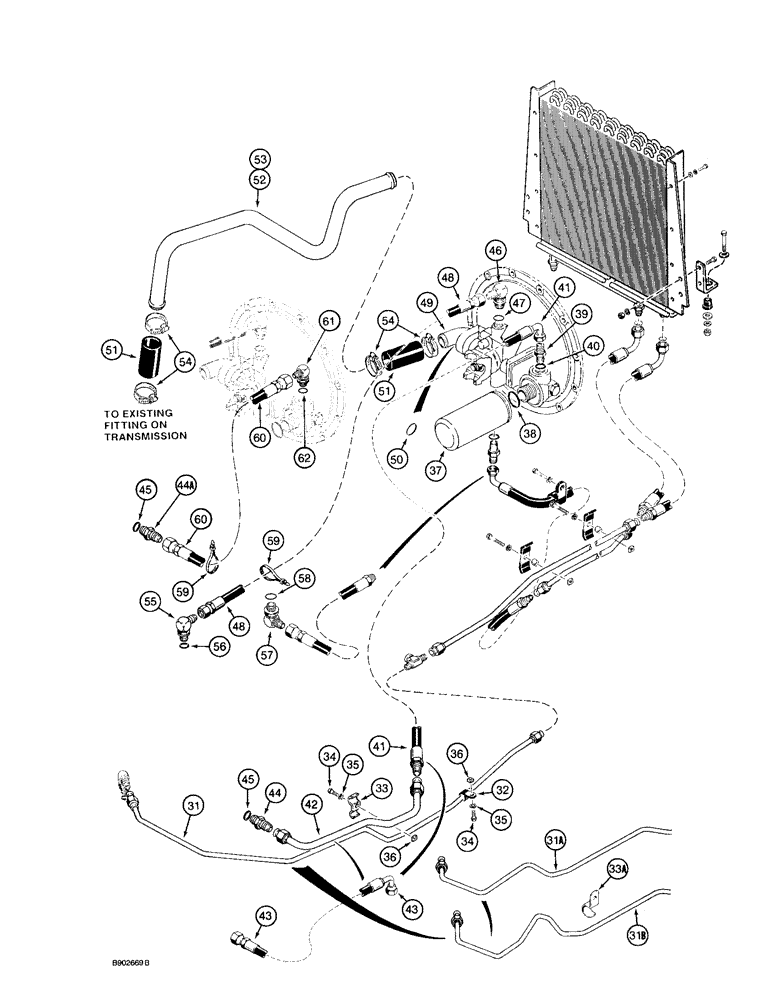

Запчасти Case 580SK (6-06) - TORQUE CONVERTER AND TRANSAXLE, SHUTTLE COOLING SYSTEM (06) - POWER TRAIN

31

D145952

PIPE

TUBE cooler outlet tube to transaxle, no longer available, order D151126 tube, Ref. 31B

1шт.

31a

D150887

TUBE

cooler outlet tube to transaxle, no longer available, order D151126 tube, Ref. 31B

1шт.

31b

D151126

TUBE

cooler outlet tube to transaxle, attaches to elbow on transaxle, see Figure 7-02, Ref. 12, for elbow, used with Ref. 33A clamp

1шт.

32

D140709

CLAMP

P-type, tube

1шт.

33

D139956

CLAMP

double tube, if used

1шт.

33a

D140709

CLAMP

single tube, if used

1шт.

34

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

36

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

37

N9025

HYDRAULIC OIL FILTER

ELEMENT filter, at torque converter, order 1346028C1

1шт.

37

1346028C1

HYDRAULIC OIL FILTER

ELEMENT filter, at torque converter, replaces N9025 element, Includes: Ref. 38

1шт.

38

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

N9025 element -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

38

1986552C2

O-RING,2.484mm ID x 1.39mm Width

2-31/64 ID x 9/64 inch, 1346028C1 element

1шт.

39

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, if used, Includes: Ref. 40

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

41

D141502

HOSE

625 mm long, torque converter charge outlet, not used on models with PTO, see Ref. 43 hose, used with Ref. 42 tube, replaced by one piece hose on some models, Ref. 60, if used

1шт.

42

D150742

TUBE

torque converter to transaxle, charge, not used on models with PTO, see Ref. 43 hose, if used

1шт.

43

D149339

HOSE ASSY.

HOSE, 1030 mm long, torque converter to transaxle, charge, replaces Ref. 41 and 42 on models with PTO

1шт.

44

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring, at transaxle, used with Ref. 42 tube or Ref. 43 hose

1шт.

44a

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch fl x O-ring boss, Ref. 60 hose, Includes: Ref. 45

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5062 or 218-5065 adapter

1шт.

46

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring, Includes: Ref. 47

1шт.

47

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

48

E49602

HOSE

1130 mm long, torque converter to transaxle lube, replaces D146201 1075 mm hose

1шт.

49

A186721

FITTING

ELBOW barb stem, 90 degree, Includes: Ref. 50

1шт.

50

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

51

D125962

HOSE

100 mm long, suction, cut to required length from D129185 bulk hose

2шт.

52

D145948

TUBE

suction, models without PTO, see Figure 6-32 for tube guard

1шт.

53

D149883

TUBE

suction, models with PTO, see Figure 6-32 for tube guard

1шт.

54

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

4шт.

55

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj O-ring boss, transaxle lube, included with power shuttle, see Figure 6-26, Incl. Ref. 56

1шт.

56

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

57

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj O-ring boss, use with Ref. 24, D150129 hose on Figure 6-04, Includes: Ref. 58

1шт.

58

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

59

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

2шт.

60

D150280

HOSE

1220 mm long, torque converter charge outlet to transaxle, replaces hose and tube, Ref. 41 and 42, used on some models

1шт.

61

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 62

1шт.

62

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

D129185

HOSE,38.1 mm ID x 863.60 mm

1шт.
