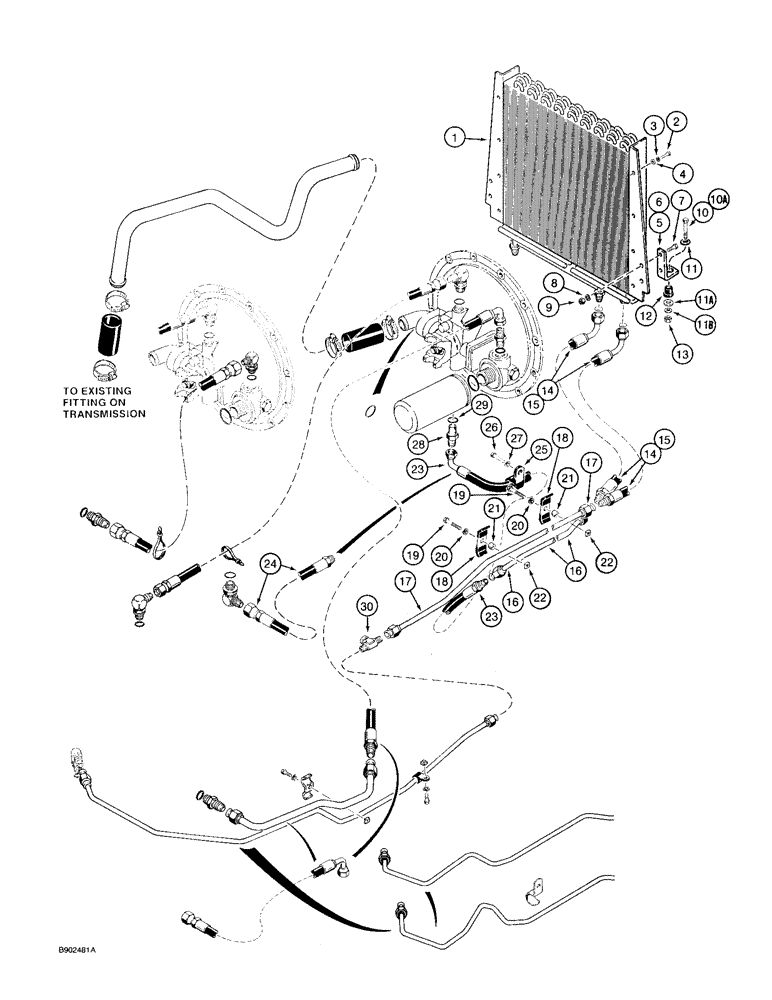

Запчасти Case 580SK (6-04) - TORQUE CONVERTER AND TRANSAXLE, SHUTTLE COOLING SYSTEM (06) - POWER TRAIN

1

A184542

COOLER, OIL

COOLER oil, transaxle shuttle

1шт.

torque converter, and equipment hydraulic oil, for equipment hydraulic oil cooler lines, see Figures 8-012 and 8-014, for oil cooler used on models with auxiliary hydraulics for optional rear hydraulics attachments, see Ref. 29 cooler on Fig. 8-14

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm

8шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

8шт.

5

114353A1

BRACKET

mounting, oil cooler to radiator shroud, left-hand, replaces D131921 bracket

1шт.

6

114352A1

BRACKET

mounting, oil cooler to radiator shroud, right-hand, replaces D131920 bracket

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, Bracket to oil cooler

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Bracket to radiator shroud, radiator shroud may have mounting hole or slot, this bolt used without Ref. 11A or 11B in mounting hole Hex, 3/8"-16 x 1 3/4", G5

2шт.

10a

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch, For radiator shroud with slot, used with Ref. 11A and 11B

2шт.

11

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 25/64 x 1-1/4 x 7/64 inch, hardened

2шт.

11a

D41740

WASHER

flat, hardened

2шт.

11b

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16"), Used with Ref. 10A in radiator shroud slot

2шт.

12

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration, rubber mount

2шт.

13

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC, grade 8

2шт.

14

D146438

HOSE,12.7mm ID x 365mm L

365 mm long, at cooler inlet and outlet, models without auxiliary hydraulics for optional rear hydraulic attachments, if used

2шт.

15

D146772

HOSE

400 mm long, at cooler inlet and outlet, models with auxiliary hydraulics for optional rear hydraulic attachments, if used

2шт.

16

D146437

TUBE

torque converter hose to cooler inlet hose

1шт.

17

D146435

TUBE

transaxle tube to cooler outlet hose

1шт.

18

D143846

CLAMP

- Double Tube

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

D149139

SPACER

tube

2шт.

22

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

23

D134007

HOSE

525 mm long, torque converter to cooler inlet, not used on models with PTO, uses Ref. 28 adapter on this page

1шт.

24

D150129

HOSE ASSY.

HOSE, 600 mm long, torque converter to cooler inlet, replaces Ref. 23 hose on models with PTO, uses Ref. 57 elbow on Figure 6-06

1шт.

25

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P, 3/4 inch diameter, models with PTO and without heater

1шт.

26

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

1шт.

27

492-11038

LOCK WASHER,3/8"

1шт.

28

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, use with item 23, D134007 hose, Incl. Ref 29

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

30

218-585

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Fem Br

1/2 female PT branch x 3/4-16 inch flare

1шт.
