Запчасти Case 580SE (192) - POWER SHUTTLE, CHARGING PUMP AND REVERSE CLUTCH (06) - POWER TRAIN

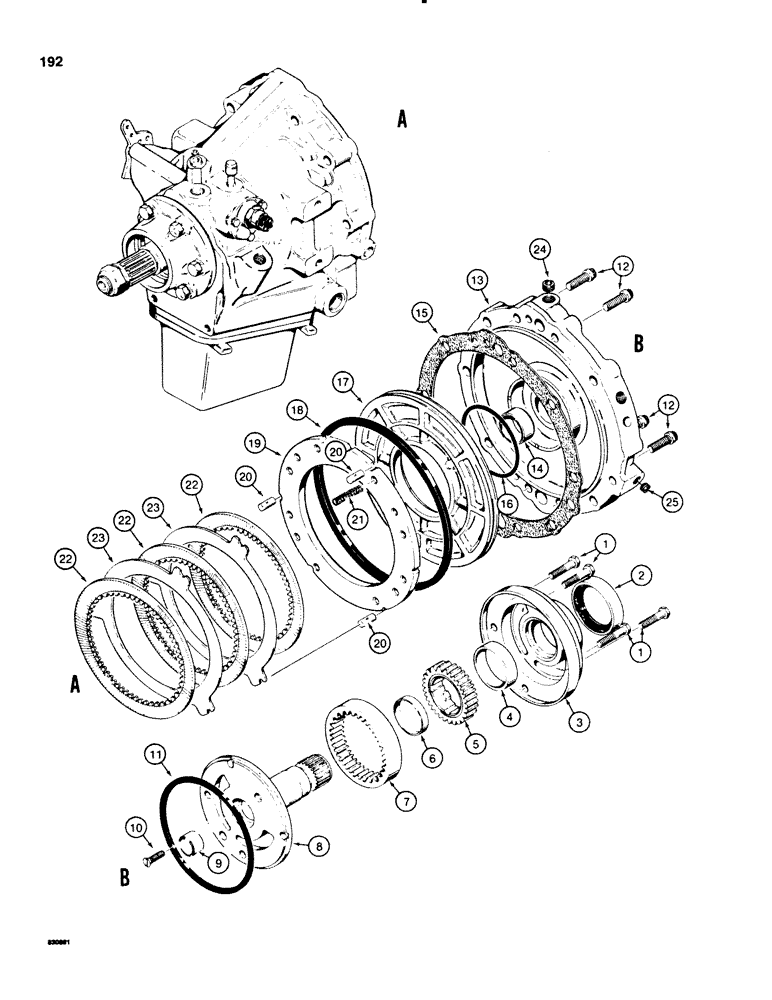

Схема запчастей Case 580SE - (192) - POWER SHUTTLE, CHARGING PUMP AND REVERSE CLUTCH (06) - POWER TRAIN
25
7
1
12
1
13
24
6
15
5
23
4
22
22
10
20
14
17
18
11
20
8
16
19
12
23
21
20
2
9
22
3

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY, See Figure 184 for service information, See Figures 184 - 192, Includes: Ref. 1 - 25

1шт.

Check the part number on the power shuttle serial number plate before ordering.

1шт.

1

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

R29995

PUMP

CHARGING PUMP ASSEMBLY, power shuttle, Includes: Ref. 2 - 10

1шт.

2

N8071

OIL SEAL,49.23mm ID x 68.53mm OD x 8.23mm Thk

oil

1шт.

3

NSS

NOT SOLD SEPARAT

BODY charging pump, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING charging pump

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR drive, charging pump, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING charging pump gear drive

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR driven, charging pump

1шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT torque converter, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING torque converter support

1шт.

10

171-100

SCREW,Sl Flat Hd, #10 - 24 x 3/4"

machine, flat head slotted, special, No. 10 - 24 NC x 3/4"

1шт.

11

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

charging pump

1шт.

12

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT Ferry head, grade 8, 3/8" - 16 NC x 1-1/4"

4шт.

D50022

ADAPTER

COVER ASSEMBLY, power shuttle, Includes: Ref. 13 - 14

1шт.

13

NSS

NOT SOLD SEPARAT

COVER power shuttle

1шт.

14

D50074

BUSHING,34.92mm ID x 38.13mm OD x 17.46mm L

cover

1шт.

15

D50033

GASKET,0.58mm Thk

, Serial Range: cover-housing

1шт.

16

D50034

O-RING,0.139" Thk x 3.484" ID

O RING small

1шт.

17

D50035

PISTON

reverse clutch

1шт.

18

D50036

SEALING RING,194.51mm ID x 232.84mm OD x 3.17mm Thk

RING piston seal, square section

1шт.

19

D50037

PLATE

pressure, reverse clutch

1шт.

20

D50038

PIN

dowel, pressure plate

3шт.

21

D50039

SPRING

pressure plate

11шт.

22

D50040

PLATE

DISC friction, internal tooth

3шт.

23

D50041

CLUTCH PLATE,155.57mm ID x 215.09mm OD x 1.8mm Thk

DISC metal, external flange

2шт.

24

221-841

PLUG

hex socket head, 1/4" NPT

1шт.

25

221-849

PLUG,Hex Soc, 1/8"-27

hex socket head, 1/8" NPT

2шт.

Выбрано товаров: 29
