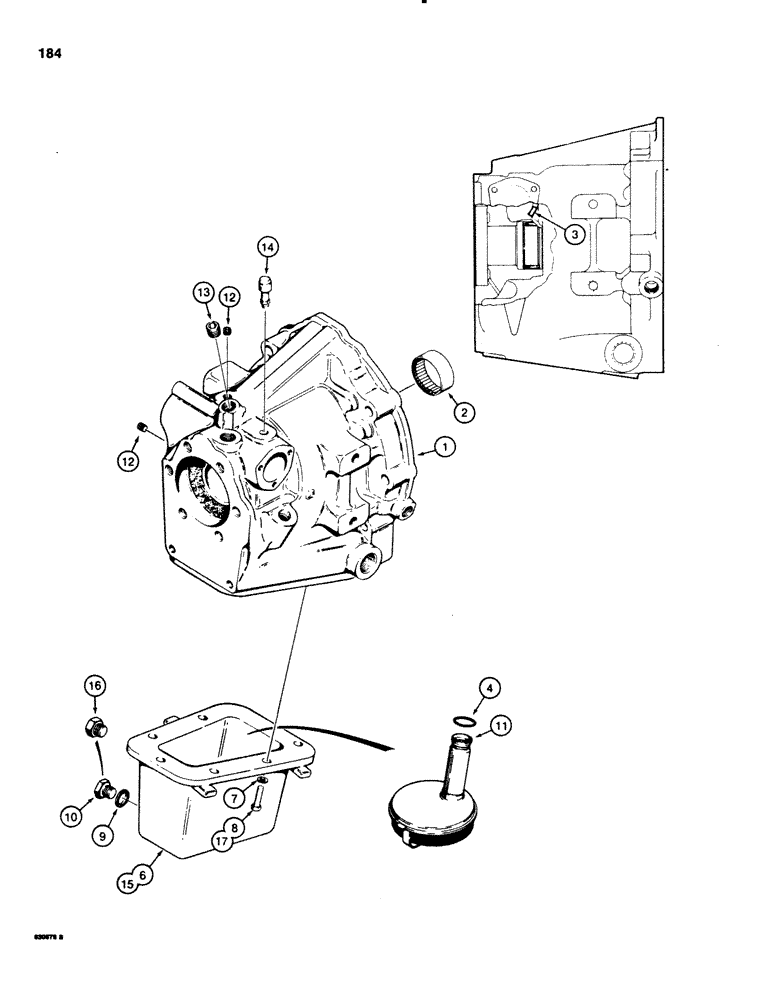

Запчасти Case 580SE (184) - POWER SHUTTLE, HOUSING AND OIL PAN (06) - POWER TRAIN

D88050

TRANSMISSION

POWER SHUTTLE ASSEMBLY, Warner Gear No. 10 16 000 022, for service order D101784 kit below and D73776 yoke on Figure 186, See Figures 186 - 192

1шт.

Check the part number on the power shuttle serial number plate before ordering.

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number, Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

D136020

CLUTCH ASSEMBLY

POWER SHUTTLE ASSEMBLY, service replacement for D125633, Warner Gear No.10 16 000 026, and D135731, Warner Gear No.10 16 000 033, power shuttles used in production on some models, includes instruction sheet, See Figures 186-192, D135731 power shut

1шт.

.

Includes: Ref. D70650, 1 - 17

1шт.

Check the part number on the power shuttle serial number plate before ordering.

1шт.

D70650

HOUSING

HOUSING ASSEMBLY, power shuttle, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING power shuttle

1шт.

2

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING needle, housing, 1-3/4 in ID

1шт.

3

41-1007

PLUG,Cup, 7/16"

PLUG Cup, 7/16"

1шт.

4

R29797

O-RING,0.07" Thk x 0.739" ID

O RING screen tube

1шт.

5

345-84

ADHESIVE

SEALANT 3 oz (89 ml) of sealant in a tube, oil pan to housing, not shown

1шт.

6

R29902

PAN

PAN oil, power shuttle, no longer available, for service order N13577 oil pan, 221 841 drain plug, and, 7, 113 221 bolts, see items 15 - 17

1шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

7шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

D73701

PLUG

PLUG ASSEMBLY, drain, used with R29902 oil pan, Includes: Ref, 9 - 10

1шт.

9

D73701

PLUG

GASKET drain plug, Replaced NSS

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG drain

1шт.

11

D66455

FILTER SCREEN

SCREEN sump, power shuttle

1шт.

12

221-849

PLUG,Hex Soc, 1/8"-27

PLUG hex socket head, 1/8" NPT

2шт.

13

221-843

PLUG,Hex Soc, 3/8"-18

PLUG hex socket head, 3/8" NPT

1шт.

14

D50062

BREATHER

BREATHER power shuttle

1шт.

15

N13577

PAN

PAN oil, power shuttle

1шт.

16

221-841

PLUG

PLUG hex socket head, 1/4" NPT

1шт.

17

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

7шт.

D101784

TRANSMISSION

KIT, power shuttle, includes D125633 power shuttle assembly and installation instruction

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket

1шт.
