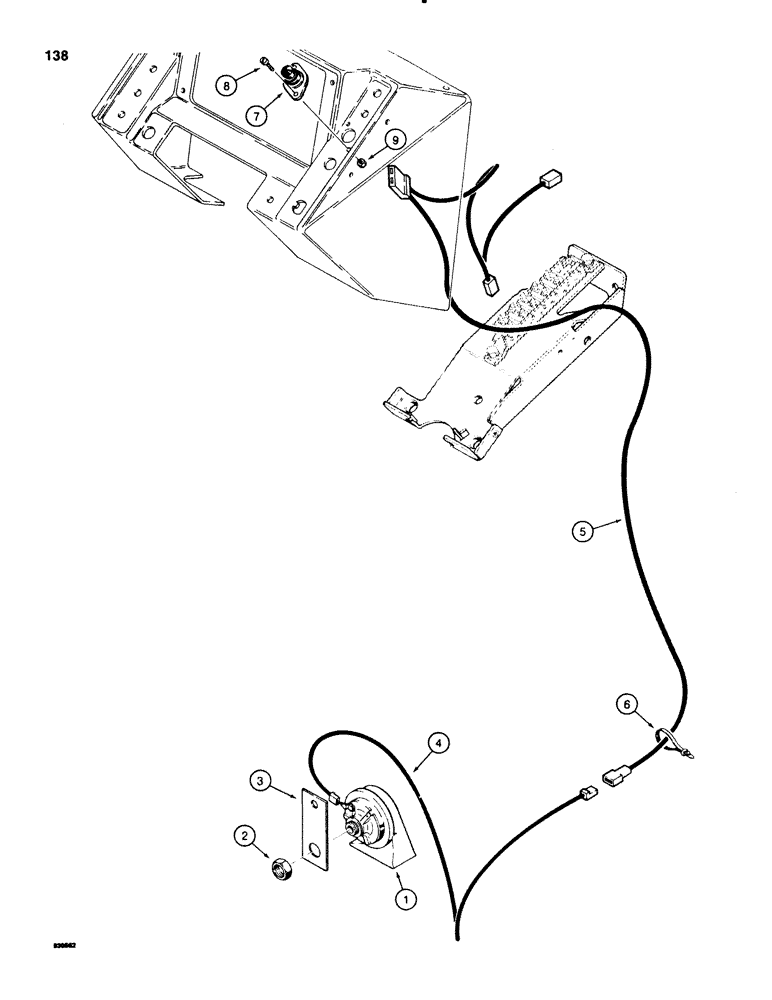

Запчасти Case 580SE (138) - HORN (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

12 volt

1шт.

2

L30866

LOCK NUT

horn mounting, 7/8" - 20

1шт.

3

D122734

SUPPORT

BRACKET horn mounting, fastens to transmission support strap, for attaching hardware See Figure 198, items 4, 5, and 6 or See Figure 202

1шт.

items 3, 4, and 5

1шт.

4

D91176

ELECTRICAL WIRE

WIRE horn to switch wire

1шт.

5

D75818

ELECTRICAL WIRE

WIRE from switch and circuit breaker

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

7

D67872

SWITCH

push button, horn

1шт.

8

163-15

SCREW,Hex, #10 - 24 x 5/8"

machine, hex head, plated, No. 10 - 24 NC x 5/8"

2шт.

9

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT AND LOCK WASHER plated, No. 10 - 24 NC

2шт.
