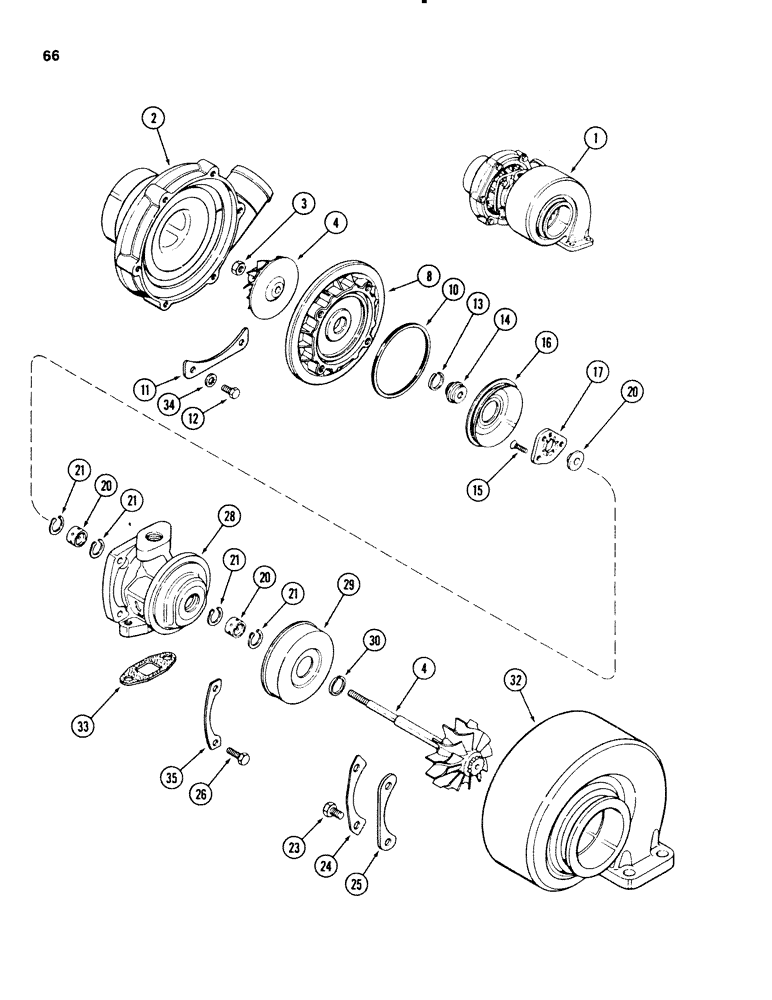

Запчасти Case 580SE (066) - TURBOCHARGER ASSEMBLY, 4T-390 DIESEL ENGINE (02) - ENGINE

1

J908293

TURBOCHARGER

TURBOCHARGER ASSEMBLY, new, Includes: Ref. 2 - 35

1шт.

1

JR908293

REMAN-TURBOCHARGER

Turbocharger Assembly\r\n, Remanufactured

1шт.

1

JC908293

CORE

Return Part Number, Use this number when returning turbocharger for credit

1шт.

1

JR802290

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC535381

CORE-TURBOCHARGER

Return Part Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT hex lock, Reference No. J904749

1шт.

Part of Overhaul Kit, P/N J904772

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY, turbocharger

1шт.

8

NSS

NOT SOLD SEPARAT

DIFFUSER compressor

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL diffuser, Reference No. J904751

1шт.

Part of Overhaul Kit, P/N J904772

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE diffuser clamping

3шт.

12

NSS

NOT SOLD SEPARAT

BOLT AND WASHER ASSEMBLY, hex lock, Reference No. J90453

6шт.

Part of Overhaul Kit, P/N J904772

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL split ring, compressor, Reference No. J904754

1шт.

Part of Overhaul Kit, P/N J904772

1шт.

14

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW flat head Torx, Reference No. J904757

3шт.

Part of Overhaul Kit, P/N J904772

1шт.

16

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING thrust, Reference No. J904758

1шт.

Part of Overhaul Kit, P/N J904772

1шт.

20

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

21

NSS

NOT SOLD SEPARAT

RING snap, Reference No. J904760

4шт.

Part of Overhaul Kit, P/N J904772

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING impeller shaft, Reference No. J904761

2шт.

Part of Overhaul Kit, P/N J904772

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT cap, Reference No. J904762

4шт.

Part of Overhaul Kit, P/N J904772

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE lock, turbine housing, Reference No. J904763

2шт.

Part of Overhaul Kit, P/N J904772

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE clamping, turbine housing

2шт.

26

NSS

NOT SOLD SEPARAT

BOLT AND WASHER ASSEMBLY, hex lock, Reference No. J904765

4шт.

Part of Overhaul Kit, P/N J904772

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING turbine bearing

1шт.

29

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL piston ring, turbine, Reference No. J904768

1шт.

Part of Overhaul Kit, P/N J904772

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING turbine

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET oil drain, Reference No. J904770

1шт.

Part of Overhaul Kit, P/N J904772

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER lock, Reference No. J904774

6шт.

Part of Overhaul Kit, P/N J904772

1шт.

35

NSS

NOT SOLD SEPARAT

PLATE lock, turbine, Reference No. J904775

2шт.

Part of Overhaul Kit, P/N J904772

1шт.

J904772

PACKAGE, REPAIR

KIT, overhaul, turbocharger, Includes: Ref. 3, 10, 12, 13, 15, 17, 21, 22, 23, 24, 26, 30, 33, 34, 35

1шт.
