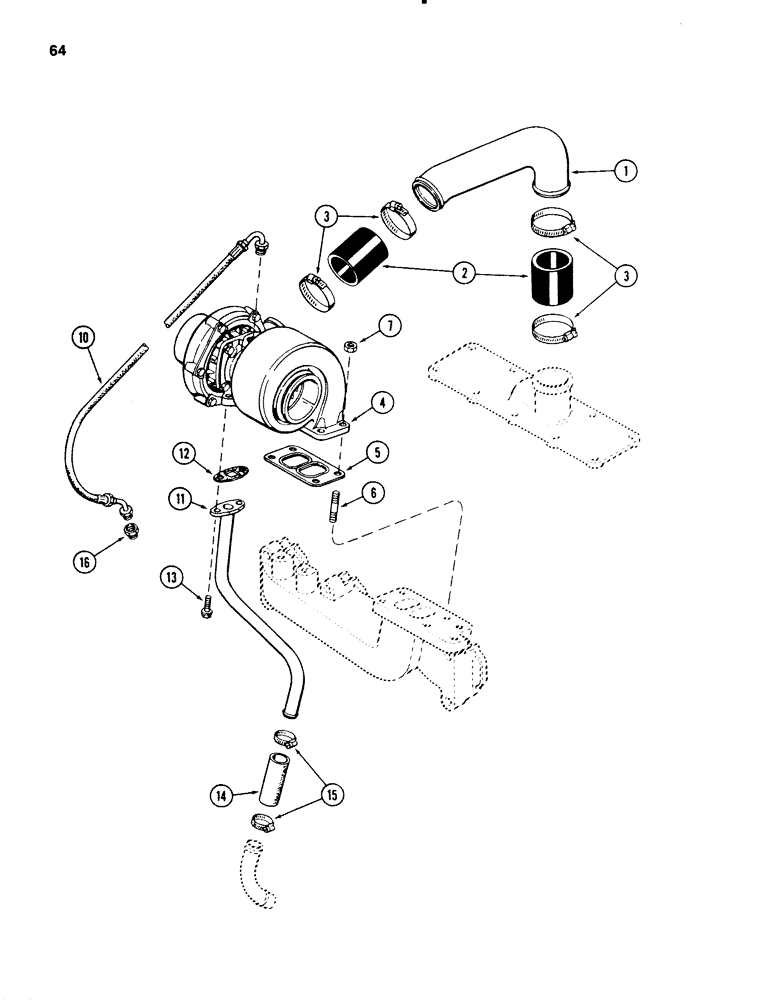

Запчасти Case 580SE (064) - TURBOCHARGER SYSTEM, 4T-390 DIESEL ENGINE (02) - ENGINE

1

J906623

TUBE,2 mm OD x 299.8 mm L

ELBOW air intake

1шт.

2

J901804

INTAKE AIR HOSE

HOSE air intake

2шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33 to 57 mm) #28, 1.31/2.25 Type F Worm

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY, See Figure 66

1шт.

5

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

6

J905417

STUD

turbocharger mounting

1шт.

7

J901961

NUT

hex, turbocharger mounting

4шт.

10

J903658

HOSE

ASSEMBLY, turbocharger oil supply

1шт.

11

J903740

TUBE

turbocharger oil drain

1шт.

12

J901805

GASKET

oil drain tube

1шт.

13

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

hex, M8 x 1.6 mm

2шт.

14

J903745

LARGE HOSE

HOSE turbocharger oil drain

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose, 1-3/16 to 1-3/4 inch (30 to 44 mm)

2шт.

16

A77457

FITTING

CONNECTOR female hex, drain tube to filter hose

1шт.
