Запчасти Case 580SE (058) - PISTONS, 4-390 DIESEL ENGINE, CONNECTING RODS (02) - ENGINE

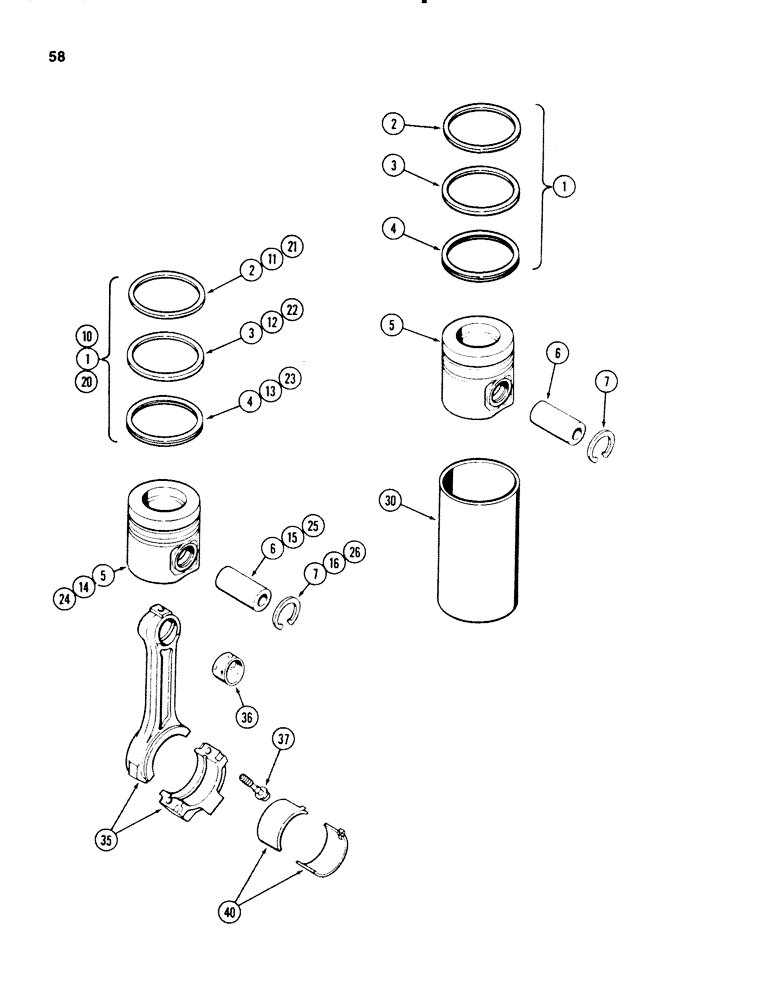

Схема запчастей Case 580SE - (058) - PISTONS, 4-390 DIESEL ENGINE, CONNECTING RODS (02) - ENGINE
13
23
40
14
4
7
30
5
37
12
15
20
3
35
24
1
10
6
22
3
6
4
26
1
7
36
2
21
11
5
25
16
2

Артикул

Название

Примечание

Количество

A77460

KIT

piston, engine, standard, Prior to Engine Serial No. 44117591

4шт.

A77410

PISTON

KIT, piston, engine, Standard, Engine Serial No. 44117591 and after, Includes: Ref. 1 - 7

4шт.

A77410/411/412 are short pin piston kits, stamped 6223,6209, and 6208 on piston A77818/819/820 are long pin piston kits, stamped 1880, 1882, 1881 on piston

1шт.

1

A77401

PISTON RING SET

KIT, ring, piston, standard, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, top, Reference No. J902400

1шт.

3

NSS

NOT SOLD SEPARAT

RING compression, middle, Reference No. J902286

1шт.

4

NSS

NOT SOLD SEPARAT

RING oil, bottom, Reference No. J903384

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON engine, standard, Reference No. J903803, Used in A77460 kit

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON engine standard, Reference No. J906222, Used in A77410 kit

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

retainer, pin

2шт.

A77461

KIT

piston, engine, 0.5 mm oversize, Start Serial: Prior

1шт.

*

Engine Serial No. 44117591

4шт.

A77411

PISTON

KIT, piston, engine, 0.5 mm oversize, Includes: Ref. 10 - 16

1шт.

*

Engine Serial No. 44117591 and after

4шт.

10

A77463

PISTON RING SET

KIT, ring, engine, 0.5 mm oversize, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING compression, top, Reference No. J902393

1шт.

12

NSS

NOT SOLD SEPARAT

RING compression, middle, Reference No. J904317

1шт.

13

NSS

NOT SOLD SEPARAT

RING oil, bottom, Reference No. J904349

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON engine, 0.5 mm oversize, Reference No. J903811

1шт.

*

Used in A77461 kit

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON engine, 0.5 mm oversize, Reference No. J906209

1шт.

*

Used in A77411 kit

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

retainer, pin

2шт.

A77462

KIT

piston, engine, 1.0 mm oversize, Includes: Ref. 20 - 26

1шт.

*

Prior to Engine Serial No. 44117591

4шт.

A77412

PISTON

KIT, piston, engine, 1.0 mm oversize

1шт.

*

Engine Serial No. 44117591 and after

4шт.

20

A77464

PISTON RING SET

KIT, ring, engine 1.0 mm oversize, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

RING compression top, Reference No. J902442

1шт.

22

NSS

NOT SOLD SEPARAT

RING compression, middle, Reference No. J901348

1шт.

23

NSS

NOT SOLD SEPARAT

RING oil, bottom, Reference No. J904350

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON engine 1.0 mm oversize, Reference No. J903814

1шт.

*

Used in A77462 kit

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON engine, 1.0 mm oversize, Reference No. J906208

1шт.

*

Used in A77412 kit

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

retainer, pin

2шт.

30

J904166

SLEEVE

LINER piston, Used only in engine block repair

1шт.

*

When liner is installed, use only A77460 or A77410 Piston Kit

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY, connecting, new, Includes: Ref. 36 - 37

4шт.

35

84145405R

REMAN-CONNECTING ROD

580SE, Reman For New PN J901569

4шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

35

JR901569

ROD

connecting, remanufactured, North America only

4шт.

35

JR942581

REMAN-CONNECTING ROD

Connecting Rod

4шт.

35

JC901569

CORE-ROD CONNECTING

Return Number use this part number to return connecting rod for credit

4шт.

36

NSS

NOT SOLD SEPARAT

BUSHING connecting rod to piston pin, Order J901569, Reference No. J901085

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex special, connecting rod, MJ11 x 26 mm

2шт.

40

A77465

BEARING SET

KIT, bearing, connecting rod, set, upper and lower, standard

4шт.

40

A77466

BEARING SET

KIT, bearing, connecting rod, set, upper and lower, 0.25 mm oversize

4шт.

40

A77467

BEARING LINER

KIT, bearing, connecting rod, set, upper and lower, 0.5 mm oversize

4шт.

40

A77468

BEARING SET

KIT, bearing, connecting rod, set, upper and lower, 0.76 mm oversize

4шт.

40

A77469

BEARING SET

KIT, bearing, connecting rod, set, upper and lower, 1.0 mm oversize

4шт.

Выбрано товаров: 54
