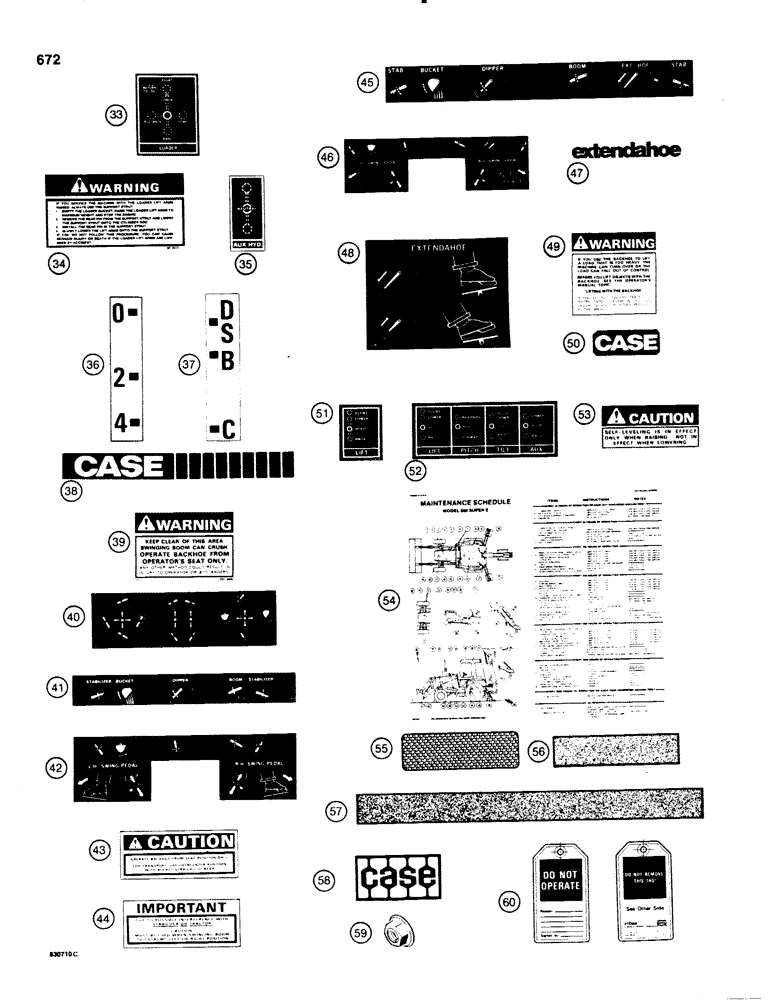

Запчасти Case 580SE (672) - DECALS (09) - CHASSIS/ATTACHMENTS

N8348

DECAL

KIT, decal, continued, Includes: Ref. 33 - 57

1шт.

33

321-3718

DECAL

loader control pattern

1шт.

34

321-6413

DECAL

Warning, left hand, loader lift arm support strut usage

1шт.

35

321-3581

DECAL

auxiliary hydraulics, control pattern

1шт.

36

321-1708

DECAL

clam bucket opening

1шт.

37

321-1707

DECAL

clam bucket position

1шт.

38

D123959

DECAL

Case, with right treads, tan, cab models

1шт.

38

D123951

DECAL

Case, with right treads, brown, ROPS fender

1шт.

39

321-4481

DECAL

Warning, keep clear of this area swinging boom can crush

2шт.

40

D123978

DECAL

backhoe control pattern, two lever

1шт.

41

D123977

DECAL

standard backhoe control pattern, upper

1шт.

42

D123976

DECAL

standard backhoe control pattern, lower

1шт.

43

321-3056

DECAL

Caution, operate backhoe from seat position only

1шт.

44

321-3058

DECAL

Important, due to possible interference, swinging boom

1шт.

45

D123941

DECAL

extendahoe control pattern, upper

1шт.

46

D123940

DECAL

extendahoe control pattern, lower

1шт.

47

D123945

DECAL

extendahoe

2шт.

48

D123948

DECAL

Extendahoe, pedal control pattern

1шт.

49

321-6046

WARNING DECAL

DECAL, WARNING, Backhoe lifting load

1шт.

50

D124115

DECAL

Case, three point hitch frame

2шт.

51

321-6058

DECAL

three point hitch control pattern, single spool valve models

1шт.

52

321-6059

DECAL

three point hitch control pattern, four spool valve models

1шт.

53

321-3775

DECAL

Caution, pallet fork, self leveling

1шт.

54

D128927

DECAL

Maintenance Schedule, two wheel or four wheel drive, with dry brake transaxles

1шт.

54a

D137462

DECAL

Maintenance Schedule, two wheel or four wheel drive, with wet brake transaxles, not shown

1шт.

55

D87870

DECAL

reflector, red, rear

2шт.

56

D55216

PAD,2" x 9"

STRIP anti skid, steps

3шт.

57

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, Operators compartment

1шт.

58

321-4739

EMBLEM

Case, on grille

1шт.

59

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT push, attaches emblem to grille

2шт.

60

321-4614

TAG

Do Not Operate

1шт.
