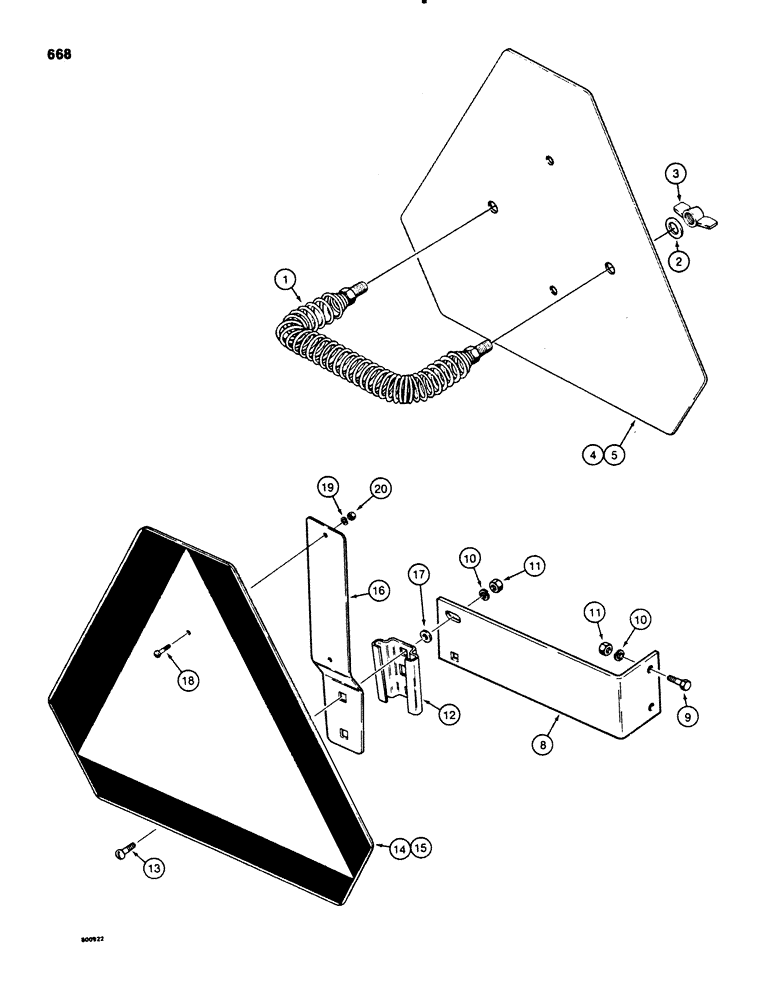

Запчасти Case 580SE (668) - SLOW MOVING VEHICLE EMBLEM, USED ON MODELS WITH BACKHOE (09) - CHASSIS/ATTACHMENTS

1

D52564

SPRING

emblem retaining, used on models with backhoe

1шт.

2

195-518

WASHER,1/4", SAE

flat, plated, 1/4", used on models with backhoe

2шт.

3

129-409

WING NUT,1/4"-20

NUT, WING, , Used on models with backhoe 1/4"-20

2шт.

4

D123347

WARNING SIGN

EMBLEM plate and decal, used on models with backhoe, Includes: Ref. 5

1шт.

5

321-4311

DECAL

slow moving vehicle emblem, used on models with backhoe

1шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Used when storing emblem only, not shown, used on models with backhoe

2шт.

8

D91465

BRACKET

SMV emblem mounting, horizontal, used on models without backhoe

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Used on models without backhoe

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Used on models without backhoe 5/16"

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

Used on models without backhoe 5/16"-18, G5

4шт.

12

A59457

BRACKET

emblem mounting, short, used on models without backhoe

1шт.

13

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT short neck, plated, 5/16" - 18 NC x 3/4", used on models without backhoe

2шт.

A59450

WARNING SIGN

EMBLEM ASSEMBLY, SMV, riveted construction, Replaces bolted construction, used on models without backhoe, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE SMV emblem, used on models without backhoe

1шт.

15

321-4311

DECAL

slow moving vehicle emblem, used on models without backhoe

1шт.

16

NSS

NOT SOLD SEPARAT

BRACKET emblem mounting, vertical, long, used on models without backhoe

1шт.

17

195-521

WASHER,5/16", SAE

flat, plated, 5/16", used on models without backhoe

1шт.

18

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

machine, pan head slotted, plated, No. 10 - 24 NC x 1/2", if used, used on models without backhoe

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , If used, used on models without backhoe #10

2шт.

20

129-17

NUT,Hex, #10 - 24

NUT hex, plated, No. 10 - 24 NC, if used, used on models without backhoe

2шт.
