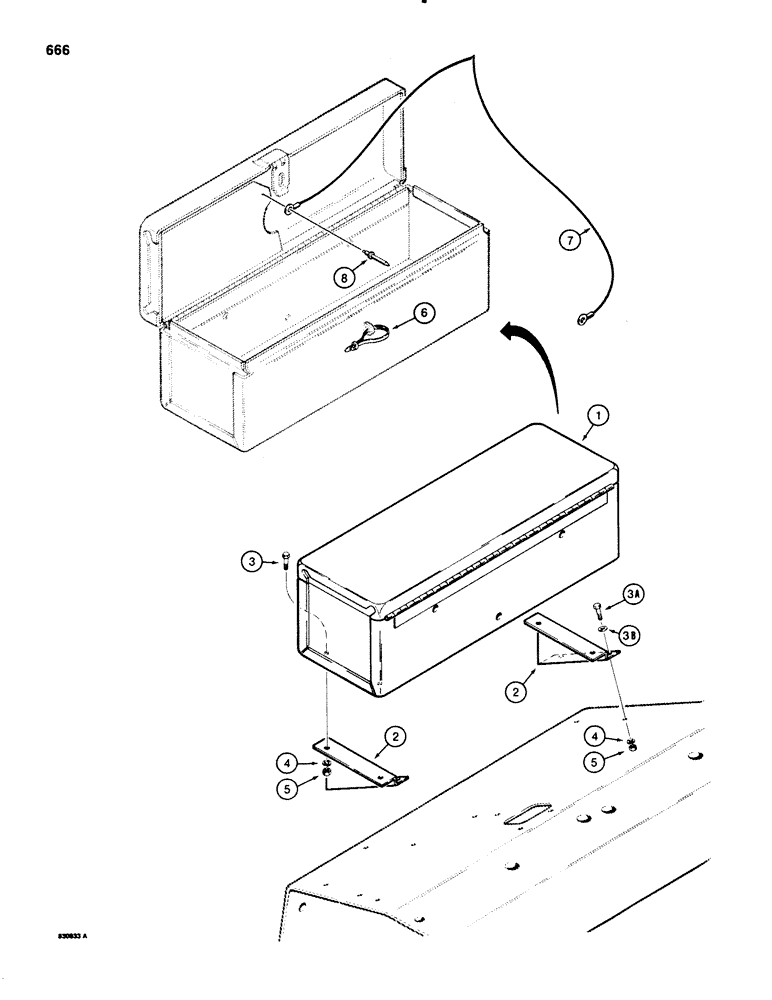

Запчасти Case 580SE (666) - OPERATORS TOOL BOX (09) - CHASSIS/ATTACHMENTS

1

D124090

BOX, TOOL

TOOL BOX tractor, has internal clip for operators manual

1шт.

2

D84021

BRACKET

mounting, tool box

2шт.

3

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

3a

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

3b

195-518

WASHER,1/4", SAE

flat, plated, 1/4"

4шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

7

R46465

CABLE,36mm L

CORD manual retaining

1шт.

8

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET, 3/16"

1шт.
