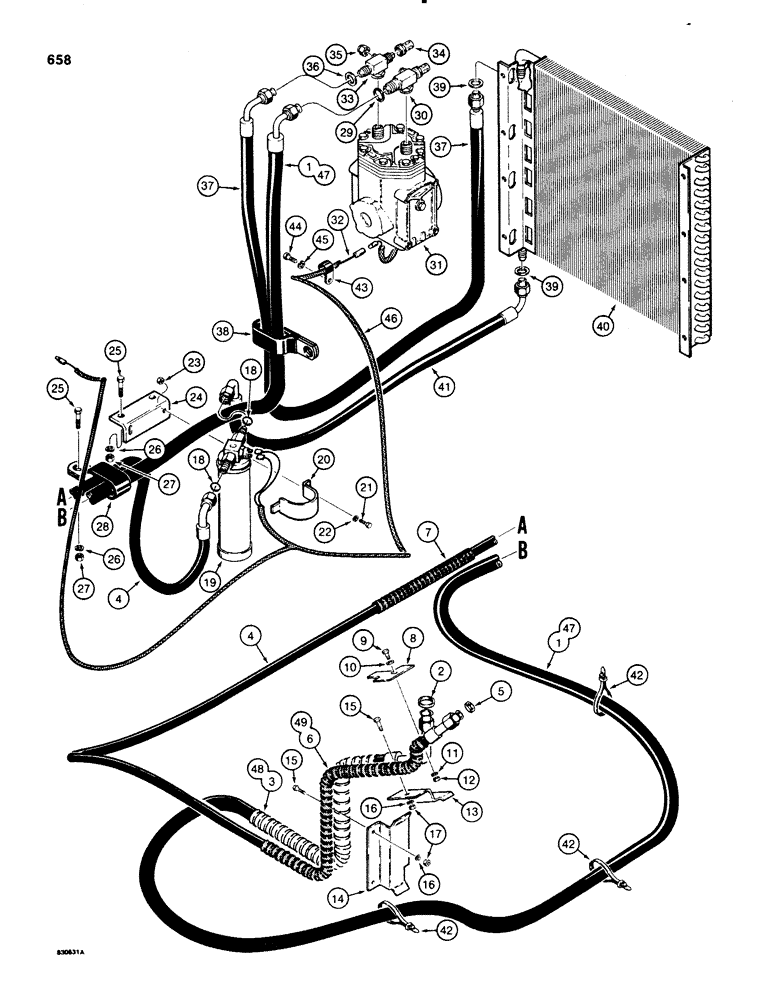

Запчасти Case 580SE (658) - CONDENSER, RECEIVER-DRIER AND AIR CONDITIONER LINES (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D125619
HOSE ASSY.
HOSE, 162-13/32" (4125 mm) long, from cab to compressor, condenser, receiver driver and air conditioner lines
1шт.
See Figure 660 for models with air conditioning lines routed along the left hand side of the chassis.
1шт.
2
222-996
GASKET,3/4 Tube, Fl, Copper
copper, 3/4" (19 mm) tube O.D., condenser, receiver driver and air conditioner lines
1шт.
3
D121040
GUARD
1-3/8" (28.90 mm) ID x 31-1/2" (800 mm) long, hose, condenser, receiver driver and air conditioner lines
1шт.
See Figure 660 for models with air conditioning lines routed along the left hand side of the chassis.
1шт.
4
D124110
HOSE ASSY.
HOSE receiver drier to cab, condenser, receiver driver and air conditioner lines
1шт.
5
222-993
GASKET,3/8 Tube, Fl, Copper
(9 mm), Condenser, Receiver Driver and Air Conditioner Lines 3/8 Tube, Fl, Copper
1шт.
6
D121039
GUARD
SLEEVE, 3/4" (19.05 mm) ID x 31-1/2" (800 mm) long, hose, rear, condenser, receiver driver and air conditioner lines
1шт.
See Figure 660 for models with air conditioning lines routed along the left hand side of the chassis.
1шт.
7
D94363
CONDUIT
SLEEVE, 3/4" (19.05 mm) ID x 9-27/32" (250 mm) long, hose, front, not used on models with air conditioning hoses routed along the left hand side of the chassis, condenser, receiver driver and air conditioner lines
1шт.
See Figure 660 for models with air conditioning lines routed along the left hand side of the chassis.
1шт.
8
D92587
PLATE
cover, right hand fender, condenser, receiver driver and air conditioner lines
1шт.
9
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd, Condenser, receiver driver and air conditioner lines
1шт.
10
195-521
WASHER,5/16", SAE
flat, plated, 5/16", condenser, receiver driver and air conditioner lines
1шт.
11
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , Condenser, receiver driver and air conditioner lines 5/16"
1шт.
12
9635082
NUT,5/16" - 18, Gr 5
Condenser, receiver driver and air conditioner lines 5/16"-18, G5
1шт.
13
D120968
BRACKET
hose retaining, upper, condenser, receiver driver and air conditioner lines
1шт.
14
D120967
BRACKET
hose retaining, lower, condenser, receiver driver and air conditioner lines
1шт.
15
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Condenser, receiver driver and air conditioner lines Hex, 3/8"-16 x 3/4", G5, Full Thd
3шт.
16
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , Condenser, receiver driver and air conditioner lines 3/8"
3шт.
17
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , Condenser, Receiver driver and air conditioner lines 3/8"-16, G5
3шт.
18
A61198
O-RING,0.07" Thk x 0.301" ID, -11
O RING hose, condenser, receiver driver and air conditioner lines
2шт.
19
A76312
RECEIVER-DRYER
DRIER receiver, air conditioner, condenser, receiver driver and air conditioner lines
1шт.
Switch showing in illustration at top of this part is A47717
1шт.
20
A61193
CLAMP
receiver drier mounting, condenser, receiver driver and air conditioner lines
1шт.
21
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Condenser, Receiver Driver and Air Conditioner lines Hex, 5/16"-18 x 1", G5, Full Thd
1шт.
22
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , Condenser, receiver driver and air conditioner lines 5/16"
1шт.
23
9635082
NUT,5/16" - 18, Gr 5
Condenser, receiver driver and air conditioner lines 5/16"-18, G5
1шт.
24
D124119
BRACKET
receiver drier mounting, condenser, receiver driver and air conditioner lines
1шт.
25
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
Condenser, receiver driver and air conditioner lines Hex, 3/8"-16 x 1 1/4", G5, Full Thd
3шт.
26
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , Condenser, receiver driver and air conditioner lines 3/8"
3шт.
27
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , Condenser, Receiver driver and air conditioner lines 3/8"-16, G5
3шт.
28
D39696
CLAMP,25.40mm - 13.49mm Bolt, CTD
double p style, condenser, receiver driver and air conditioner lines
1шт.
29
222-995
SEALING WASHER,15.88mm ID
copper, 5/8" (16 mm) tube O.D., condenser, receiver driver and air conditioner lines
1шт.
30
A42937
VALVE
compressor inlet, 5/8" port, condenser, receiver driver and air conditioner lines
1шт.
31
REF
INSTRUCTION
COMPRESSOR air conditioner, See Figure 92, mounting parts Figures 96, condenser, receiver driver and air conditioner lines
1шт.
32
D122139
HARNESS
air conditioner, condenser, receiver driver and air conditioner lines
1шт.
33
A145699
VALVE
compressor, outlet, 1/2" port, condenser, receiver driver and air conditioner lines, Includes: Ref. 34 and 35
1шт.
34
A42944
CAP
sleeve valve stem, condenser, receiver driver and air conditioner lines
1шт.
35
222-981
TUBE NUT,Cap, 3/8"-24, 45 Degree Fl
CAP hex, seal, valve stem, condenser, receiver driver and air conditioner lines
1шт.
36
222-994
GASKET,1/2 Tube, Fl, Copper
copper, 1/2" (13mm) tube O.D., condenser, receiver driver and air conditioner lines
1шт.
37
D90310
HOSE
compressor to condenser, condenser, receiver driver and air conditioner lines
1шт.
38
D39696
CLAMP,25.40mm - 13.49mm Bolt, CTD
hoses, uses existing compressor mounting plate hardware, See Figure 96, condenser, receiver driver and air conditioner lines
1шт.
39
222-993
GASKET,3/8 Tube, Fl, Copper
(9 mm), Condenser, Receiver Driver and Air Conditioner Lines 3/8 Tube, Fl, Copper
2шт.
40
A171233
CONDENSER
coil, refrigerant cooler, uses oil cooler mounting hardware, condenser, receiver driver and air conditioner lines
1шт.
41
D124112
HOSE ASSY.
HOSE condenser to receiver drier, condenser, receiver driver and air conditioner lines
1шт.
42
L18337
CABLE TIE,9.95"-12.1" lg
STRAP tie, 15 inch, nylon, condenser, receiver driver and air conditioner lines
1шт.
43
515-2363
CLAMP,M6.3, Insul, 3/8" Bolt
p type, condenser, receiver driver and air conditioner lines
1шт.
44
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
Condenser, receiver driver and air conditioner lines Hex, 3/8"-16 x 1", G5, Full Thd
1шт.
45
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , Condenser, receiver driver and air conditioner lines 3/8"
1шт.
46
D126832
SLEEVE
harness cover, condenser, receive driver and air conditioner lines
1шт.
47
D134427
HOSE ASSY.
HOSE, 165-3/8" (4200 mm) long, from cab to compressor, special parts used on models with air conditioner hoses routed on left hand side of chassis
1шт.
48
D134398
CABLE SHEATH
GUARD, 1-5/16" (33.10 mm) ID x 118-1/8" (3000 mm) long, hose, special parts used on models with air conditioner hoses routed on left hand side of chassis
1шт.
49
D134396
CABLE SHEATH
SLEEVE, 3/4" (19.05 mm) ID x 118-1/8" (3000 mm) long, hose, rear, special parts used on models with air conditioner hoses routed on left hand side of chassis
1шт.
