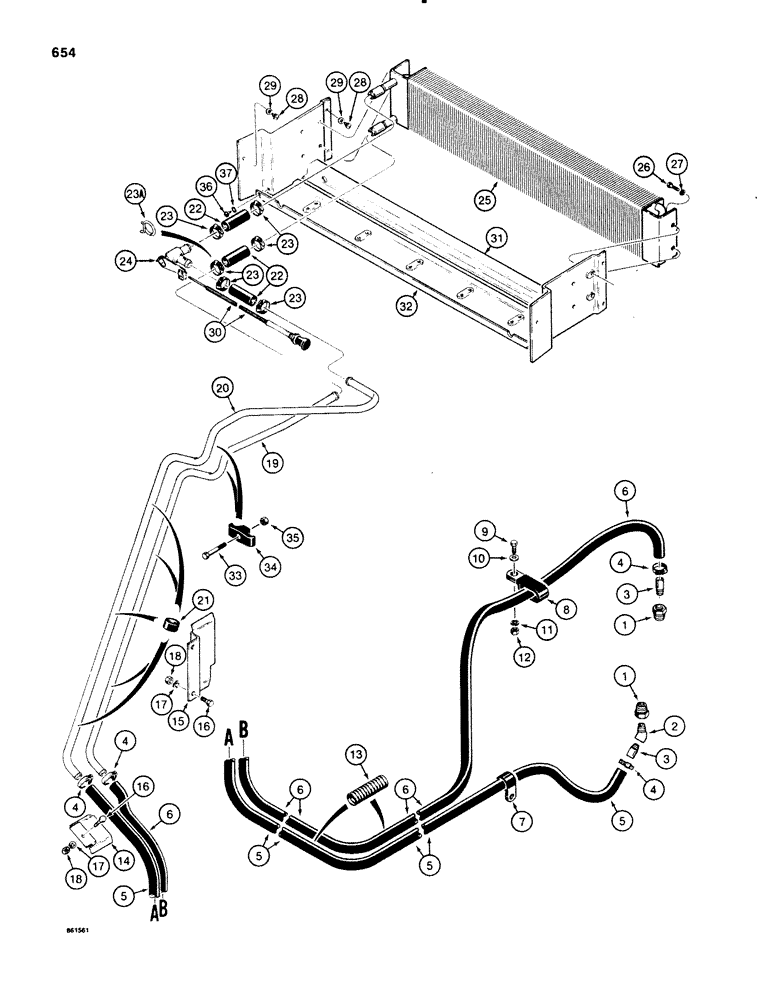

Запчасти Case 580SE (654) - CAB HEATER, HOSES ROUTED ON THE RIGHT-HAND SIDE OF THE CHASSIS (09) - CHASSIS/ATTACHMENTS

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

1/2" x 3/8" NPT

2шт.

2

D73369

FITTING

ELBOW street, 45 degree, 3/8" NPT

1шт.

3

L17985

FITTING,3/8" - 18 NPT

NIPPLE, 3/8" NPT

2шт.

4

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP hose, adjustable

4шт.

5

D135462

HOSE heater outlet, 5/8" (16 mm) ID x 143-23/32" (3650 mm) long, cut from A42610 bulk hose, see below

1шт.

6

D134397

HOSE heater inlet, 5/8" (16 mm) ID x 161-7/16" (4100 mm) long, cut from A42610 bulk hose, see below

1шт.

7

D41564

p style

1шт.

8

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

double p style, mounts to air cleaner bracket

1шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

1шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

13

D134399

LOOM

GUARD heater hoses, 1-3/32" (28 mm) ID x 120-7/8" (3070 mm) long

2шт.

14

D87758

BRACKET

hose, left hand fender, small, upper

1шт.

15

D87759

BRACKET

hose, left hand fender, large, lower

1шт.

16

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

19

F44938

HEATER TUBE

TUBE heater inlet

1шт.

20

F44939

HEATER TUBE

TUBE heater outlet

1шт.

21

F64347

SEAL

GUARD heater tubes

5шт.

22

REF

INSTRUCTION

HOSE, 2" (51 mm) long, cut from A42610 bulk hose, see below, heater tubes to valve and core

3шт.

23

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP hose, worm screw type, if used

6шт.

23a

214-109

HOSE CLAMP,#14, 7/8", Spring

CLAMP hose, single wire spring type, if used

6шт.

24

F63865

VALVE

flow control, heater

1шт.

25

F45204

HEAT-EXCHANGER

CORE heater

1шт.

26

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

28

187-1903

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW hex head, self tapping, plated, No. 12 - 24 NC x 1/2"

6шт.

29

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

6шт.

30

REF

INSTRUCTION

CABLE heater control, See Figure 632

1шт.

31

F96821

BRACKET

heater core

1шт.

32

F96820

PANEL

heater core

1шт.

33

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

D120613

CLAMP,20mm ID

heater tubes, if used

1шт.

35

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self locking, plated, 3/8" - 16 NC

1шт.

36

187-460

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW hex head, indented hex washer head, slotted, black, No. 10 - 16 NC x 1/2"

2шт.

37

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

A42610

LARGE HOSE

HOSE bulk, 5/8" (16 mm) ID x 1" (25 mm) O.D. x 50 ft (1524 cm) long

1шт.
