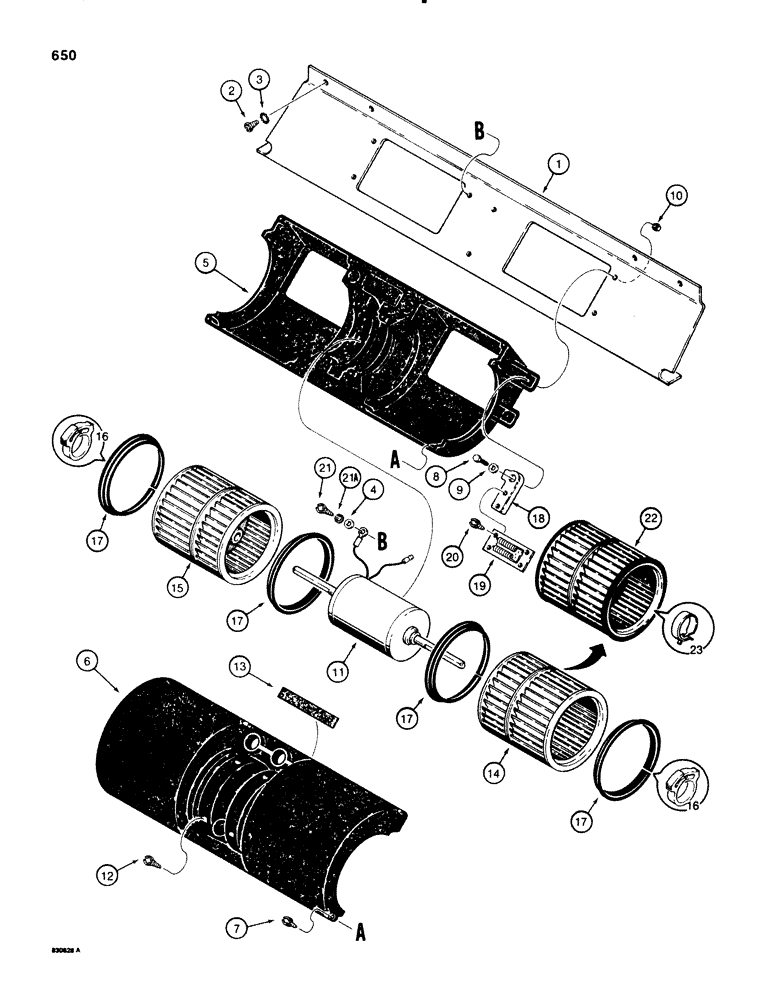

Запчасти Case 580SE (650) - CAB BLOWER (09) - CHASSIS/ATTACHMENTS

1

F45208

BRACKET

blower mounting

1шт.

2

187-1903

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW hex head, self tapping, plated, No. 12 - 24 NC x 1/2", Replaces No. 10 screw used on some models

4шт.

3

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, , Replaces No. 10 washer used on some models Ext Tooth, #12

4шт.

4

195-513

WASHER,#10

flat, plated, No. 10

3шт.

5

F64740

HOUSING

fans, lower

1шт.

6

F64741

HOUSING

fans, upper

1шт.

7

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW pan head, self tapping, plated, No. 8 - 16 x 3/4"

8шт.

8

163-13

SCREW,Hex, #10 - 24 x 3/4"

machine, hex head, plated, No. 10 - 24 NC x 3/4"

4шт.

9

195-513

WASHER,#10

flat, plated, No. 10

4шт.

10

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

11

F96901

MOTOR, ELECTRIC

MOTOR blower, 12 volt

1шт.

Ref #11 F96901 blower motor Some units may have A176906 blower motor, # on motor is 7231FB12V8434 overall length 13 15/16", O.D. motor 3.560"

1шт.

12

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW pan head, self tapping, plated, No. 8 - 16 x 1"

4шт.

13

REF

INSTRUCTION

SEAL foam, upper fan housing, 4" (102 mm) long, cut from F64119 bulk, see below

1шт.

14

F45020

BLOWER,Fan, RH

FAN blower, right hand, with offset hub, uses plastic clamp, Ref. 16, if used

1шт.

15

F45021

BLOWER,Fan

FAN blower, left hand, with offset hub, uses plastic clamp, if used

1шт.

16

F64815

CLAMP

plastic, fan retaining, if used

2шт.

17

F64739

RING

plastic, fan retaining

4шт.

18

F66204

BRACKET

resistor mounting

1шт.

19

F44900

RESISTOR

blower

1шт.

20

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW pan head, self tapping, plated, No. 8 - 16 x 3/4"

2шт.

21

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW hex washer head, slotted, self tapping, plated, No. 10 - 16

3шт.

21a

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

3шт.

22

F64935

BLOWER,Fan

FAN blower, with centered hub, uses Ref. 22 steel clamp, if used

2шт.

23

F64936

CLAMP

steel spring, if used

2шт.

F64119

SEALING STRIP

SEAL foam, bulk roll, 100 ft. (3048 cm) long

1шт.
