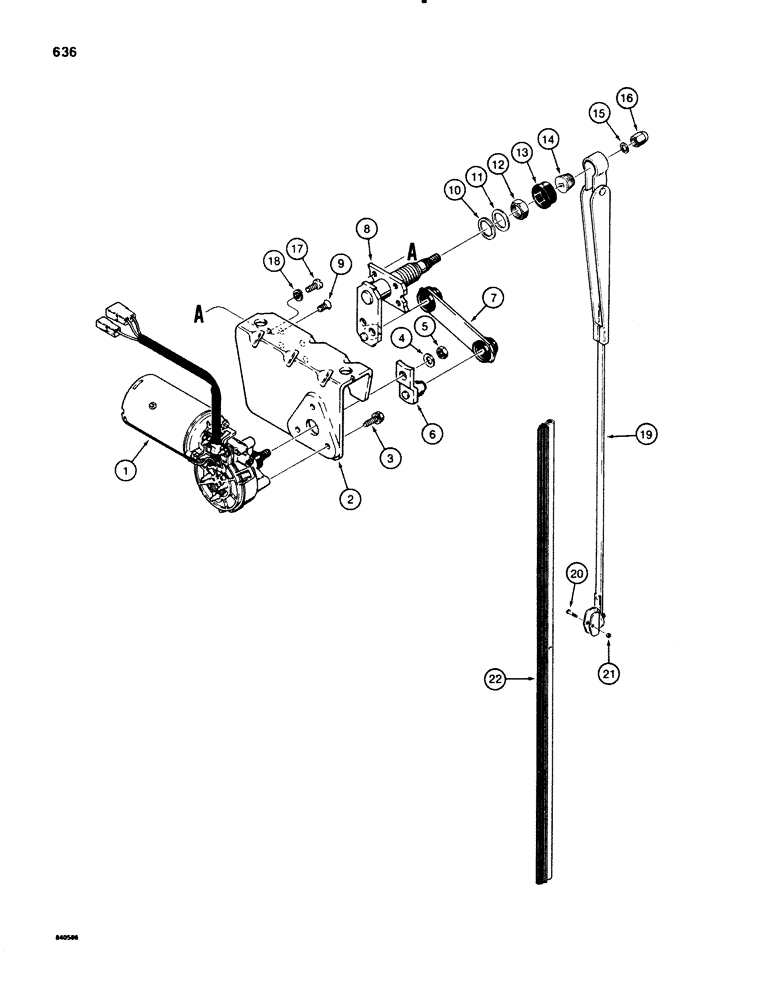

Запчасти Case 580SE (636) - CAB FRONT WINDSHIELD WIPER, ROBERT BOSCH PARTS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

MOTOR AND BRACKET ASSEMBLY, complete, front windshield wiper, 12 volt, Robert Bosch, for ordering information See Figure 634, Includes: Ref. 1 - 16

1шт.

1

F96890

WIPER MOTOR

MOTOR windshield wiper, 12 volt, Robert Bosch

1шт.

2

N8359

SUPPORT

BRACKET windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW AND WASHER special, motor to bracket

3шт.

4

N8361

SPRING WASHER

bent, special

1шт.

5

L112090

NUT

hex, special, 8 mm

1шт.

6

N8360

SUPPORT

ARM drive

1шт.

7

N9089

DRAG LINK

LINK wiper

1шт.

8

N9090

WIPER BLADE

SHAFT pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

special, pivot shaft to bracket

4шт.

10

N6749

WASHER

fiber

1шт.

11

N6750

WASHER

steel

1шт.

12

N6751

NUT

shaft

1шт.

13

N6752

CAP

shaft, rubber

1шт.

14

N6753

BLOCK DRIVER

DRIVER knurled

1шт.

15

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

16

N6754

NUT

DOME NUT special

1шт.

17

182-548

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

machine, pan head slotted, plated, 1/4" - 28 NF x 3/8"

2шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

19

F44928

WIPER

ARM windshield wiper, 22" (559 mm) long, Includes: Ref. 20 and 21

1шт.

20

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

machine, pan head slotted, plated, No. 5 - 40 NC x 1/2"

1шт.

21

129-14

NUT,#5-40

1шт.

22

F43938

WIPER BLADE

BLADE windshield wiper, 22" (559 mm) long

1шт.
