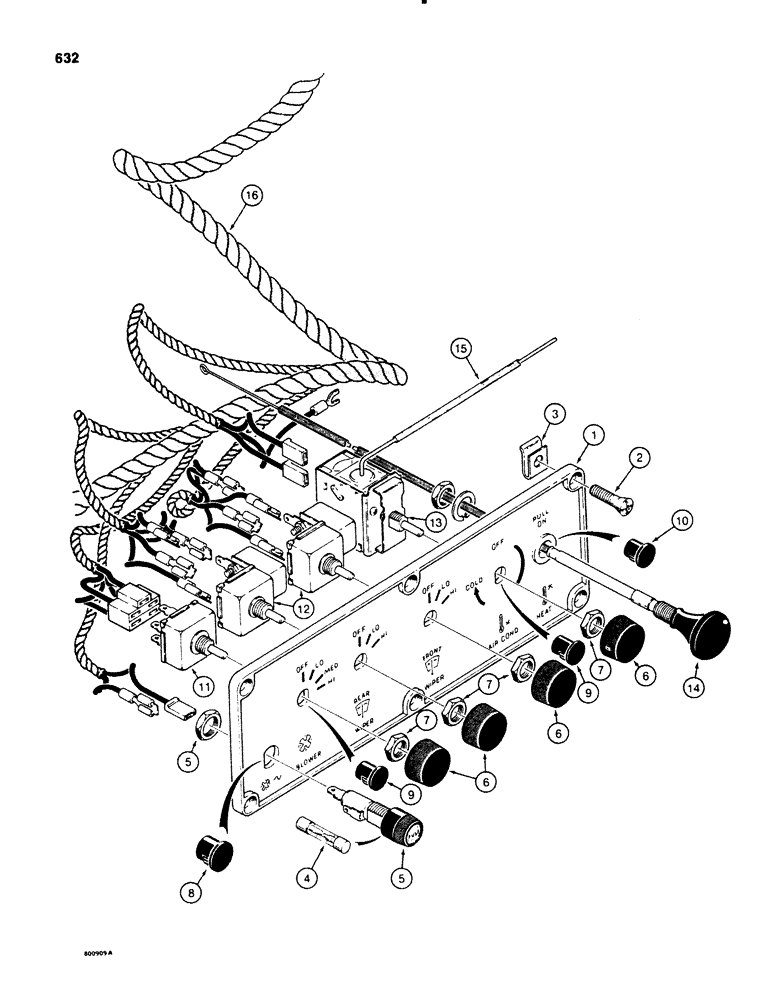

Запчасти Case 580SE (632) - CAB CONTROL PANEL AND WIRING (09) - CHASSIS/ATTACHMENTS

1

F44727

PANEL ASSY.

PANEL control

1шт.

2

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW oval Phillips head, self tapping, plated, No. 10 - 16 x 3/4"

6шт.

3

131-861

SPRING NUT,Tinn, U, #10-24

6шт.

4

223-27

FUSE,20 Amp, Type 3AG

20 amp, 3AG20

1шт.

5

A22874

HOLDER

fuse

1шт.

6

A42578

KNOB

switch, use as required

2-4шт.

Ref #6 A42578 knob Order part nbr 111282C1 knob

1шт.

7

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

retaining, switch, use as required

2-4шт.

8

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

1шт.

9

353-403

PLUG,Dome, .437" hole, Nylon

If used Dome, .437" hole, Nylon

1-3шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

If used Dome, .375" hole, Nylon

1шт.

11

A42622

SWITCH

blower

1шт.

12

A42660

SWITCH

front and rear windshield wipers

2шт.

13

L73646

SWITCH

air conditioner

1шт.

14

F44755

CABLE

heat control

1шт.

15

F44879

TUBE,0.12" ID x 0.17" OD x 20" L

from air conditioner switch

1шт.

16

F45224

HARNESS

cab, See Figure 128, Ref. 21 for tractor connecting harness

1шт.
