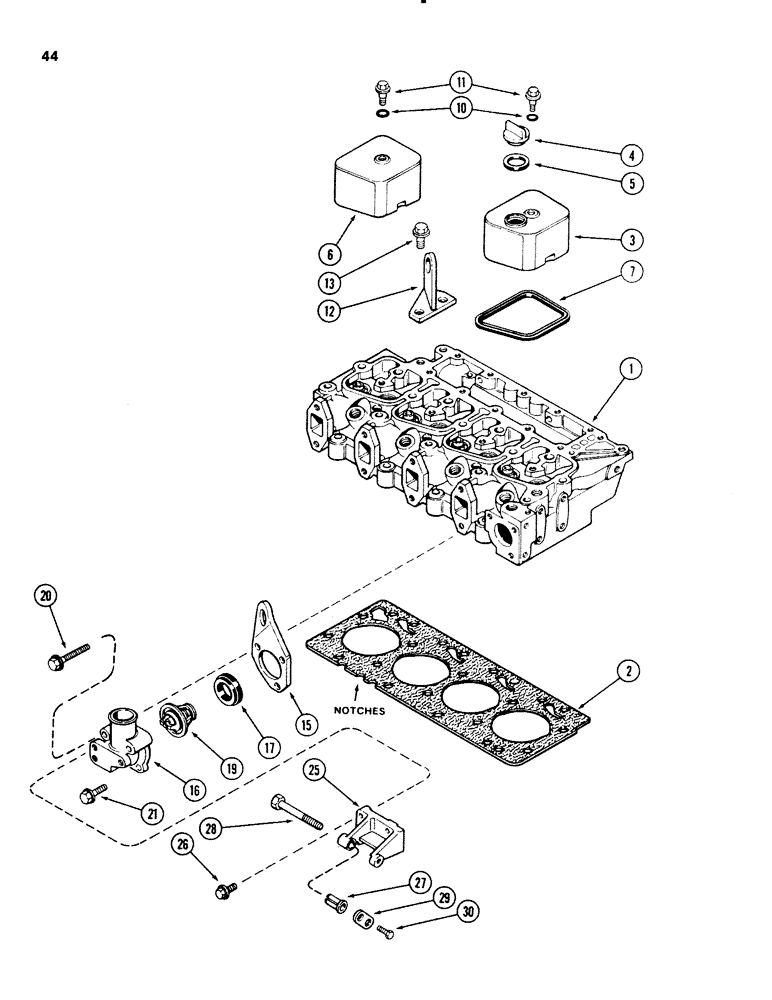

Запчасти Case 580SE (044) - CYLINDER HEAD COVERS, 4T-390 AND 4-390 DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, engine, See Figure 46

1шт.

2

J907054

GASKET

cylinder head, 0.040 inch (1 mm) over bore, standard thickness

1шт.

no marking = J907054 gasket

1шт.

2

J907055

CYLINDER HEAD GASKET

cylinder head, 0.040 inch (1 mm) over bore, 0.010 (0.25 mm) thickness, 2 Notches

1шт.

X = J907055 gasket

1шт.

2

J907056

CYLINDER HEAD GASKET

cylinder head, 0.040 inch (1 mm) over bore, 0.020 (0.50 mm) thickness, 3 Notches

1шт.

XX = J907056 gasket

1шт.

3

NSS

NOT SOLD SEPARAT

COVER rocker and oil fill, front, Order J902604, Reference No. J902605

1шт.

4

J901895

CAP

oil filler, If equipped

1шт.

5

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

RING sealing, If equipped

1шт.

6

J902604

COVER

rocker

4шт.

7

J902666

GASKET

SEAL rocker cover

4шт.

10

J901837

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

O RING cover bolt

4шт.

11

J907049

BOLT,Hex

hex flange head, M8 x 21.25 mm

4шт.

Ref #11 J907049 bolt Used on the valve

1шт.

covers with the raised boss, ser nbr

1шт.

44173452 and later. To SN 44180997 they also used a J900269 washer under the capscrew

1шт.

Prior to SN 44173451 used bolt J902375, SN

1шт.

REF. 11 ON SOME VERY EARLY UNITS, THE BOLT WAS J902375, M8X1.25X13mm LONG THD. IF UNIT HAS THESE BOLTS, THE SUPPORTS REF. 22 FIGURE 46 #J907048 SHOULD BE CHANGED TO ACCOMODATE THE NEW BOLTS.

1шт.

12

J903170

CARRIER

BRACKET lifting, rear

1шт.

13

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

hex flange head, M12 x 25

2шт.

15

J903757

BRACKET

lifting, front

1шт.

16

J903756

HOUSING

thermostat

1шт.

17

J903301

GASKET

housing

1шт.

19

J906700

THERMOSTAT

water, 95 degree C, 203 degree F

1шт.

20

J903096

FLANGE BOLT,Hex, M8 x 70mm, Cl 8.8

BOLT hex flange head, M8 x 70 mm

2шт.

21

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

BOLT hex flange head, M8 x 35 mm

1шт.

25

J908774

SUPPORT

alternator mounting, Replaces J903086

1шт.

26

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex flange head, M8 x 25 mm

3шт.

27

J902469

SPACER

alternator mounting, If equipped

1шт.

28

813-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

hex, M10 x 100 mm

1шт.

29

J903089

SUPPORT

BRACE alternator mounting

1шт.

30

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

hex, M8 x 25 mm

1шт.
