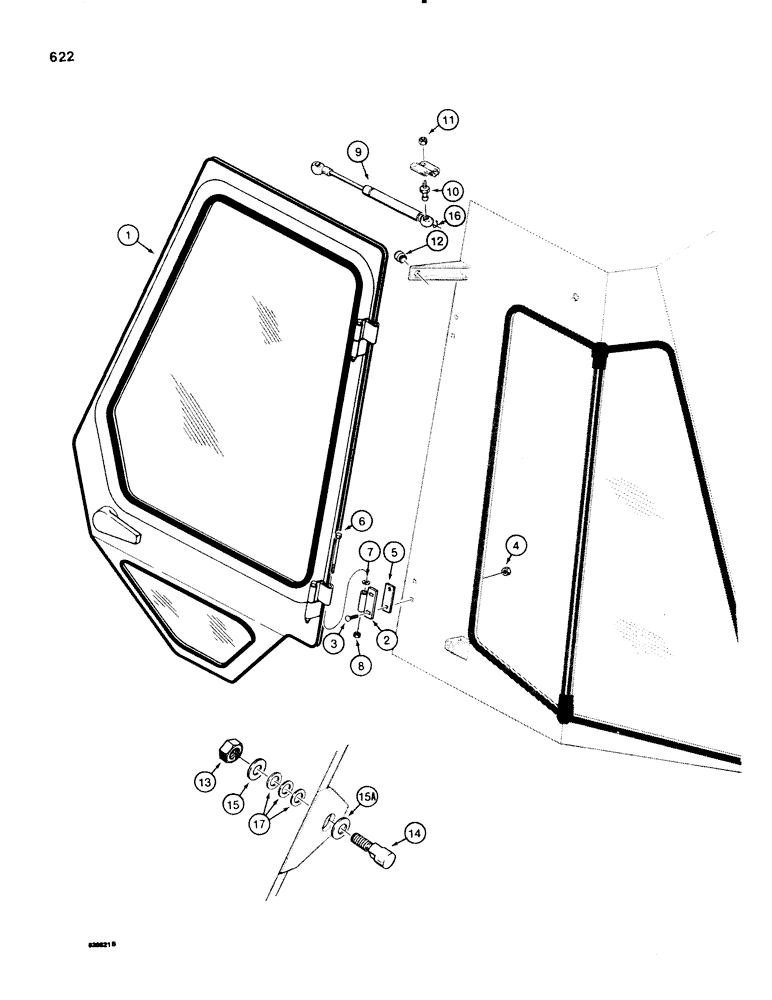

Запчасти Case 580SE (622) - CAB DOOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

DOOR cab, See Figure 620

1шт.

2

F44868

HINGE

door

2шт.

3

111-255

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5

4шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self locking, plated, 5/16" - 18 NC

4шт.

5

F43257

PLATE

SPACER door hinge

2шт.

6

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

7

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

thrust, hinge

2шт.

8

131-203

LOCK NUT,3/8"-16, GB, LH

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

9

F44881

CYLINDER ASSY.

CYLINDER door, with steel ball socket ends, Replaces cylinders with plastic ends used in production on some models

1шт.

10

F44882

BALL

STUD ball, cylinder

2шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self locking, plated, 5/16" - 18 NC

2шт.

12

L60224

BUMPER

rubber, door stop

1шт.

13

131-1129

LOCK NUT,7/16"-14, GA

NUT hex, self locking, plated, 7/16" - 14 NC

1шт.

14

F45073

PIN

STRIKER door latch

1шт.

15

195-2029

WASHER,7/16" x 1 1/4" x .134"

flat, plated, 3/8" bolt size, 7/16" ID x 1-1/4" O.D. x 1/8" thick

1шт.

15a

F44748

SPRING WASHER

BELLEVILLE SPRING next to door striker, Replaces flat washer used in production on some models

1шт.

16

F44883

CLIP,DIN 71805 - S10

lock, ball stud, used on door cylinders with steel ball socket ends, if used

2шт.

17

195-2207

WASHER,7/16" x 1 1/4" x .065"

flat, plated, 3/8" bolt size, 7/16" ID x 1-1/4" O.D. x 1/16" thick

3шт.
