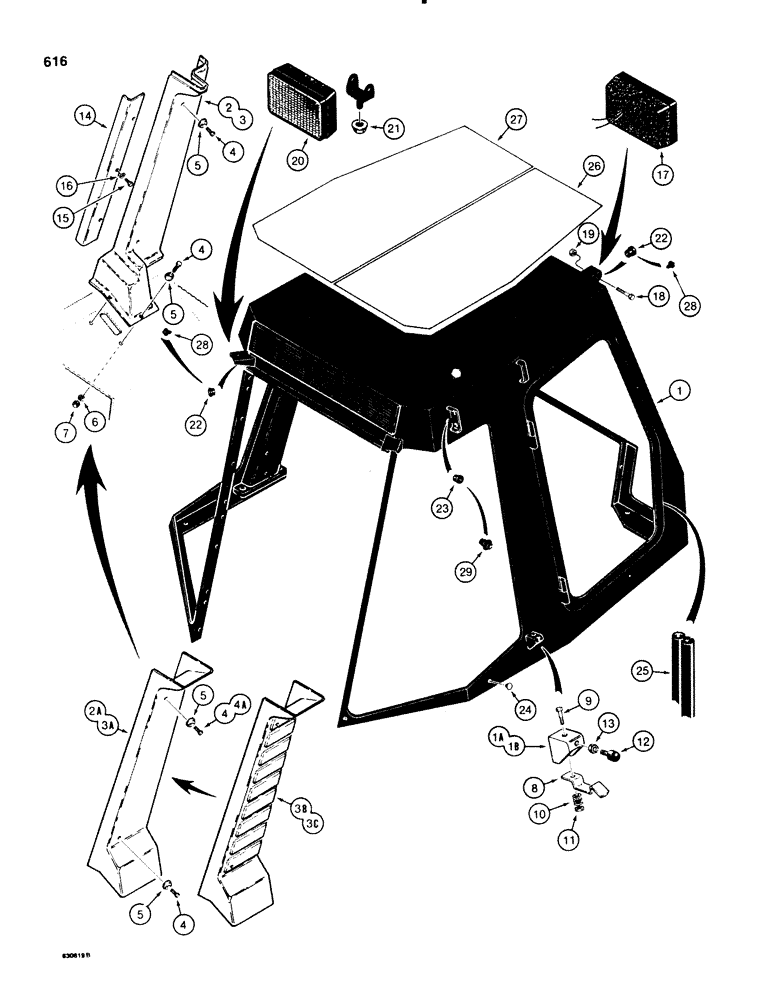

Запчасти Case 580SE (616) - CAB FRAME AND LAMPS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME cab, Includes: Ref. 1A and 1B

1шт.

The Part Number for the Frame Weldment is F97329.

1шт.

1a

F97010

BRACKET

window latch, right hand

1шт.

1b

F97011

BRACKET

window latch, left hand

1шт.

2

D123200

COVER

plastic, right hand, no longer used, order D126948 cover

1шт.

2a

D126948

MOLDING

COVER plastic, right hand

1шт.

3

D123201

PANEL

COVER plastic, left hand, no longer used, order D126949 cover

1шт.

3a

D126949

GUARD

COVER plastic, left hand

1шт.

3b

D126946

COVER

padded, right hand, optional deluxe interior

1шт.

3c

D126947

COVER

padded, left hand, optional deluxe interior

1шт.

4

179-160

SCREW,Cross Oval Hd, 1/4" - 20 x 3/4"

machine, oval Phillips head, slotted, black, 1/4" - 20 NC x 3/4", used without padded covers

4-8шт.

4a

179-168

SCREW,Cross Oval Hd, 1/4" - 20 x 1"

machine, oval Phillips head, slotted, black, 1/4" - 20 NC x 1", used with padded covers

4шт.

5

D91156

WASHER

special, plated

4-8шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

4шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, If used

4шт.

8

F42772

LATCH

BRACKET window latch

2шт.

9

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

10

D36669

SPRING

bracket

2шт.

11

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

12

F44935

BUMPER

window

2шт.

13

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

14

F44766

COVER

metal, heater and air conditioner lines

2шт.

15

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Center hole only Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

16

195-518

WASHER,1/4", SAE

flat, plated, 1/4", center hole only

2шт.

17

F96838

LAMP

ASSEMBLY, front driving, used without hinge bracket, See Figure 132

2шт.

18

113-165

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 2

SPREADER, , Replaces 2" long hex flange head bolt used on some models Hex, 5/16"-18 x 2 1/4", G2

2шт.

19

131-205

LOCK NUT,5/16"-18

NUT hex, self locking, plated, 5/16" - 18 NC, Replaces flange type nut used on some models

2шт.

20

F96838

LAMP

ASSEMBLY, rear flood, used with hinge bracket, See Figure 132

2шт.

21

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

hex flange type, special locking, plated, 1/2" - 13 NC

2шт.

22

353-700

BUSHING

GROMMET, 3/8" (9.5 mm) hole size, front and rear lamps, may be Replaced with molded grommet, Ref. 28

4шт.

23

353-704

GROMMET

3/4" (19 mm) hole size, side lamp wires, if used

2-4шт.

23

353-486

GROMMET

1-1/2" (38 mm) hole size, side lamp wires, if used

2шт.

24

353-402

PLUG,Dome, .375" hole, Nylon

Frame Dome, .375" hole, Nylon

2шт.

25

REF

INSTRUCTION

SEAL right hand window, cut from F43086

1шт.

26

F44914

DECAL

SEAL white vinyl, top of roof, heat deflection, used on models with air conditioning, right hand

1шт.

27

F44915

DECAL

SEAL white vinyl, top of roof, heat deflection, used on models with air conditioning, left hand

1шт.

28

R52617

PLUG

GROMMET molded, 3/8" (9.5 mm) hole size, on lamp harness at cab frame, front and rear lamps, if used

4шт.

29

F45451

PLUG

GROMMET molded, 3/4" (19 mm) hole size, on lamp harness at outer cab frame, stop and tail and flasher lamps, if used

2шт.

F43086

SEAL

bulk, 100 ft (3048 cm long

1шт.
