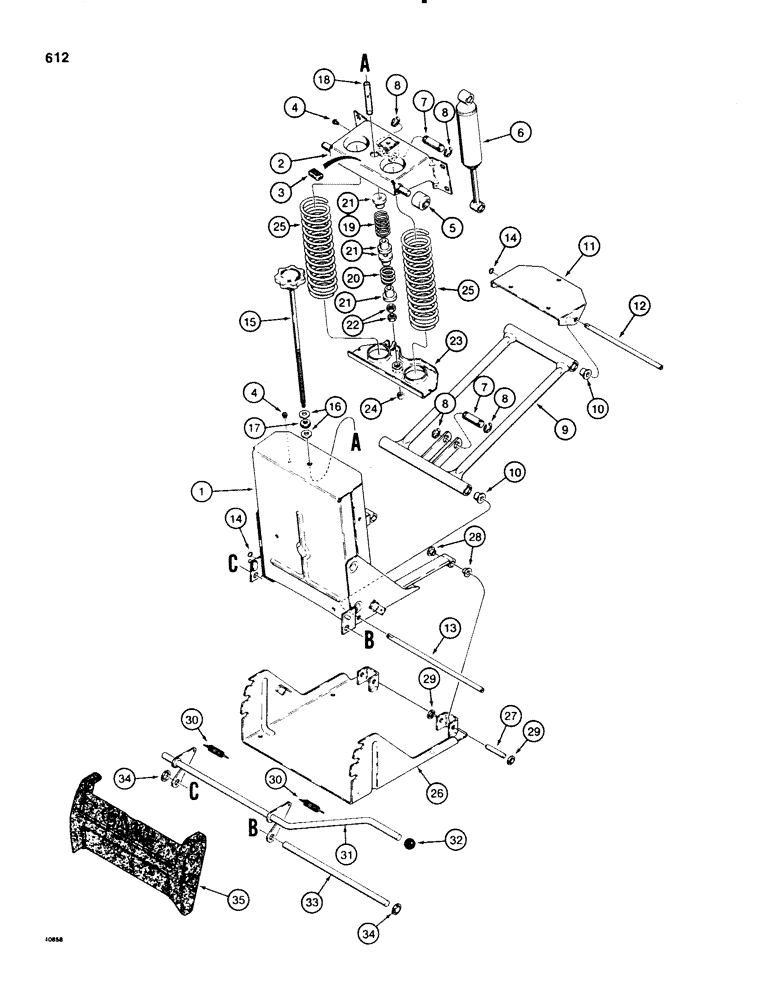

Запчасти Case 580SE (612) - D127368 SUSPENSION SEAT ADJUSTER ASSEMBLY, USED WITH OPTIONAL DELUXE INTERIOR SEATS (09) - CHASSIS/ATTACHMENTS

D127368

ADJUSTER

ASSEMBLY suspension seat, used with D127369 seat support on Figure 608 and D127366 or D127367 seat on Figure 602, Includes: Ref. 1 through 35

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING adjuster assembly

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET springs, upper

1шт.

3

N8484

INSULATOR BLOCK

BUMPER rubber

1шт.

4

N8487

RIVET

plastic, yellow, weight indicator

2шт.

5

N8500

ROLLER

upper bracket, seat adjustment

2шт.

6

N8488

SHOCK ABSORBER

adjuster assembly

1шт.

7

N8485

AXLE PIN

PIN shock absorber mounting

2шт.

8

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , pin #62, .480" Dia, E-Type

4шт.

9

NSS

NOT SOLD SEPARAT

ARM seat adjuster, Includes: Ref. 10

1шт.

10

N8527

BUSHING

arm pivot

4шт.

11

N8489

BRACKET

seat pivot, front

1шт.

12

N8490

SHAFT

seat adjuster arm, front

1шт.

13

N8492

SHAFT

seat adjuster arm, rear

1шт.

14

G46146

SNAP RING,#37, Ext

Ring, Snap, , shaft, seat adjuster arm #37, Ext

2шт.

15

N8503

ADJUSTER

seat, screw with knob

1шт.

16

N8502

WASHER

THRUST WASHER adjuster knob

2шт.

17

F13537

THRUST BEARING

adjuster knob

1шт.

18

N8501

SPACER

vinyl, seat adjuster

1шт.

19

N8496

VALVE SPRING

SPRING seat adjuster, upper

1шт.

20

N8494

VALVE SPRING

SPRING seat adjuster, lower

1шт.

21

N8495

RETAINER

springs, seat adjuster

4шт.

22

N8497

NUT

special, seat adjuster, upper

2шт.

23

NSS

NOT SOLD SEPARAT

BRACKET springs, lower

1шт.

24

131-1280

JAM NUT,Jam, 1/4"-20

NUT hex, jam, self locking, plated, 1/4" 20 NC

1шт.

25

N8498

VALVE SPRING

SPRING large, adjuster assembly

2шт.

26

NSS

NOT SOLD SEPARAT

BASE support

1шт.

27

N9243

AXLE PIN

PIN, Serial Range: housing-base

2шт.

28

N9241

BUSHING

base

4шт.

29

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8"

4шт.

30

N9240

VALVE SPRING

SPRING extension

2шт.

31

N9244

HANDLE

seat tilt

1шт.

32

NSS

NOT SOLD SEPARAT

KNOB handle

1шт.

33

N9242

SHAFT

, Serial Range: handle-housing

1шт.

34

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

2шт.

35

NSS

NOT SOLD SEPARAT

EMBLEM Case

1шт.
