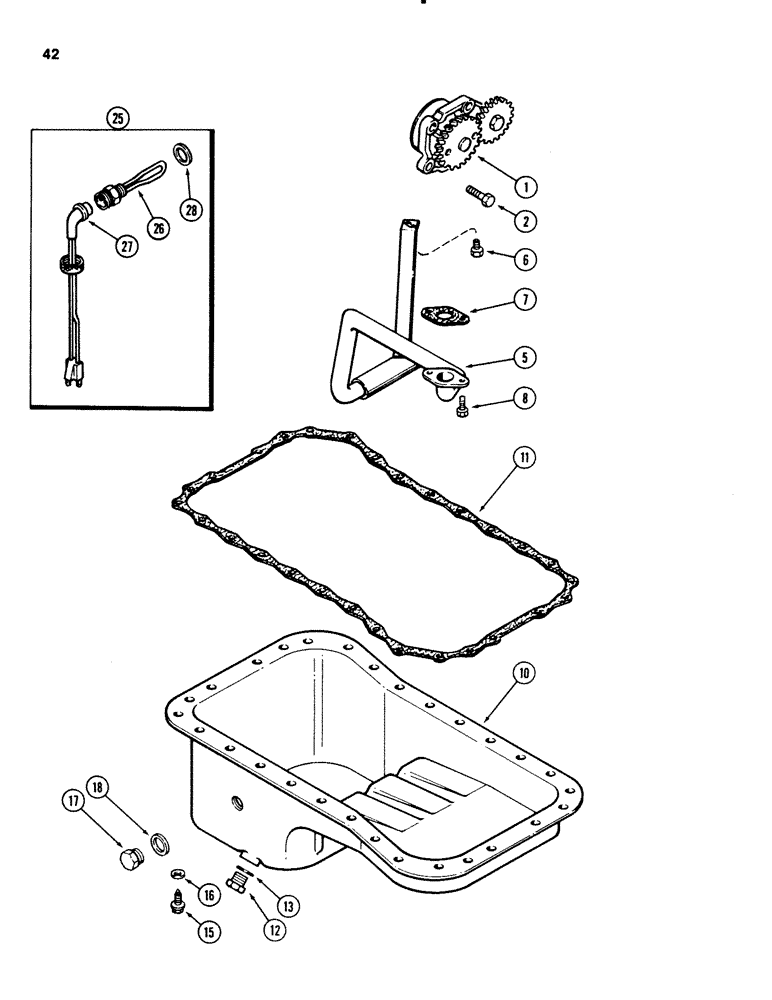

Запчасти Case 580SE (042) - OIL PUMP AND OIL PAN, 4T-390 AND 4-390 DIESEL ENGINE (02) - ENGINE

1

J906413

PUMP

PUMP ASSEMBLY, oil, engine, new

1шт.

1

JR906413

PUMP

PUMP oil, remanufactured, North America only

1шт.

1

JC906413

CORE-HYDRAULIC PUMP

RETURN NUMBER use this part no. to return pump core for credit

1шт.

1

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 30, 8.8, Full Thd

4шт.

5

J905206

TUBE,1" OD

TUBE suction, oil

1шт.

6

J901235

BOLT

BOLT hex flange head, M8 x 12 mm

1шт.

7

J905468

GASKET

GASKET suction tube Replaces J900454

1шт.

Part of Gasket Kit, P/N A77482

1шт.

8

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, , mounting, tube Hex Flg, M8 x 16, 8.8, Full Thd

2шт.

10

J901049

PAN, ENGINE OIL

PAN, OIL PAN oil, engine

1шт.

11

J906027

OIL PAN GASKET SET

GASKET oil pan

1шт.

Part of Gasket Kit, P/N A77482

1шт.

12

J900215

PLUG

PLUG drain, oil

1шт.

13

J900216

PACKING RING

WASHER seal, drain plug

1шт.

Part of Gasket Kit, P/N A77482

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT, , Oil pan Hex, Flg Hd, M8 x 25, Spcl

28шт.

16

J907537

SPRING WASHER

WASHER spring

28шт.

17

J904386

PLUG

PLUG heater hole, M18

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER seal, heater plug

1шт.

A77482

KIT

KIT, gasket, oil pan, Includes: Ref. 7, 11, 13

1шт.

25

A77490

KIT

KIT, heater, engine oil, Includes: Ref. 26 - 27

1шт.

26

NSS

NOT SOLD SEPARAT

ELEMENT heater Order A77490, Reference No. J904380

1шт.

27

J905113

CABLE

CABLE heater electric

1шт.

28

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER heater sealing

1шт.
