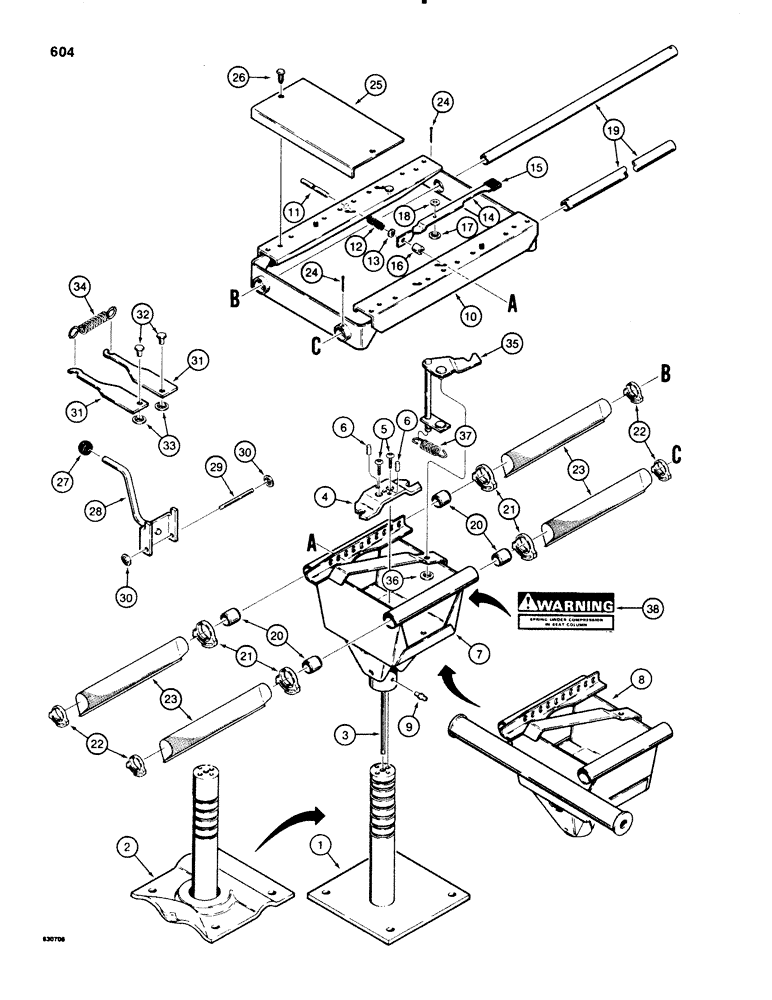

Запчасти Case 580SE (604) - D124103 AND D124104 STANDARD SEAT SUPPORTS (09) - CHASSIS/ATTACHMENTS

D124103

PEDESTAL

SUPPORT ASSEMBLY, seat, without tube for seat belt mounting

1шт.

D124104

SUPPORT ASSY.

SUPPORT ASSEMBLY, seat, with tube for seat belt mounting, Includes: Ref. 1 - 38 and P/N N6934

1шт.

1

NSS

NOT SOLD SEPARAT

BASE, D124103 seat support assembly, order Ref. 2

1шт.

2

N8385

BASE

D124104 seat support assembly

1шт.

3

N8340

SHAFT

seat support

1шт.

4

N8339

LATCH

seat swivel

1шт.

5

164-407

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

BOLT hex socket button head, plated, grade 8, 5/16" - 18 NC x 1/2"

2шт.

6

135-84

GROOVED PIN,5/16" x 3/4", Type A

PIN, GROOVED, 5/16" x 3/4", Type A

2шт.

7

N6968

BRACKET

RISER, D124103 seat support, without tube

1шт.

8

N6947

SUPPORT TUBE

RISER, D124104 seat support, with tube

1шт.

9

219-16

LUBE NIPPLE,5/16" NPTF

FITTING grease, straight, 5/16" drive

1шт.

10

N6959

SLIDE

seat

1шт.

11

N6958

PIN

slide release

1шт.

12

N8342

SPRING

slide release

1шт.

13

A27795

RING

spring retaining

1шт.

14

N6956

LEVER

HANDLE slide release, Includes: Ref. 15

1шт.

15

N13687

GRIP

vinyl

1шт.

16

N6957

SPACER

handle

1шт.

17

131-433

PUSH-ON NUT,Push, 1/4"

NUT push on type, 1/4"

1шт.

18

195-102

WASHER,1/4"

flat, plated, 1/4"

1шт.

19

N6943

TUBE,1.006" OD x 21.1" L

slide

2шт.

20

N6950

TUBE,1.015" ID x 1.1905" OD x 1"

BEARING slide tube

4шт.

21

N6966

CLAMP

plastic, 1-1/2" (38 mm) diameter

4шт.

22

N6965

CLAMP

plastic, 1" (25 mm) diameter

4шт.

23

N6967

BELLOWS

slide tube

4шт.

24

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

25

N6969

BRACKET

seat

1шт.

26

N6944

CLIP

bracket, nylon

2шт.

N6934

TUBE

KIT, handle, seat height adjustment, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

KNOB handle

1шт.

28

NSS

NOT SOLD SEPARAT

HANDLE seat height adjustment

1шт.

29

NSS

NOT SOLD SEPARAT

SHAFT handle

1шт.

30

131-434

LOCK NUT,Push, 5/16"

NUT push on type, 5/16"

2шт.

31

N6963

LATCH

seat height adjustment

2шт.

32

N6964

PIN,9.53mm OD x 19.05mm L

latch

2шт.

33

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8"

2шт.

34

N6970

CATCH

SPRING latch, seat height adjustment

1шт.

35

D147776

LATCH

LEVER control, seat swivel, Replaced N6951

1шт.

36

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8"

1шт.

37

D145790

SPRING KIT

SPRING seat swivel, 2-3/8" (60 mm) long, Replaced N8341

1шт.

38

REF

INSTRUCTION

DECAL warning, seat spring compression, See Figure 670, Ref. 21

1шт.
