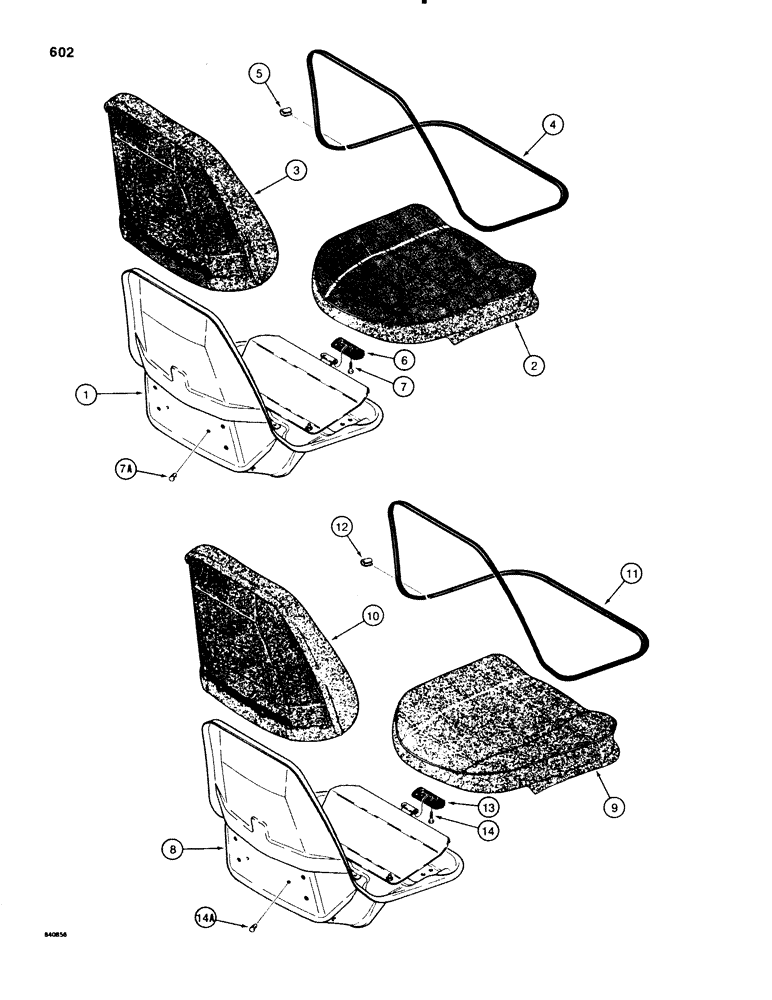

Запчасти Case 580SE (602) - SEAT ASSEMBLIES, OPTIONAL DELUXE INTERIOR, D127366 SUSPENSION SEAT ASSEMBLY, CAB MODELS ONLY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
D127366
SEAT ASSY.
SEAT ASSEMBLY, suspension, nylon weave, three position adjustable seat cushion, for seat support See Figure 608, for seat adjuster assembly, D127366 suspension seat assembly cab models only, See Figure 612, Includes: Ref. 1 - 7A
1шт.
1
NSS
NOT SOLD SEPARAT
SHELL seat, D127366 suspension seat assembly cab models only
1шт.
2
N9237
SUPPORT ASSY.
CUSHION seat, Includes N7802 clip kit, see below, D127366 suspension seat assembly cab models only
1шт.
3
N9238
CUSHION
BACKREST seat, Includes N7802 clip kit, see below, D127366 suspension seat assembly cab models only
1шт.
4
NSS
NOT SOLD SEPARAT
RETAINER strip, brown, cushion to shell, D127366 suspension seat assembly cab models only
1шт.
5
NSS
NOT SOLD SEPARAT
CLIP retainer, order N7802 clip kit, see below, D127366 suspension seat assembly cab models only
1шт.
6
N9239
HANDLE
cushion adjustment, D127366 suspension seat assembly cab models only
1шт.
7
182-579
SCREW machine, pan head slotted, plated, 1/4" - 20 NC x 7/8", D127366 suspension seat assembly cab models only
2шт.
7a
NSS
NOT SOLD SEPARAT
RIVET plastic, D127366 suspension seat assembly cab models only
2шт.
D127367
SEAT
ASSEMBLY, suspension, vinyl, three position adjustable seat cushion, for seat support See Figure 608, for seat adjuster assembly, See Figure 612, D127367 suspension seat assembly, Includes: Ref. 8 - 14A
1шт.
8
NSS
NOT SOLD SEPARAT
SHELL seat, D127367 suspension seat assembly
1шт.
9
N9258
CUSHION ASSY.
CUSHION seat, Includes N7802 clip kit, see below, D127367 suspension seat assembly
1шт.
10
N9259
BACKREST
seat, Includes N7802 clip kit, see below, D127367 suspension seat assembly
1шт.
11
NSS
NOT SOLD SEPARAT
RETAINER strip, brown, cushion to shell, D127367 suspension seat assembly
1шт.
12
NSS
NOT SOLD SEPARAT
CLIP retainer, order N7802 clip kit, see below, D127367 suspension seat assembly
1шт.
13
N9239
HANDLE
cushion adjustment, D127367 suspension seat assembly
1шт.
14
182-579
SCREW machine, pan head slotted, plated, 1/4" - 20 NC x 7/8", D127367 suspension seat assembly
2шт.
14a
NSS
NOT SOLD SEPARAT
RIVET plastic, D127367 suspension seat assembly
2шт.
345-44
ADHESIVE
pad retaining, in a can, 23 fl. ounces, (680 ml) not shown, D127367 suspension seat assembly
1шт.
N7802
CLIP
KIT, clip, D127367 suspension seat assembly, Includes: Ref. 5 clip or Ref. 12 clip above plus 6 additional narrow clips
1шт.
