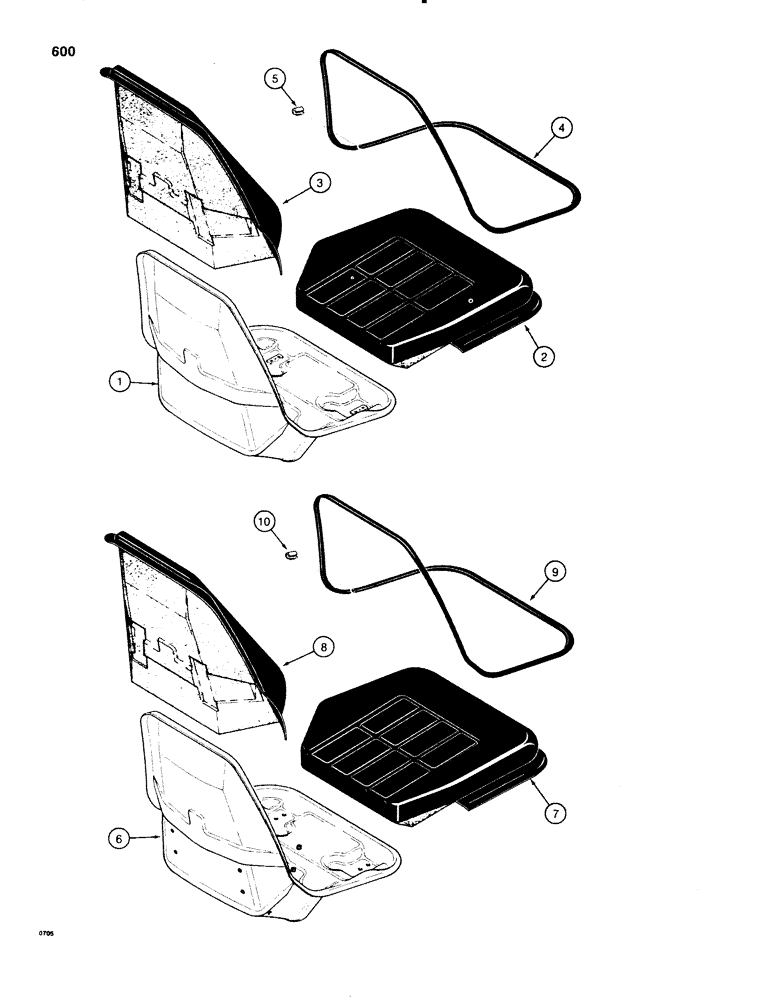

Запчасти Case 580SE (600) - SEAT ASSEMBLIES, D123196 STANDARD SEAT ASSEMBLY / D125246 SUSPENSION SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
D123196
SEAT ASSY.
SEAT ASSEMBLY, standard, for seat support See Figure 604, D123196 standard seat assembly, Includes: Ref. 1 - 5
1шт.
1
NSS
NOT SOLD SEPARAT
SHELL seat, D123196 standard seat assembly
1шт.
2
N8462
CUSHION
seat, Includes N7802 clip kit, see below, D123196 standard seat assembly
1шт.
3
N8461
CUSHION
backrest, Includes N7802 clip kit, see below, D123196 standard seat assembly
1шт.
4
N14614
GASKET
RETAINER strip, cushion to shell, D123196 standard seat assembly
1шт.
Ref. 4 and 9 NSS retainer This is part nbr N14614 edge trim.
1шт.
5
NSS
NOT SOLD SEPARAT
CLIP retainer, order N7802 clip kit, see below, D123196 standard seat assembly
1шт.
D125246
SEAT
ASSEMBLY, suspension, vinyl, without three position adjustable seat cushion, for seat support See Figure 606, for seat adjuster assembly, See Figure 610, D125246 suspension seat assembly, Includes: Ref. 6 - 10
1шт.
See Figure 602 for optional deluxe interior suspension seat assemblies.
1шт.
6
NSS
NOT SOLD SEPARAT
SHELL suspension seat, D125246 suspension seat assembly
1шт.
7
N8462
CUSHION
seat, Includes N7802 clip kit, see below, D125246 suspension seat assembly
1шт.
8
N8461
CUSHION
backrest, Includes N7802 clip kit, see below, D125246 suspension seat assembly
1шт.
9
N14614
GASKET
RETAINER strip, cushion to shell, D125246 suspension seat assembly
1шт.
Ref. 4 and 9 NSS retainer This is part nbr N14614 edge trim.
1шт.
10
NSS
NOT SOLD SEPARAT
CLIP retainer, order N7802 clip kit, see below, D125246 suspension seat assembly
1шт.
345-44
ADHESIVE
pad retaining, in a can, 23 fl. ounces (680 ml) not shown, D125246 suspension seat assembly
1шт.
N7802
CLIP
KIT, clip, D125246 suspension seat assembly, Includes: Ref. 5 clip or item 10 clip above plus 6 additional narrow clips
1шт.
Выбрано товаров: 17
