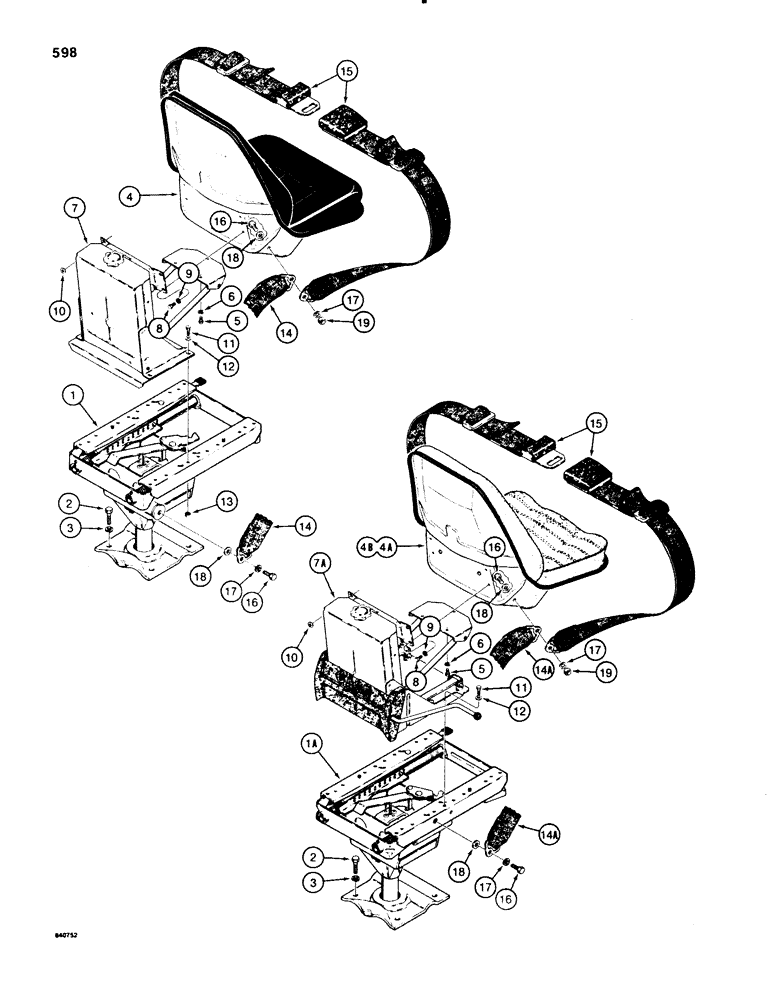

Запчасти Case 580SE (598) - SUSPENSION SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D123289

PEDESTAL

SUPPORT ASSEMBLY, suspension seat, See Figure 606, used with D123290 adjuster only

1шт.

1a

D127369

SUPPORT

ASSEMBLY, suspension seat, See Figure 608, used with D127368 adjuster only

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

D125246

SEAT

ASSEMBLY, suspension, vinyl, See Figure 600 for identification

1шт.

4a

D127367

SEAT

ASSEMBLY, suspension, vinyl, See Figure 602 for identification

1шт.

5

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

7

D123290

SUSPENSION

ADJUSTER ASSEMBLY, suspension seat, See Figure 610, used with D123289 seat support only

1шт.

7a

D127368

ADJUSTER

ASSEMBLY, suspension seat, See Figure 612, used with D127369 seat support only

1шт.

8

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

195-521

WASHER,5/16", SAE

flat, plated, 5/16", left hand side only

2шт.

11

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

12

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

4шт.

13

193-1009

NUT,Keps, w/LW, 5/16"-18

AND LOCK WASHER plated, 5/16" - 18 NC

4шт.

14

D123292

SAFETY BELT

SAFETY BELT, Support to seat, 13" (330 mm) long, Used with D123289 seat support only

2шт.

14a

D127382

SAFETY BELT

SAFETY BELT, Support to seat, 9-3/8" (238 mm) long, Used with D127369 seat support only

1шт.

15

D85816

SAFETY BELT

SEAT BELT, 3" (76 mm) wide

1шт.

16

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

4шт.

17

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

18

195-529

WASHER,7/16", SAE

flat, plated, 7/16"

4шт.

19

425-117

NUT,7/16"-20, G5

hex, plated, 7/16" - 20 NF

2шт.
