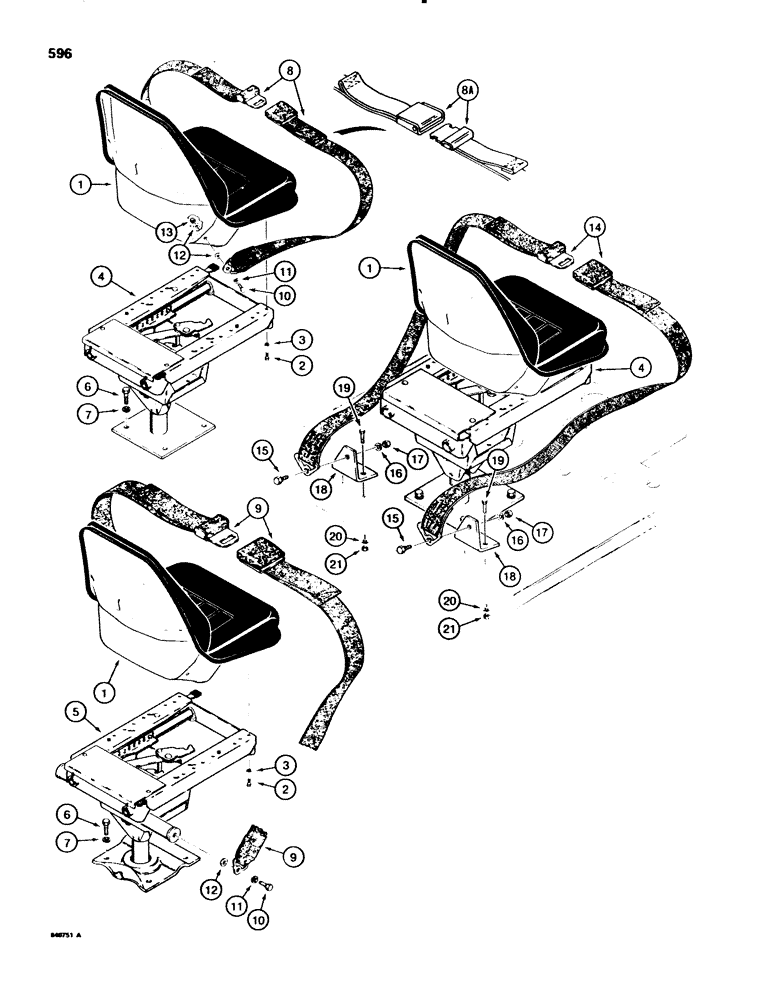

Запчасти Case 580SE (596) - STANDARD SEAT AND MOUNTING PARTS, CAB OR ROPS CANOPY MODELS (09) - CHASSIS/ATTACHMENTS

1

D123196

SEAT ASSY.

SEAT ASSEMBLY, standard, See Figure 600, standard seat and mounting parts

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Standard seat and mounting parts

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Standard seat and mounting parts 5/16"

4шт.

4

D124103

PEDESTAL

SUPPORT ASSEMBLY, standard seat, without tube for seat belt mounting, See Figure 604, if used, standard seat and mounting parts

1шт.

5

D124104

SUPPORT ASSY.

SUPPORT ASSEMBLY, standard seat, with tube for seat belt mounting, See Figure 604, if used, standard seat and mounting parts

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Standard seat and mounting parts Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Standard seat and mounting parts 1/2"

4шт.

8

D87964

SAFETY BELT

SEAT BELT, 2" (51 mm) wide, use with Ref. 4 seat support only, no longer used, order D133870 seat belt, standard seat and mounting parts

1шт.

8a

D133870

SAFETY BELT

SEAT BELT, 2" (51 mm) wide, with anti creep slides, use with Ref. 4 seat support only, if used, standard seat and mounting parts

1шт.

9

D85816

SAFETY BELT

SEAT BELT, 3" (76 mm) wide, use with Ref. 5 seat support only, if used, standard seat and mounting parts

1шт.

10

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

Standard seat and mounting parts Hex, 7/16"-20 x 1", G5, Full Thd

2шт.

11

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Standard seat and mounting parts 7/16"

2шт.

12

195-529

WASHER,7/16", SAE

flat, 7/16", two used with Ref. 5 seat support, four used with Ref. 4 seat support, standard seat and mounting parts

2-4шт.

13

425-117

NUT,7/16"-20, G5

hex, 7/16" - 20 NF, plated, used with Ref. 4 seat support only, standard seat and mounting parts

2шт.

14

D83760

SAFETY BELT

SEAT BELT, 3" (76 mm) wide, cab or rops canopy models only, floor mounted seat belt option used with D123196 seat and D124103 seat support

1шт.

15

F42236

STEP BOLT

BOLT shoulder, 7/16" - 20 NF x 1-1/4", cab or rops canopy models only, floor mounted seat belt option used with D123196 seat and D124103 seat support

2шт.

16

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Cab or ROPS canopy models only, floor mounted seat belt option used with D123196 seat and D124103 seat support 7/16"

2шт.

17

425-117

NUT,7/16"-20, G5

hex, plated, 7/16" - 20 NF, cab or rops canopy models only, floor mounted seat belt option used with D123196 seat and D124103 seat support

2шт.

18

D75008

BRACKET

mounting, seat belt, cab or rops canopy models only, floor mounted seat belt option used with D123196 seat and D124103 seat support

2шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Cab or ROPS canopy models only, floor mounted seat belt option used with D123196 seat and D124103 seat support Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Cab or ROPS canopy models only, floor mounted seat belt option used with D123196 seat and D124103 seat support 3/8"

4шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Cab or ROPS canopy models only, floor mounted seat belt option used with D123196 seat and D124103 seat support 3/8"-16, G5

4шт.
