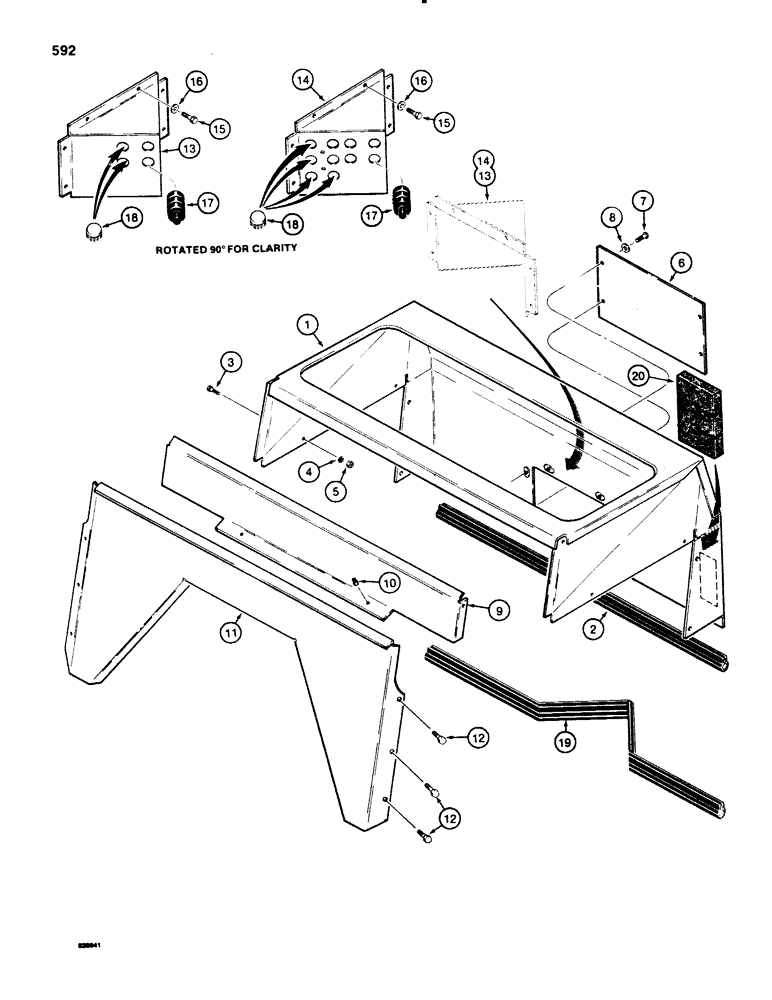

Запчасти Case 580SE (592) - REAR CLOSURE PANELS, CAB MODELS WITHOUT BACKHOE, SPECIAL (09) - CHASSIS/ATTACHMENTS

1

D125552

PANEL ASSY.

PANEL rear closure, rear closure panels cab models without backhoe

1шт.

2

REF

INSTRUCTION

SEAL rear closure panel, 36-7/8" (936 mm) long, cut from F43117 bulk, see below, rear closure panels cab models without backhoe

1шт.

Part of bulk Seal P/N F43117

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Rear closure panels cab models without backhoe

4шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Rear closure panels cab models without backhoe 5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

Rear closure panels cab models without backhoe 5/16"-18, G5

4шт.

6

D120292

COVER

PLATE rear closure panel, models without backhoe or three point hitch, rear closure panels cab models without backhoe

1шт.

7

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Rear closure panels cab models without backhoe Hex, 1/4"-20 x 1/2", G5, Full Thd

4шт.

8

195-102

WASHER,1/4"

flat, plated, , rear closure panels cab models without backhoe 1/4"

4шт.

9

D90553

PANEL

COVER inner, rear closure panel, special parts used with three point hitch

1шт.

10

L60224

BUMPER

window, special parts used with three point hitch

2шт.

11

D90547

PANEL

COVER outer, rear closure panel, special parts used with three point hitch

1шт.

12

121-135

FLANGE BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

BOLT, , Special parts used with three point hitch Hex Flg, 5/16"-18 x 3/4", G5, Full Thd

6шт.

13

D120199

PANEL ASSY.

COVER hoses, used on three point hitch models with single spool valve, special parts used with three point hitch

1шт.

14

D94046

PANEL ASSY.

COVER hoses, used on three point hitch models with four spool valve, special parts used with three point hitch

1шт.

15

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Special parts used with three point hitch Hex, 1/4"-20 x 1/2", G5, Full Thd

6шт.

16

195-102

WASHER,1/4"

flat, plated, , special parts used with three point hitch 1/4"

6шт.

17

D124404

BOOT

cover, 2 used on single spool valve, 6 used on four spool valve, special parts used with three point hitch

2-6шт.

18

205-52

HOLE PLUG BUTTON,1 1/8"

PLUG button, 1-1/8", steel, 2 used on single spool spool valve, 4 used on four spool valve, special parts used with three point hitch

2-4шт.

19

REF

INSTRUCTION

SEAL rear closure panel, 41" (1040 mm) long, cut from D80646 bulk, see below, used on three point hitch models only, special parts used with three point hitch

1шт.

Part of bulk Seal P/N D80646

1шт.

20

D74213

FOAM

SEAL foam, pressure sensitive adhesive one side, special parts used with three point hitch

1шт.

F43117

SEAL

bulk, 100 ft. (3048 cm) long, special parts used with three point hitch

1шт.

D80646

SEAL

bulk, 50 ft. (1524 cm) long, special parts used with three point hitch

1шт.
