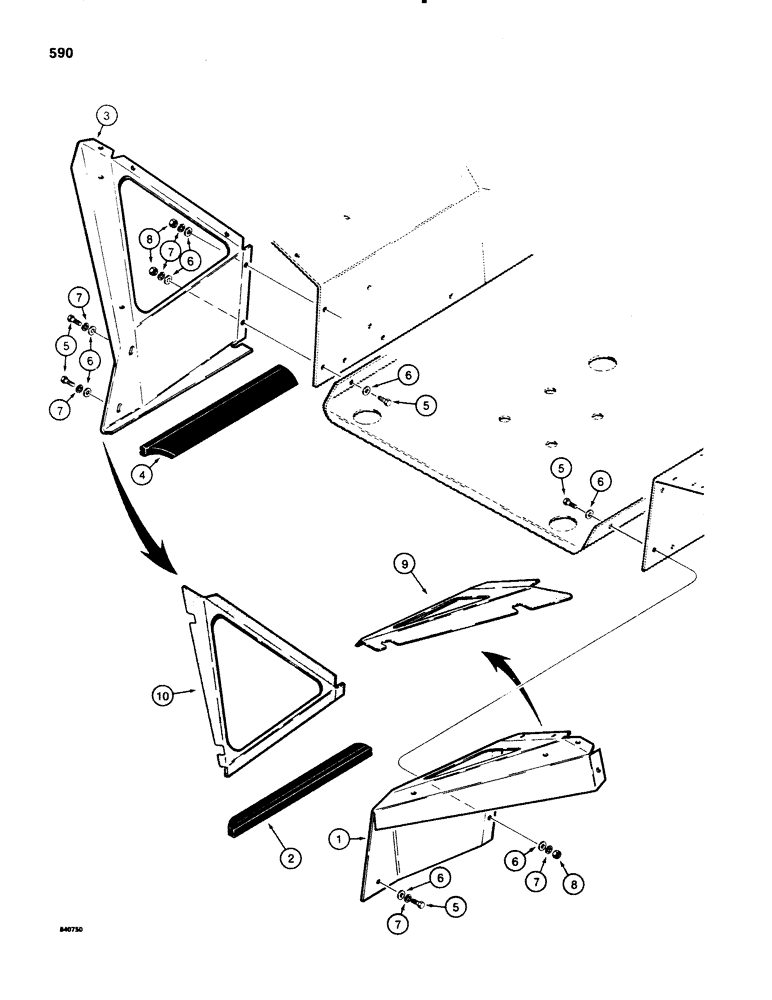

Запчасти Case 580SE (590) - REAR CLOSURE PANELS, CAB MODELS WITH BACKHOE (09) - CHASSIS/ATTACHMENTS

1

D88681

PANEL

side closure, right hand

1шт.

2

REF

INSTRUCTION

SEAL right hand panel, cut from D90976, see below

1шт.

3

D88827

PANEL

side closure, left hand

1шт.

4

REF

INSTRUCTION

SEAL left hand panel, cut from D90976, see below

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

14шт.

6

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

24шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

14шт.

8

9635082

NUT,5/16" - 18, Gr 5

10шт.

9

D126944

LINING

COVER right hand panel, optional deluxe interior

1шт.

10

D126945

MOLDING

COVER left hand panel, optional deluxe interior

1шт.

D90976

SEAL

bulk, 295" (7500 mm) long

1шт.
