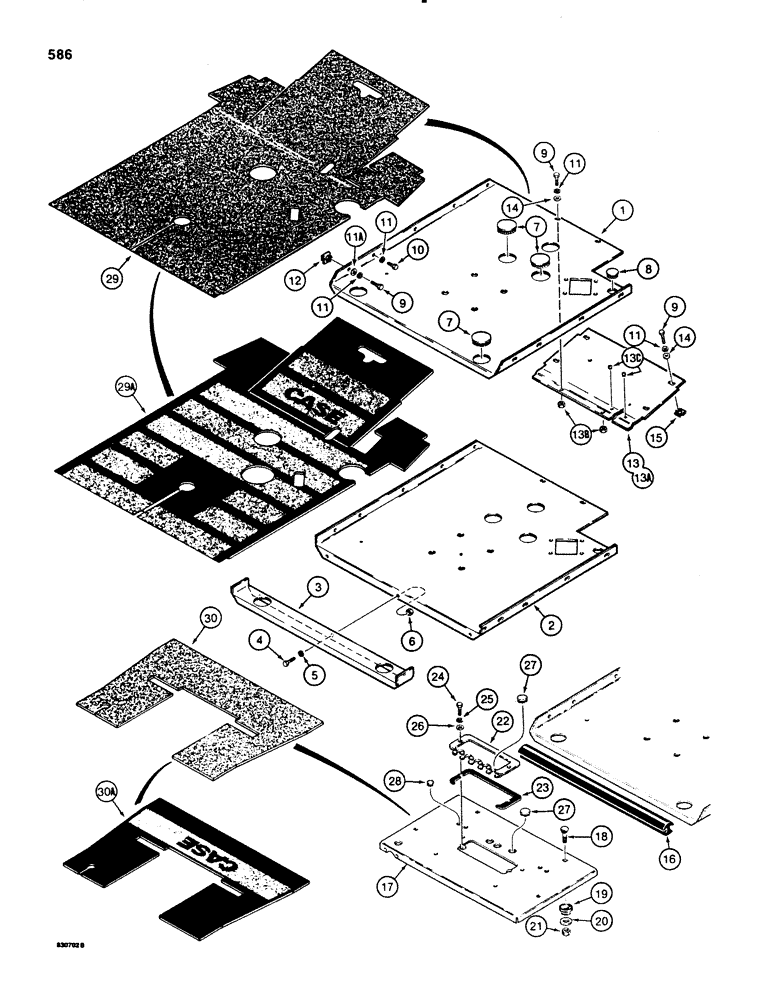

Запчасти Case 580SE (586) - FLOOR PLATES AND MATS (09) - CHASSIS/ATTACHMENTS

1

D120235

LARGE PLATE

PLATE floor, main, models without three point hitch

1шт.

2

D120264

PLATE

floor, main, models with three point hitch

1шт.

3

D91379

PLATE

floor, extension, models with three point hitch

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

6

9635082

NUT,5/16" - 18, Gr 5

3шт.

7

205-72

HOLE PLUG BUTTON,3"

PLUG button, , steel 3"

3шт.

8

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG button, 1-1/2"

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

14шт.

10

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

15шт.

11a

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

9шт.

12

131-636

SPRING NUT,J, Ret, 5/16"-18

j type, 5/16" - 18 NC

9шт.

13

D87604

FLOOR

PLATE floor, front, with clutch cutout switch mounting bracket, no longer used, for service order D126612 floor plate, D124618 switch and D126116 washer, See Fig. 120 for switch and washer

1шт.

13a

D126612

PLATE

floor, front, without clutch cutout switch mounting bracket, Includes: Ref. 13B and 13C

1шт.

13b

D126570

NUT

special, D126612 floor plate

2шт.

13c

D123827

NUT

special, D126612 floor plate

3шт.

14

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

6шт.

15

131-641

NUT

u type, 5/16" - 18 NC, Replaces j type nut on some models

4шт.

16

D90980

SEAL

main and backhoe floor plates

1шт.

17

D124433

PLATE

floor, backhoe

1шт.

18

12-832

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2", Gr 2, Full Thd

BOLT, 1/2" - 13 NC x 2"

4шт.

19

R29799

SHOCK ABSORBER

INSULATOR rubber, floor plate mounting

4шт.

20

B15606

WASHER

flat, retaining, 1/2"

4шт.

21

131-70

NUT,1/2"-13, GB

NUT hex, plated, 1/2" - 13 NC

4шт.

D121493

PLATE

AND GASKET backhoe control tower, plastic, if used, Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE backhoe control tower, plastic

1шт.

23

D121492

GASKET

sealing

1шт.

24

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

26

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

27

205-54

HOLE PLUG BUTTON,1 3/16"

PLUG button, 1-3/16", if used

2шт.

28

353-403

PLUG,Dome, .437" hole, Nylon

If used Dome, .437" hole, Nylon

4шт.

29

D123202

FLOOR MAT

MAT main floor plate, if used, no longer available, order D125825 mat

1шт.

29a

D125825

FLOOR MAT

MAT main floor plate, Case embossed, if used

1шт.

30

D123207

FLOOR MAT

MAT backhoe floor plate, if used, no longer available, order D125826 mat

1шт.

30a

D125826

FLOOR MAT

MAT backhoe floor plate, Case embossed, if used

1шт.
