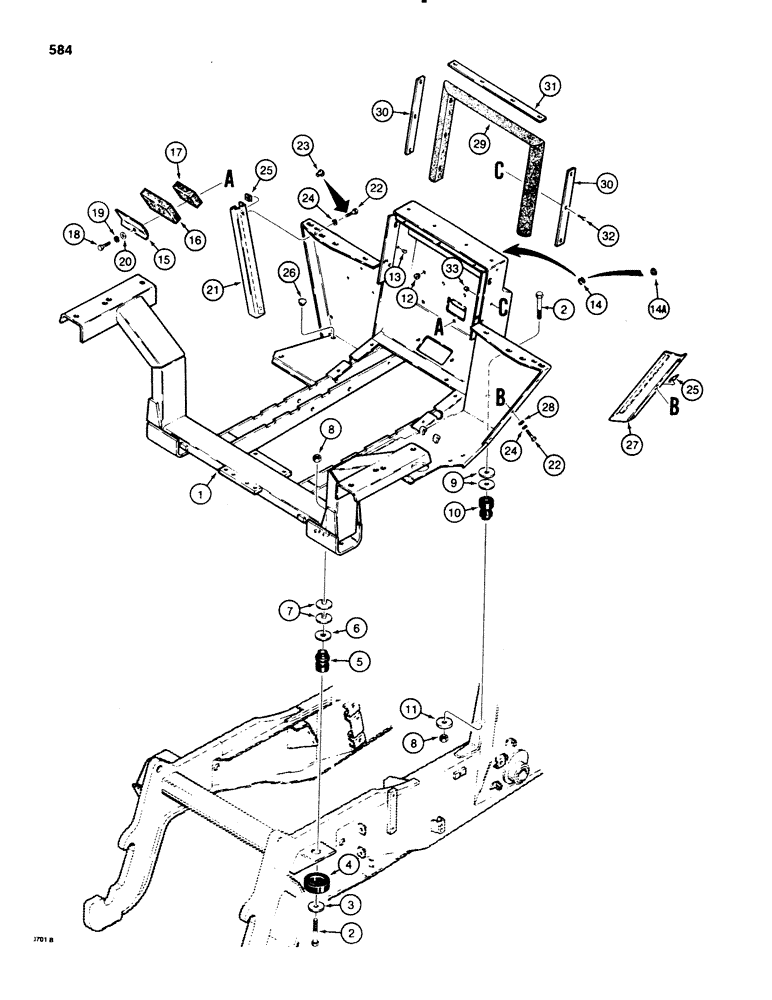

Запчасти Case 580SE (584) - OPERATORS COMPARTMENT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

D127612

FRAME

operators compartment

1шт.

2

113-2642

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

4шт.

3

D134263

WASHER

hardened, 3-15/16" (100 mm) OD, Replaces 2-3/4" (70 mm) OD washer on some models

2шт.

4

D120267

RUBBER

SHOCK ABSORBER pod limiter

2шт.

5

D89717

MOUNTING PARTS

INSULATOR frame mounting, rubber, rear

2шт.

6

D134265

WASHER

hardened, 2-3/4" (70 mm) OD

2шт.

7

D91658

WASHER

shim, 1/16" (2 mm) thick

1шт.

8

129-563

NUT,5/8"-11, G8

hex, grade 8, 5/8" - 11 NC

4шт.

9

D134265

WASHER

hardened, 2-3/4" (70 mm) OD

1шт.

10

D89717

MOUNTING PARTS

INSULATOR frame mounting, rubber, front

2шт.

11

D83682

WASHER

2-3/4" (70 mm) OD x 1/4" (6 mm) thick

2шт.

12

353-403

PLUG,Dome, .437" hole, Nylon

Used in firewall Dome, .437" hole, Nylon

1шт.

13

353-400

PLUG,Dome, .250" hole, Nylon

Used on cab models Dome, .250" hole, Nylon

10шт.

14

353-475

BUSHING

GROMMET snap, plastic, split, mechanical tachometer drive cable to firewall, Replaces rubber grommet on some models, if used

1шт.

14a

353-410

PLUG,Dome, .875" hole, Nylon

- nylon, 7/8", Used in place of split snap grommet on some models

1шт.

15

D83656

PLATE

COVER harness and cables from instrument cluster

1шт.

16

D83655

PAD

foam, self adhesive, 6-11/16" (170 mm) x 3-1/8" (80 mm)

1шт.

17

D83654

PAD

foam, self adhesive, 4" (100 mm) x 2-3/8" (60 mm)

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

1шт.

21

D87343

COVER

wiring and drain tube, left hand side, if used

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3-5шт.

23

205-75

PLUG,13/32"

button, steel, , used in place of Ref. 22 when Ref. 21 is not used 13/32"

10шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3-5шт.

25

131-636

SPRING NUT,J, Ret, 5/16"-18

j type, 5/16" - 18 NC

3-5шт.

26

353-408

PLUG,Dome, .750" hole, Nylon

nylon, 3/4", used on models without air conditioned cab

1шт.

27

D87342

COVER

wiring harness, right hand side

1шт.

28

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

3шт.

29

D91309

SEAL

firewall, used on models without cab

1шт.

30

D91132

PLATE

seal retaining, sides of firewall

2шт.

31

D91131

PLATE

seal retaining, top of firewall

1шт.

32

163-15

SCREW,Hex, #10 - 24 x 5/8"

machine, hex head, plated, No. 10 - 24 NC x 5/8"

10шт.

33

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

10шт.
