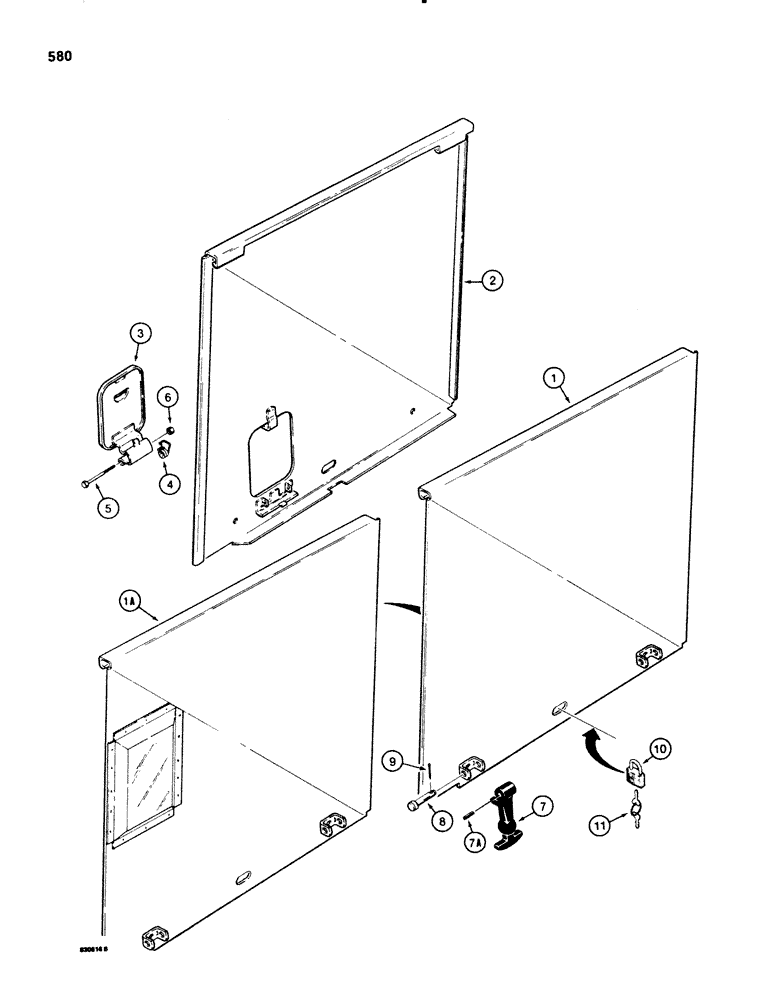

Запчасти Case 580SE (580) - ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

D122138

PANEL

side, engine, right hand, used on models without turbocharged engine

1шт.

1a

D133264

PANEL, SIDE

PANEL side, engine, right hand, used on models with turbocharged engine

1шт.

2

D125779

LARGE PLATE

PANEL side, engine, left hand

1шт.

3

D92446

DOOR

access, engine oil level, remove decal that applies to radiator access only

1шт.

4

D121677

SPRING

oil level access door

1шт.

5

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

1шт.

6

131-2

NUT,1/4"-20, GB

NUT hex, self locking, 1/4" - 20 NC

1шт.

7

D121323

LATCH ASSY.

HOOK side panel

4шт.

THE SMALL PC WELDED TO THE CHASSIS THAT THE D121323 HOOK ATTACHES TO IS D123073.

1шт.

7a

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, , Hook bushing 1/8" x 5/8", Slotted

4шт.

8

H54890

CLEVIS PIN,4.76mm OD x 46.04mm L

PIN hook mounting

4шт.

9

132-3

COTTER PIN,1/16" x 3/8"

Pin, Split (Cotter), 1/16" x 3/8"

4шт.

10

D93753

PADLOCK

engine side panels, if used, Includes: Ref. 11's

2шт.

11

R29555

KEY

for Master padlock only

2шт.

11

D93751

SET OF 2 KEYS

KEY for Yale padlock only

2шт.
