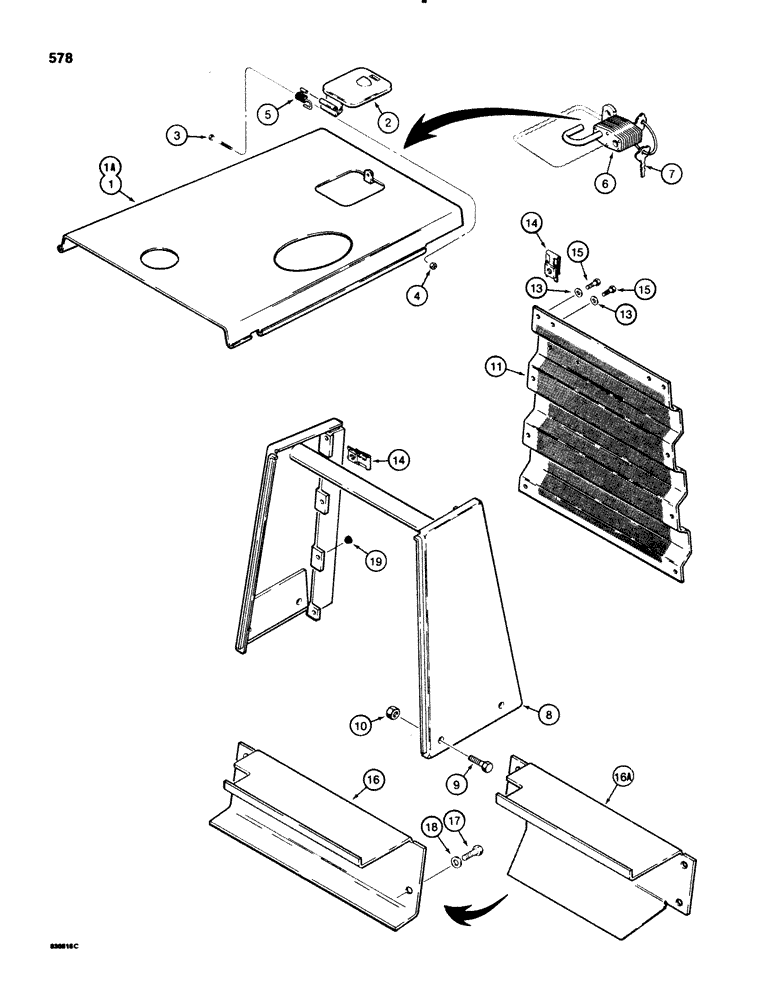

Запчасти Case 580SE (578) - HOOD AND RADIATOR SHROUD (09) - CHASSIS/ATTACHMENTS

1

D127150

HOOD

engine, used on models without turbocharged engine

1шт.

1a

D132925

HOOD ASSY.

HOOD engine, used on models with turbocharged engine

1шт.

2

D92446

DOOR

access, radiator cap, includes decal, See Figure 670

1шт.

3

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

1шт.

4

131-2

NUT,1/4"-20, GB

NUT hex, self locking, 1/4" - 20 NC

1шт.

5

D121677

SPRING

radiator access door

1шт.

6

D93753

PADLOCK

radiator access door, if used, Includes: Ref. 7's

1шт.

7

R29555

KEY

for Master padlock only

2шт.

7

D93751

SET OF 2 KEYS

KEY for Yale padlock only

2шт.

8

D129372

GUARD

SHROUD radiator

1шт.

9

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

10

129-108

NUT,3/4"-10, G5

4шт.

11

D91062

GUARD

GRILLE radiator

1шт.

12

RESERVED

1шт.

13

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

6-10шт.

14

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, Ret, J, 3/8"-16

6-10шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6-10шт.

16

D123839

GUARD

pump, models with two wheel drive

1шт.

16a

D123840

GUARD

pump, models with four wheel drive

1шт.

17

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

2-4шт.

18

195-545

WASHER,3/4", SAE

flat, plated, 3/4"

2-4шт.

19

L60224

BUMPER

rubber, Replaces four bolts and attaching hardware on some models

4шт.
