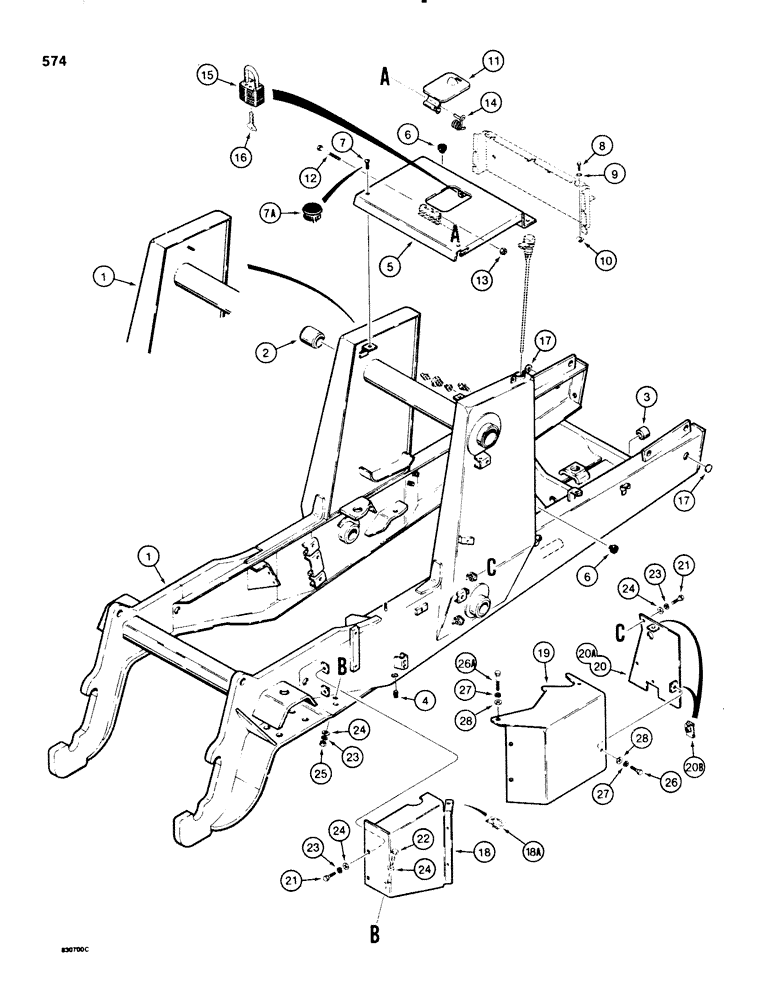

Запчасти Case 580SE (574) - CHASSIS AND LOADER CONTROL VALVE COVER (09) - CHASSIS/ATTACHMENTS

1

D120738

CHASSIS

tractor, with decals, two wheel drive models, Parker loader control valve is used with this chassis, Includes: Ref. 2 - 4

1шт.

1

D126815

CHASSIS

tractor, with decals, may have bracket or stud for mounting chassis cover, Ref. 5 to upright, two wheel drive models, not shown, Case loader control valve is used with this chassis, Includes: Ref. 2 - 4

1шт.

If a Parker loader control valve is used with D126815 or D126816 chassis, you must also use, 3 D123696 spacer and D123559 plate for valve mounting, see Figure 488, Ref. 30 and 33A for spacer and plate.

1шт.

1

D123781

CHASSIS

tractor, with decals, four wheel drive models, also includes Ref. 8, 12, and 13, See Figure 210, not shown, Parker loader control valve is used with this chassis, Includes: Ref. 2 - 4

1шт.

1

D126816

CHASSIS

tractor, with decals, may have bracket or stud for mounting chassis cover, Ref. 5 to upright, four wheel drive models, also includes Ref. 8, 12, and 13, See Figure 210, not shown, Case loader control valve is used with this chassis, Includes:

1шт.

If a Parker loader control valve is used with D126815 or D126816 chassis, you must also use, 3 D123696 spacer and D123559 plate for valve mounting, see Figure 488, Ref. 30 and 33A for spacer and plate.

1шт.

2

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

loader frame pivot, two or four wheel drive models

2шт.

3

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

front axle mounting, two wheel drive models only

2шт.

4

D123893

PLUG

drain, hydraulic reservoir, hex head, 3/4" NPT

1шт.

5

D125196

CAP

COVER chassis, may have bolt holes only, side slots only, or bolt holes and side slots for mounting to chassis upright, if cover has slots and holes also order, 2, P/N 353-406 plugs, Ref. 7A

1шт.

6

L60224

BUMPER

INSULATOR rubber, cover

5шт.

Bracket showing in illustration on right front side rail, above Ref #6, is hood panel hook bracket L47158.

1шт.

7

D122618

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 1", Gr 8

BOLT hex socket head, 1/2"-13 NC x 1", special, chassis cover, two wheel drive models, Serial Range: -17028366

2шт.

D122618

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 1", Gr 8

BOLT hex socket head, 1/2"-13 NC x 1", special, chassis cover, four wheel drive models, Serial Range: -17028049

2шт.

7a

353-406

PLUG,Dome, .625" hole, Nylon

nylon, 5/8", used with P/N D125196 chassis cover, Ref. 5 in place of Ref. 7 bolt on two wheel drive models, Start Serial: 17028366

2шт.

7a

353-406

PLUG,Dome, .625" hole, Nylon

nylon, 5/8", used with P/N D125196 chassis cover, Ref. 5 in place of Ref. 7 bolt on four wheel drive models 17028049 to

2шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

9

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

10

131-641

NUT

u type, 5/16"-18 NC, Replaces j type nut on some models

2шт.

11

D92446

DOOR

access, fuel tank, remove decal that applies to radiator access only

1шт.

12

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

1шт.

13

131-2

NUT,1/4"-20, GB

NUT hex, self locking, 1/4" - 20 NC

1шт.

14

D121677

SPRING

fuel access door

1шт.

15

D93753

PADLOCK

fuel access door, if used, Includes: Ref. 16's

1шт.

16

R29555

KEY

for Master padlock only

2шт.

16

D93751

SET OF 2 KEYS

KEY for Yale padlock only

2шт.

17

41-1020

PLUG,Cup, 1 1/4"

cup, 1-1/4", expansion

2шт.

18

D131688

PLATE

COVER rear, loader control valve, used with 3, P/N 131-856 nuts, Ref. 18A, Replaces cover with weld nuts used in production on some models

1шт.

18a

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, Ret, J, 3/8"-16

3шт.

19

D126433

PLATE

COVER center, loader control valve

1шт.

20

D93032

LARGE PLATE

COVER front, loader control valve, with welded tabs and weld nuts, no longer available, for service order P/N D133197 cover, 2, P/N D122908 j type nuts, 1, P/N 195-525 flat washer, and 1, P/N 129-103 hex nut, See Figure 334 for washer and hex nut

1шт.

20a

D133197

LARGE PLATE

COVER front, loader control valve, formed tabs, used with P/N D122908 j type nuts, Replaces P/N D93032 cover with welded tabs and weld nuts used in production on some models

1шт.

20b

D122908

NUT

j type, 3/8", service with P/N 131-856 j type

2шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

24

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

6шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

26

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

28

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

5шт.
