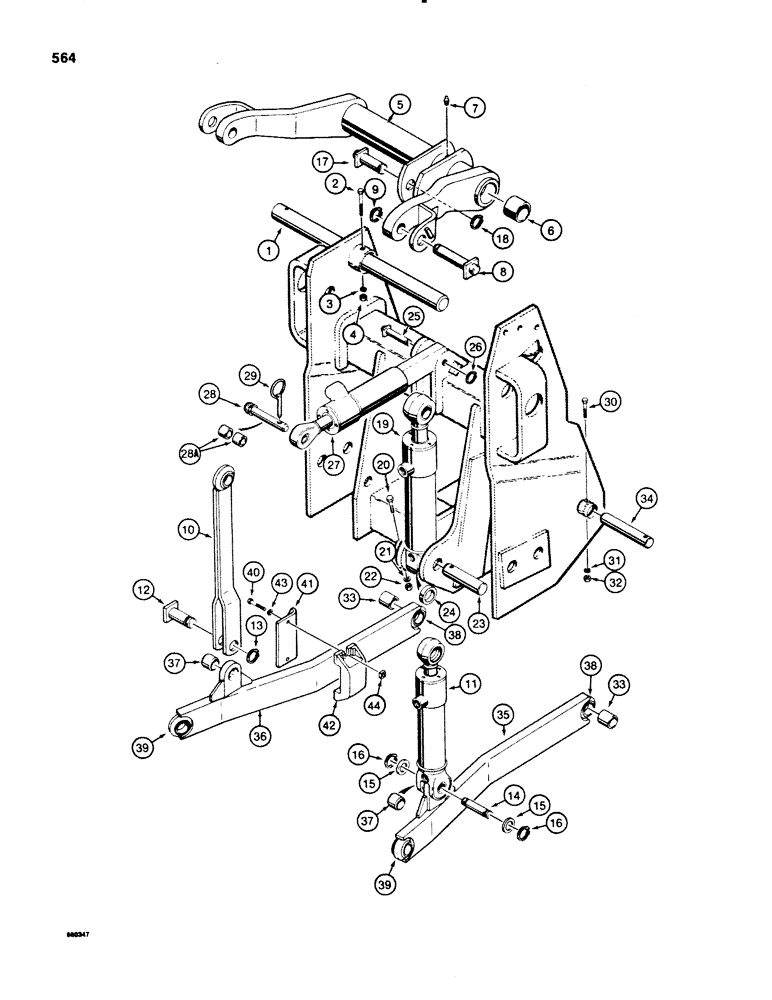

Запчасти Case 580SE (564) - THREE-POINT HITCH DRAFT ARMS, LINKAGE, AND CYLINDERS, USED HYDRAULIC HITCH (09) - CHASSIS/ATTACHMENTS

1

D51569

SHAFT

ROCKSHAFT three point hitch

1шт.

2

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

5

D72875

TUBE,23.6" L

rockshaft, Includes: Ref. 6

1шт.

6

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

tube

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

8

D51299

PIN

mounting, tilt cylinder and strut, upper

2шт.

9

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, retaining

2шт.

10

D51276

STAND

STRUT stationary

1шт.

11

G101188

JACK BODY

CYLINDER tilt, See Figure 484

1шт.

12

D51297

PIN

mounting, strut, lower

1шт.

13

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, retaining, lower strut mounting pin

1шт.

14

D30609

PIN,25.4mm OD x 95.25mm L

mounting, tilt cylinder, lower

1шт.

15

195-553

WASHER,1", SAE

flat, plated, 1", cylinder alignment

1шт.

16

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, retaining, lower tilt cylinder mounting pin

2шт.

17

D51302

PIN

mounting, lift cylinder, upper

1шт.

18

D26918

SNAP RING,#125, Ext

Ring, Snap, , upper lift cylinder mounting pin #125, Ext

1шт.

19

G101189

CYLINDER ASSY.

CYLINDER lift, See Figure 482

1шт.

20

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

23

D51695

PIN

mounting, lift cylinder, lower

1шт.

24

D51692

SPACER

lift cylinder mounting pin, lower

1шт.

25

D51294

PIN

mounting, pitch cylinder at mounting frame

1шт.

26

T25683

SNAP RING,#75, Ext

Ring, Snap, , pitch cylinder mounting pin #75, Ext

1шт.

27

G33128

JACK BODY

CYLINDER pitch, See Figure 486

1шт.

28

G16735

PIN

mounting, pitch, Serial Range: cylinder-equipment

1шт.

28a

T39236

BUSHING

SPACER to adapt P/N G16735 pin for use with category II hitch, if used

2шт.

29

A30338

PIN

retaining, self locking

1шт.

30

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

33

D51588

PIVOT

BUSHING pivot, draft arm mounting pin

2шт.

34

D50724

PIN,25.4mm OD x 160.27mm L

mounting, draft arm to mounting frame

2шт.

35

D51339

ARM

draft, right hand, 7/8" (22 mm) pin hole, Includes: Ref. 37 - 39

1шт.

36

D51340

ARM

draft, left hand, 7/8" (22 mm) pin hole, Includes: Ref. 37 - 39

1шт.

37

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

arm, 1" (25 mm) ID

1шт.

38

D51336

BALL JOINT

BUSHING self aligning, 1" (25 mm) ID

1шт.

39

D51557

BALL JOINT

BUSHING self aligning, 7/8" (22 mm) ID

1шт.

40

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

41

D91303

BAR

PLATE retainer, draft arm

2шт.

42

D51722

CASTING

RETAINER draft arm

2шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

44

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

4шт.
