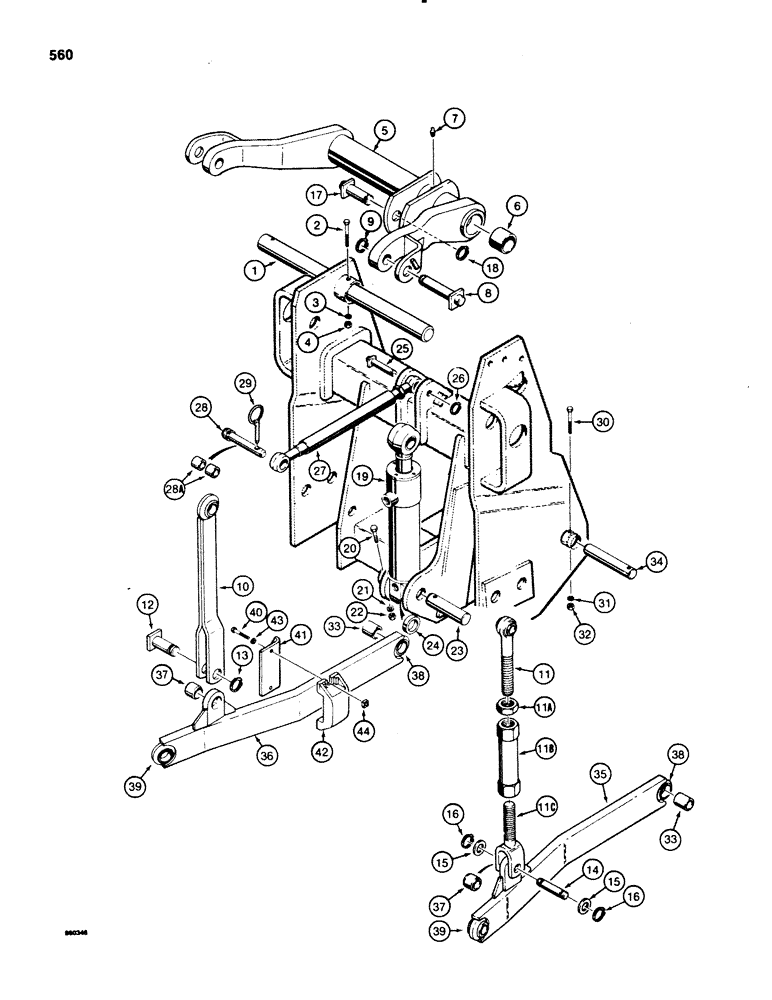

Запчасти Case 580SE (560) - THREE-POINT HITCH DRAFT ARMS, LINKAGE, AND CYLINDER, USED WITH MECHANICAL HITCH (09) - CHASSIS/ATTACHMENTS

1

D51569

SHAFT

ROCKSHAFT three point hitch

1шт.

2

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

5

D72875

TUBE,23.6" L

rockshaft, Includes: Ref. 7

1шт.

6

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

tube

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

8

D51299

PIN

mounting, strut and leveling link, upper

2шт.

9

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, pin retaining

2шт.

10

D51276

STAND

STRUT stationary

1шт.

11

D91488

END

EYE leveling link

1шт.

11a

129-152

JAM NUT,Jam, 1 1/4"-7, G5

hex, jam, plated, 1-1/4" - 7 NC

1шт.

11b

D91489

TURNBUCKLE

leveling link

1шт.

11c

D91491

CLEVIS

leveling link

1шт.

12

D51297

PIN

mounting, strut, lower

1шт.

13

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, retaining, lower strut mounting pin

1шт.

14

D95481

AXLE PIN

PIN leveling link, lower

1шт.

15

195-553

WASHER,1", SAE

flat, plated, 1", leveling link alignment

2шт.

16

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, retaining, lower pin, leveling link

2шт.

17

D51302

PIN

lift cylinder mounting, upper

1шт.

18

D26918

SNAP RING,#125, Ext

Ring, Snap, , upper lift cylinder mounting pin #125, Ext

1шт.

19

G101189

CYLINDER ASSY.

CYLINDER lift, See Figure 482

1шт.

20

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

23

D51695

PIN

mounting, lift cylinder, lower

1шт.

24

D51692

SPACER

lift cylinder mounting pin, lower

1шт.

25

D51294

PIN

mounting, upper link at mounting frame

1шт.

26

T25683

SNAP RING,#75, Ext

Ring, Snap, , upper link mounting pin #75, Ext

1шт.

27

A36228

UPPER LINK

LINK upper

1шт.

28

G16735

PIN

mounting, upper, Serial Range: link-equipment

1шт.

28a

T39236

BUSHING

SPACER to adapt P/N G16735 pin for use with category II hitch, if used

2шт.

29

A30338

PIN

self locking

1шт.

30

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

33

D51588

PIVOT

BUSHING pivot, draft arm mounting pin

2шт.

34

D50724

PIN,25.4mm OD x 160.27mm L

mounting, draft arm to mounting frame

2шт.

35

D51339

ARM

draft, right hand, 7/8" (22 mm) pin hole, Includes: Ref. 37 - 39

1шт.

36

D51340

ARM

draft, left hand, 7/8" (22 mm) pin hole, Includes: Ref. 37 - 39

1шт.

37

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

arm, 1" (25 mm) ID

1шт.

38

D51336

BALL JOINT

BUSHING self aligning, 1" (25 mm) ID

1шт.

39

D51557

BALL JOINT

BUSHING self aligning, 7/8" (22 mm) ID

1шт.

40

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

41

D91303

BAR

PLATE retainer, draft arm

2шт.

42

D51722

CASTING

RETAINER draft arm

2шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

44

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

4шт.
