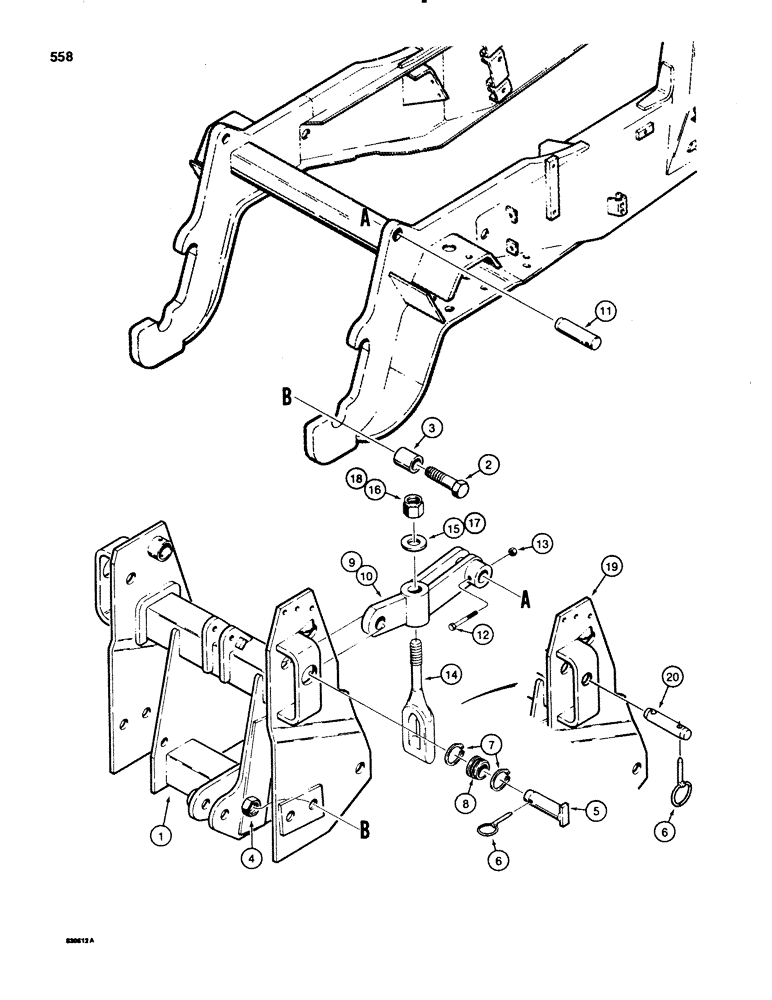

Запчасти Case 580SE (558) - THREE-POINT HITCH FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D90985

FRAME

mounting, outer mounting bracket hole at frame to link is 2-1/4" diameter, no longer used, order P/N D133255 mounting frame

1шт.

2

13-2072

BOLT,Hex, 1-1/4" - 7 x 4-1/2", Gr 5

hex head, 1-1/4" - 7 NC x 4-1/2"

2шт.

3

D90983

SPOOL

SPACER mounting

2шт.

4

25-1020

NUT,1 1/4"-7, G5

2шт.

5

D54957

PIN

frame to link, used with P/N D90985 frame

2шт.

6

D33805

PIN

self locking

2-4шт.

7

F40807

SNAP RING,#225, Ext

Ring, Snap, , spacer, if used #225, Ext

4шт.

8

D51895

SPACER

link, if used

2шт.

9

D90984

LINK

three point hitch frame to chassis, left hand, not shown

1шт.

10

D91107

LINK

three point hitch frame to chassis, right hand

1шт.

11

D90825

PIN

, Serial Range: link-chassis

2шт.

12

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

13

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

14

D123960

ROD

tension

2шт.

15

D64968

WASHER

hardened, 1-1/4", used with Ref. 16, if used

2шт.

16

131-454

LOCK NUT,1 1/4"-7

NUT hex, self locking, 1-1/4" - 7 NC, 1-11/16" thick, if used

2шт.

17

D36434

WASHER

hardened, 1-1/4", used with Ref. 18, if used

2шт.

18

131-479

LOCK NUT,1 1/4"-7

NUT hex, self locking, plated, 1-1/4" - 7 NC, 1-1/8" thick, if used, Replaces: P/N 131 - 438

2шт.

19

D133255

FUNNEL

FRAME mounting, outer mounting bracket hole at frame to link is 1-1/2" diameter

1шт.

20

D133267

PIN

hitch mounting, frame to link, used with P/N D133255 frame

2шт.
