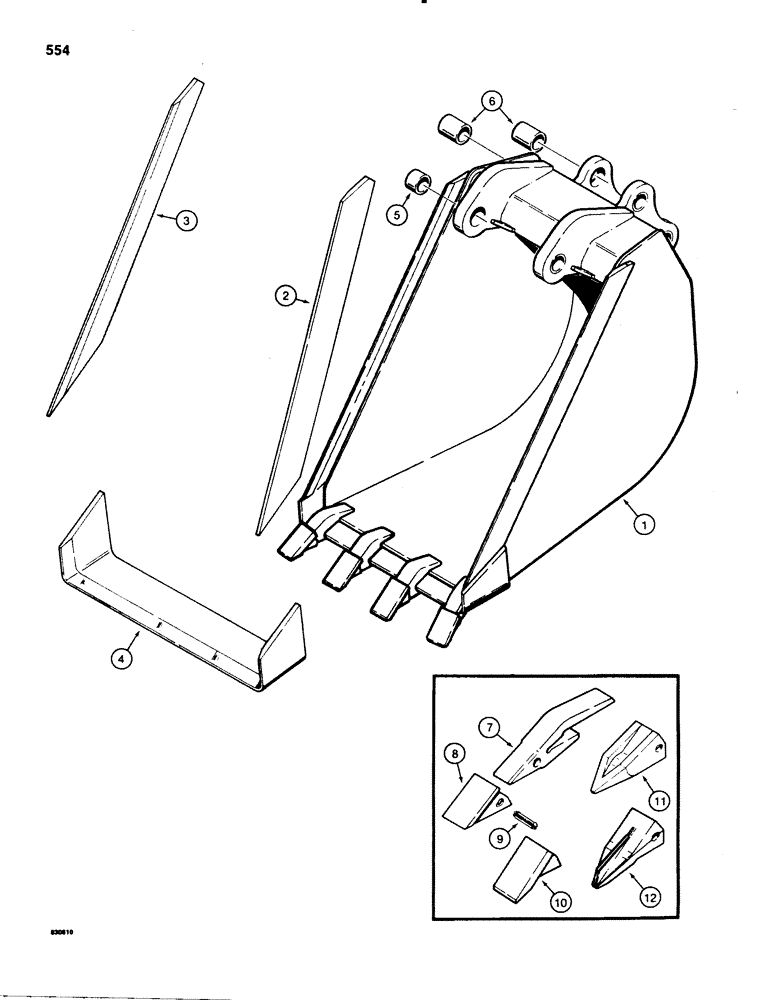

Запчасти Case 580SE (554) - BACKHOE BUCKETS, 24 INCH (610 MM) HIGH CAPACITY TRENCHING (09) - CHASSIS/ATTACHMENTS

1

L107618

BUCKET

ASSEMBLY, 24" (610 mm), machinery item, See Figure 002 for ordering, 24" (610 mm) High capacity trenching buckets, Includes: Ref. 2 - 6

1шт.

2

L70084

EDGE, CUTTING

EDGE cutting, bucket, right hand side, 24" (610 mm) High capacity trenching buckets

1шт.

3

L70083

EDGE, CUTTING

EDGE cutting, bucket, left hand side, 24" (610 mm) High capacity trenching buckets

1шт.

4

D41673

EDGE, CUTTING

EDGE cutting, bucket, center, 24" (610 mm) High capacity trenching buckets

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper, 24" (610 mm) High capacity trenching buckets

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, at link, 24" (610 mm) High capacity trenching buckets

4шт.

L43266

TOOTH

ASSEMBLY, high capacity bucket, Bucket teeth included with bucket, Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth, Bucket teeth included with bucket

1шт.

8

D39093

TOOTH

POINT tooth, Bucket teeth included with bucket

1шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, point, Bucket teeth included with bucket

1шт.

10

D44193

TOOTH

POINT tooth, heavy duty, flat end, service option, Bucket teeth included with bucket

1шт.

11

D80119

TOOTH

POINT tooth, heavy duty, pointed end, service option, Bucket teeth included with bucket

1шт.

12

D79100

TOOTH

POINT tooth, heavy duty, star point, service option, Bucket teeth included with bucket

1шт.
