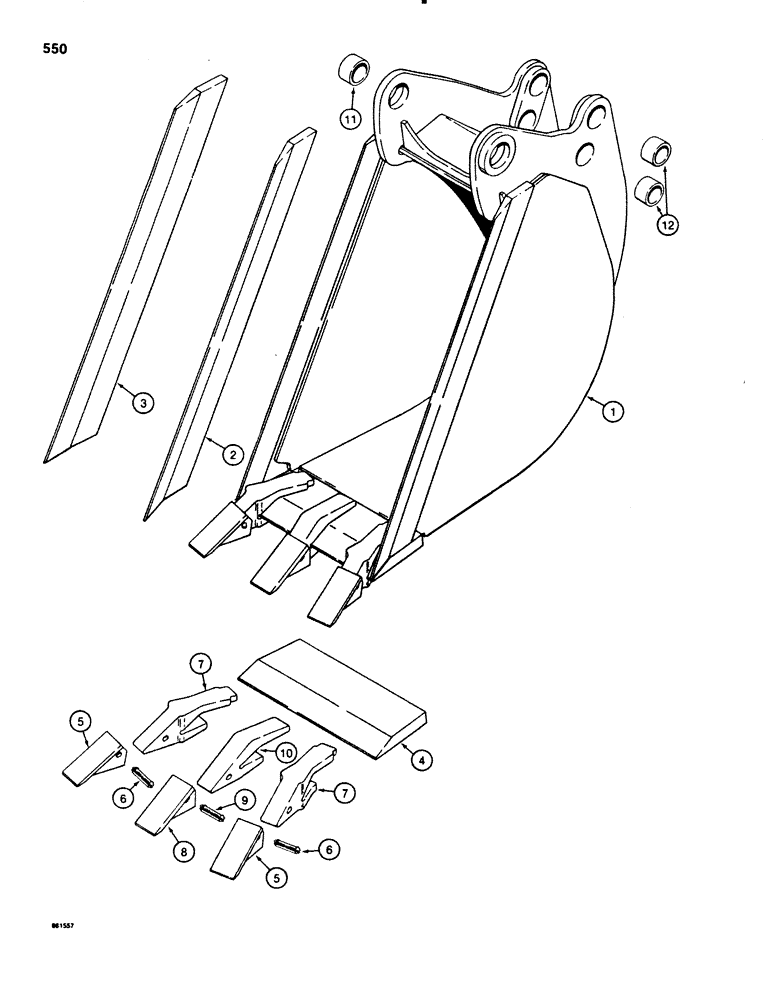

Запчасти Case 580SE (550) - BACKHOE BUCKETS, INCLUDES BUCKET TEETH, TRENCHING BUCKETS, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D137891

BUCKET

ASSEMBLY, 16" (406 mm), with 3 teeth, machinery item, See Figure 002 for ordering, Includes: Ref. 2 - 12

1шт.

2

D134982

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D134983

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D135512

EDGE, CUTTING

EDGE cutting, center, 16" (406 mm) bucket

1шт.

D136861

TOOTH

ASSEMBLY, outer corners, Includes: Ref. 5 - 7

2шт.

5

D39093

TOOTH

POINT tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN flex, outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

8

D39093

TOOTH

POINT tooth, center

1шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, center point and shank

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4" ID x 2-1/4" OD x 1-1/4" long

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2" ID x 1-7/8" OD x 1-1/4" long

4шт.

1

NLS

NO LONGER SERVICED

ASSEMBLY, 24" (610 mm), with 4 teeth, machinery item, See Figure 002 for ordering, not shown, Includes: Ref. 2 - 12

1шт.

2

D134982

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D134983

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D135514

EDGE, CUTTING

EDGE cutting, center, 24" (610 mm) bucket

1шт.

D136861

TOOTH

ASSEMBLY, outer corners, Includes: Ref. 5 - 7

2шт.

5

D39093

TOOTH

POINT tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN flex, outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

8

D39093

TOOTH

POINT tooth, center

2шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, center point and shank

2шт.

10

D48212

SHANK

tooth, center

2шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4" ID x 2-1/4" OD x 1-1/4" long

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2" ID x 1-7/8" OD x 1-1/4" long

4шт.

1

D137892

BUCKET

ASSEMBLY, 30" (762 mm), with 5 teeth, machinery item, See Figure 002 for ordering, not shown, Includes: Ref. 2 - 12

1шт.

2

D134982

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D134983

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D135515

EDGE, CUTTING

EDGE cutting, center, 30" (762 mm) bucket

1шт.

D136861

TOOTH

ASSEMBLY, outer corners, Includes: Ref. 5 - 7

2шт.

5

D39093

TOOTH

POINT tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN flex, outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

8

D39093

TOOTH

POINT tooth, center

3шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, center point and shank

3шт.

10

D48212

SHANK

tooth, center

3шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4" ID x 2-1/4" OD x 1-1/4" long

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2" ID x 1-7/8" OD x 1-1/4" long

4шт.

1

D137893

BUCKET

ASSEMBLY, 36" (914 mm), with 6 teeth, machinery item, See Figure 002 for ordering, not shown, Includes: Ref. 2 - 12

1шт.

2

D134982

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D134983

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D135516

EDGE, CUTTING

EDGE cutting, center, 36" (914 mm) bucket

1шт.

D136861

TOOTH

ASSEMBLY, outer corners, Includes: Ref. 5 - 7

2шт.

5

D39093

TOOTH

POINT tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN flex, outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

8

D39093

TOOTH

POINT tooth, center

4шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, center point and shank

4шт.

10

D48212

SHANK

tooth, center

4шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4" ID x 2-1/4" OD x 1-1/4" long

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2" ID x 1-7/8" OD x 1-1/4" long

4шт.
