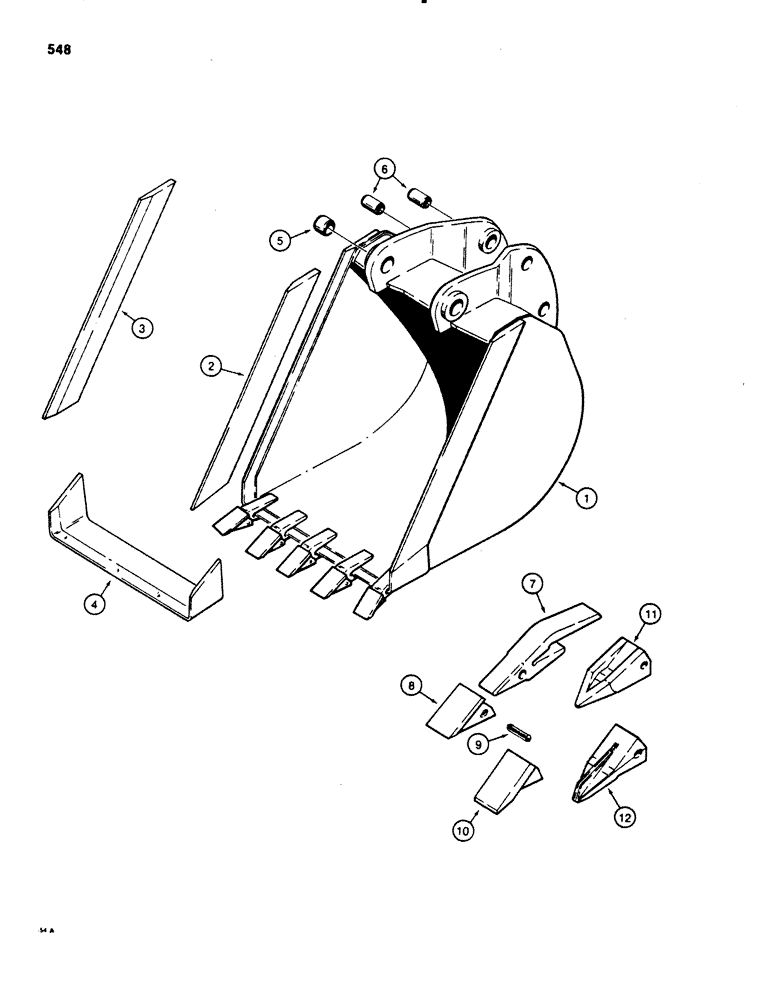

Запчасти Case 580SE (548) - BACKHOE BUCKETS, TRENCHING BUCKETS - HEAVY DUTY BUCKET (09) - CHASSIS/ATTACHMENTS

1

D57546

BUCKET

ASSEMBLY, 18" (457 mm), machinery item, See Figure 002 for ordering, if used, also See Figures 550 and 552, Includes: Ref. 2 - 6

1шт.

2

D57550

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D57551

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D57594

EDGE, CUTTING

EDGE cutting, bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, at bucket link

4шт.

1

D57544

BUCKET

ASSEMBLY, 24" (610 mm), machinery item, See Figure 002 for ordering if, used, also See Figures 550 and 552, Includes: Ref. 2 - 6

1шт.

2

D57550

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D57551

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D57591

EDGE, CUTTING

EDGE cutting, bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, at bucket link

4шт.

1

D57543

BUCKET

ASSEMBLY, 30" (762 mm), machinery item, See Figure 002 for ordering, if used, also See Figures 550 and 552, Includes: Ref. 2 - 6

1шт.

2

D57550

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D57551

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D57559

EDGE, CUTTING

EDGE cutting, bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, at bucket link

4шт.

1

D57545

BUCKET

ASSEMBLY, 36" (914 mm), machinery item, See Figure 002 for ordering, if used, also See Figures 550 and 552, Includes: Ref. 2 - 6

1шт.

2

D57550

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D57551

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D57595

EDGE, CUTTING

EDGE cutting, bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, at link

4шт.

7

D48212

SHANK

tooth, original equipment, Bucket teeth

1шт.

8

D39093

TOOTH

POINT tooth, original equipment, Bucket teeth

1шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, point, original equipment, Bucket teeth

1шт.

10

D44193

TOOTH

POINT tooth, heavy duty, flat end, service option, Bucket teeth

1шт.

11

D80119

TOOTH

POINT tooth, heavy duty, pointed end, service option, Bucket teeth

1шт.

12

D79100

TOOTH

POINT tooth, heavy duty, star point, service option, Bucket teeth

1шт.
