CONSTRUCTION KING
/
(580SE) - CASE SUPER-E CONSTRUCTION KING LOADER BACKHOE (1/83-12/87)
/
(09) - CHASSIS/ATTACHMENTS
/

(546) - BACKHOE BUCKETS, BELLHOLE BUCKETS, COMBINATION BELLHOLE AND

Запчасти Case 580SE (546) - BACKHOE BUCKETS, BELLHOLE BUCKETS, COMBINATION BELLHOLE AND (09) - CHASSIS/ATTACHMENTS

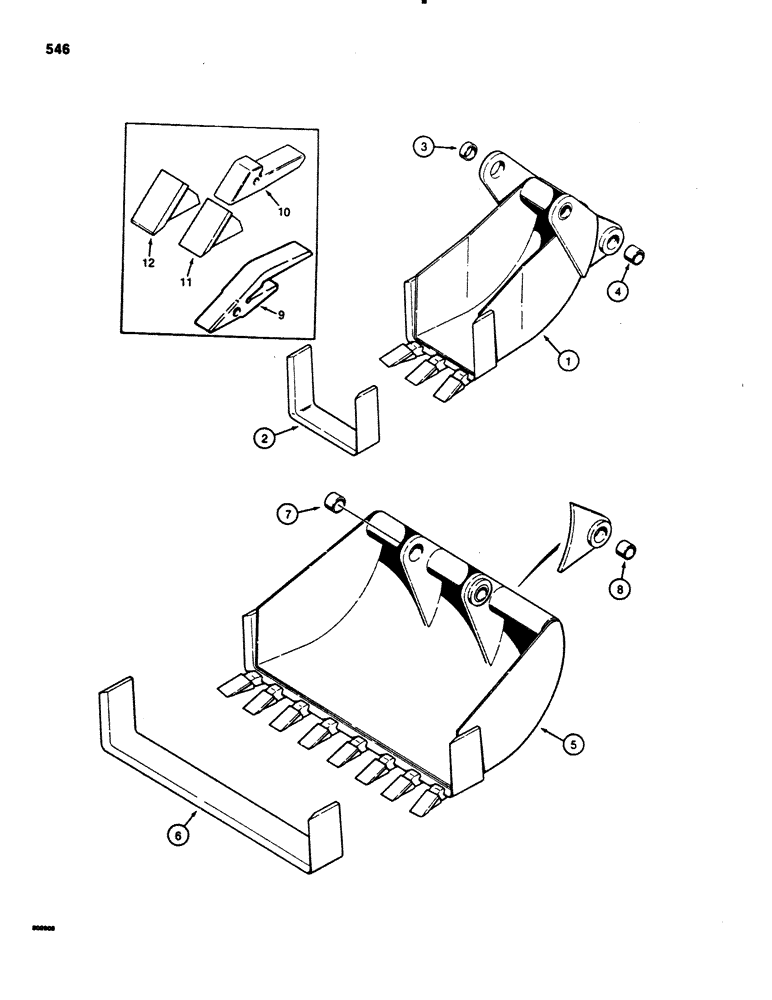

Схема запчастей Case 580SE - (546) - BACKHOE BUCKETS, BELLHOLE BUCKETS, COMBINATION BELLHOLE AND (09) - CHASSIS/ATTACHMENTS
8
7
6
3
4
2
9
1
10
5
11
12

№

Артикул

Название

Примечание

Количество

1

D41547

BUCKET

ASSEMBLY, 12" (305 mm), machinery item, See Figure 002 for ordering, Includes: Ref. 2 - 4, Bellhoe buckets

1шт.

2

D37490

KNIFE

EDGE cutting, bucket, Bellhoe buckets

1шт.

3

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

bucket, at dipper, Bellhoe buckets

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, bucket link pin hole, Bellhoe buckets

2шт.

1

D41548

BUCKET

ASSEMBLY, 16" (406 mm), machinery item, See Figure 002 for ordering, Includes: Ref. 2 - 4, Bellhoe buckets

1шт.

2

D37518

EDGE, CUTTING

EDGE cutting, bucket, Bellhoe buckets

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper, Bellhoe buckets

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, bucket link pin hole, Bellhoe buckets

2шт.

1

D41549

BUCKET

ASSEMBLY, 30" (762 mm), machinery item, See Figure 002 for ordering, Includes: Ref. 2 - 4, Bellhoe buckets

1шт.

2

D37515

EDGE

cutting, bucket, Bellhoe buckets

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket at dipper, Bellhoe buckets

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, bucket link pin hole, Bellhoe buckets

2шт.

5

D41550

BUCKET

ASSEMBLY, 36" (914 mm), machinery item, See Figure 002 for ordering, Includes: Ref. 6 - 8, Combination bellhoe and graveyard bucket

1шт.

6

NLS

NO LONGER SERVICED

EDGE cutting, bucket, Combination bellhoe and graveyard bucket

1шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper, Combination bellhoe and graveyard bucket

2шт.

8

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, bucket link pin hole, Combination bellhoe and graveyard bucket

2шт.

9

D58499

SUPPORT

SHANK tooth, service option, Bucket teeth

1шт.

10

D26368

SUPPORT

SHANK tooth, original equipment, Bucket teeth

1шт.

11

D27748

TOOTH

POINT tooth, Bucket teeth

1шт.

12

D36720

TOOTH

POINT tooth, heavy duty service option, Bucket teeth

1шт.

Выбрано товаров: 20
