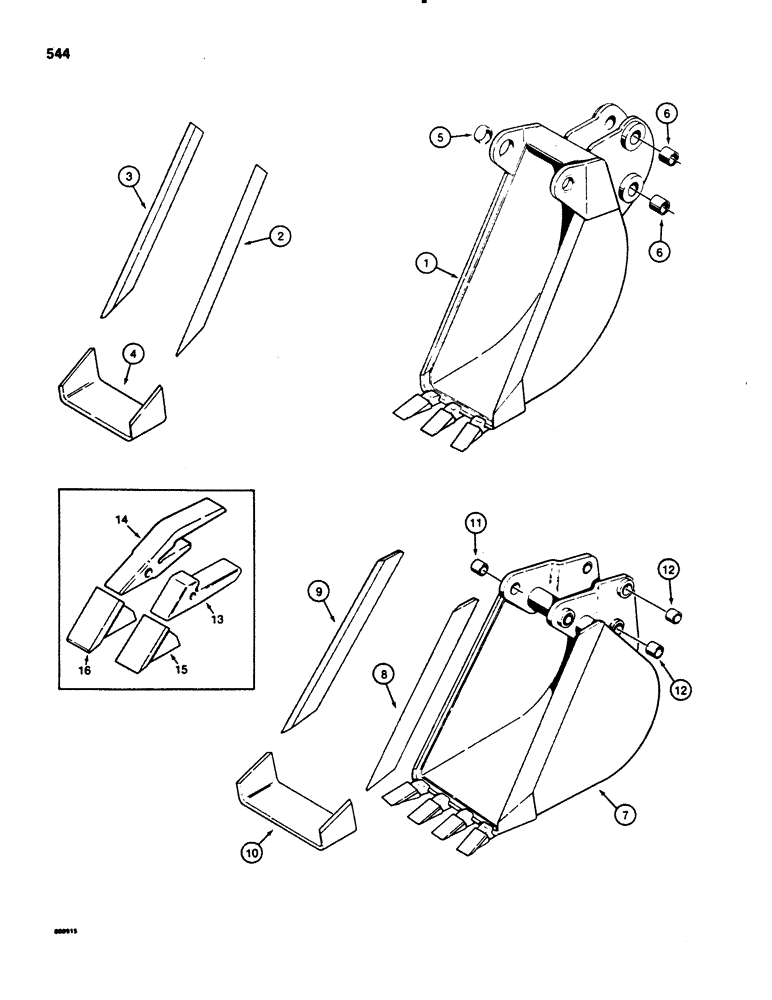

Запчасти Case 580SE (544) - BACKHOE BUCKETS, TRENCHING BUCKETS, BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

1

D52642

BUCKET

ASSEMBLY, 12"/305 mm, machinery item, see Figure 002 for ordering, Includes: Ref. 2-6

1шт.

Ref #1 D52642 12" bucket Welded lugs

1шт.

containing holes for Ref #6 bushings are part nbrs D52636, RH, and D52637, LH

1шт.

2

D29424

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

3

D29423

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

4

D37464

EDGE, CUTTING

EDGE cutting, bucket, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, link pin hole

4шт.

7

D37473

BUCKET

ASSEMBLY, 18" (457 mm), machinery item, See Figure 002 for ordering, Includes: Ref. 8 - 12

1шт.

8

D21606

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

9

D21605

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

10

D37642

EDGE, CUTTING

EDGE cutting, bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, upper and lower bucket link pin hole

4шт.

7

D37474

BUCKET

ASSEMBLY, 24" (610 mm), machinery item, See Figure 003 for ordering, Includes: Ref. 8 - 12

1шт.

8

D21606

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

9

D21605

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

10

D37507

EDGE

cutting, bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, upper and lower bucket link pin hole

4шт.

7

D37475

BUCKET

ASSEMBLY, 30" (762 mm), machinery item, See Figure 002 for ordering, Includes: Ref. 8 - 12

1шт.

8

D21606

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

9

D21605

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

10

D37505

EDGE, CUTTING

EDGE cutting, bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, upper and lower bucket link pin hole

4шт.

7

D37476

BUCKET

ASSEMBLY, 36" (914 mm), machinery item, See Figure 002 for ordering, Includes: Ref. 8 - 12

1шт.

8

D21606

EDGE, CUTTING

EDGE cutting, bucket, right hand side

1шт.

9

D21605

EDGE, CUTTING

EDGE cutting, bucket, left hand side

1шт.

10

D37471

EDGE, CUTTING

EDGE cutting, bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, upper and lower bucket link pin hole

4шт.

13

D26368

SUPPORT

SHANK tooth, original equipment, Bucket teeth

1шт.

14

D58499

SUPPORT

SHANK tooth, service option, Bucket teeth

1шт.

15

D27748

TOOTH

POINT tooth, Bucket teeth

1шт.

16

D36720

TOOTH

POINT tooth, heavy duty service option, Bucket teeth

1шт.
