1
REF
INSTRUCTION

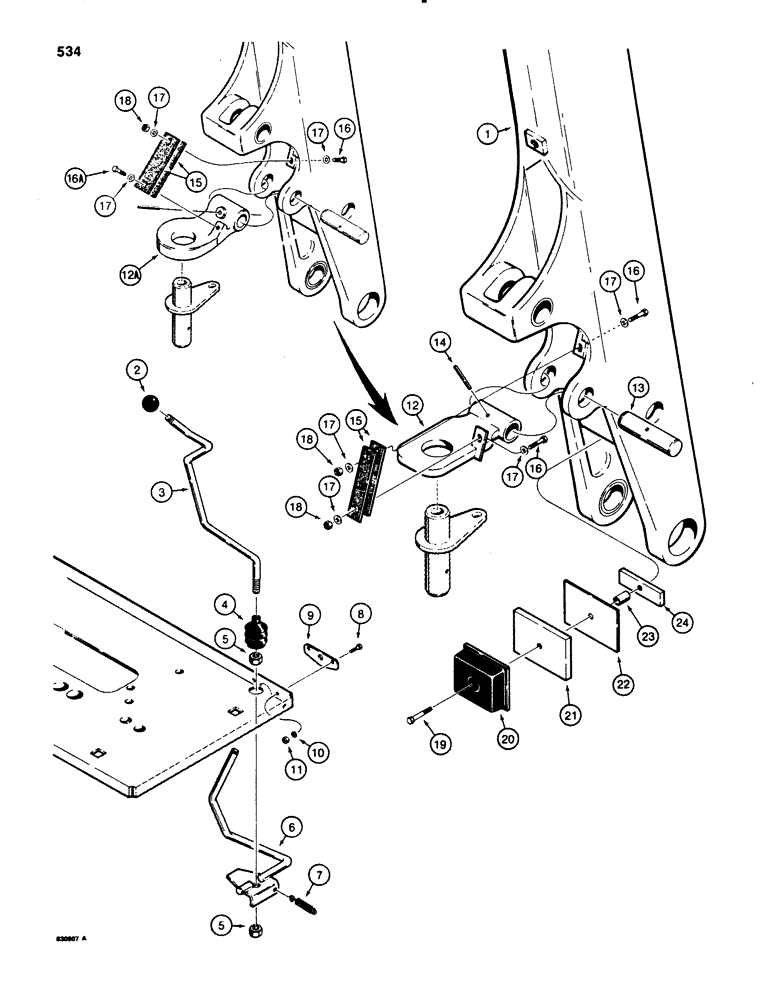

BOOM backhoe, See Figure 530
1шт.
2
D59912
KNOB
lever, latch release
1шт.
3
D91102
LEVER
boom latch release
1шт.
4
D85869
BELLOWS
BOOT rubber, lever
1шт.
5
129-125
NUT,1/2"-20, G5
2шт.
6
D91098
ROD
latch release
1шт.
7
D91097
SPRING
rod
1шт.
8
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
2шт.
9
D90398
PLATE
rod support
1шт.
10
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
11
9635082
NUT,5/16" - 18, Gr 5
2шт.
12
D90687
LATCH
backhoe boom, no longer used, for service order P/N D125775 latch and 113-217 bolt
1шт.
12a
D125775
LATCH
backhoe boom
1шт.
13
D89366
PIN,38.1mm OD x 145mm L
boom latch
1шт.
14
138-144
LOCK PIN,1/4" x 2 1/2", Slotted
PIN, 1/4" x 2 1/2", Slotted
1шт.
15
L73300
STRAP
boom latch
2шт.
16
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
1-2шт.
16a
113-217
PREV TORQUE BOLT,Locking, 3/8"-16 x 1", G5, Full Thd
BOLT, Locking, 3/8"-16 x 1", G5, Full Thd
1шт.
17
95-6
WASHER,3/8"
flat, 3/8"
3-4шт.
18
131-52
NUT,3/8"-16, GC
NUT hex, self locking, plated, 3/8" - 16 NC
1-2шт.
19
113-219
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
20
D90990
GUARD
BUMPER rubber, boom
1шт.
21
D90970
PLATE
boom stop, support
1шт.
22
D92254
SHIM
plate, boom stop
1шт.
23
R46103
SPACER
plate
1шт.
24
D90971
PLATE
support
1шт.
