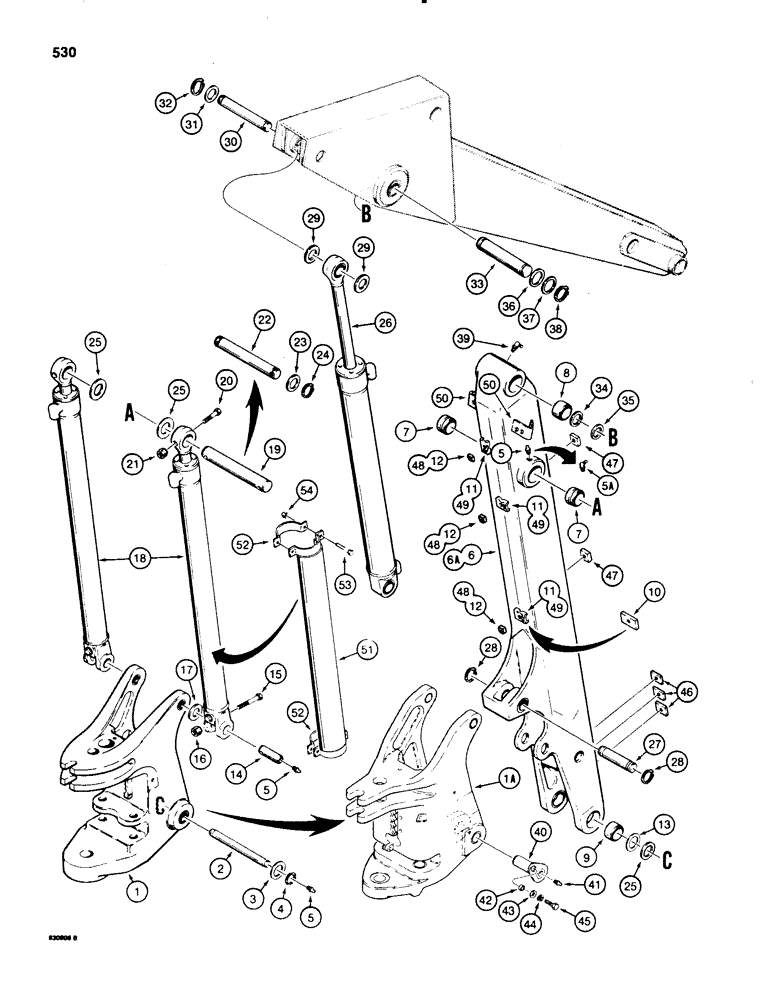

Запчасти Case 580SE (530) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

D90868

LATHE

TOWER swing, uses one boom mounting pin, See Figure 526 for swing tower and bushings, if used

1шт.

1a

REF

INSTRUCTION

TOWER swing, uses two boom mounting pins, See Figure 526 for swing tower and bushing identification

1шт.

2

D91240

PIN,50.8mm OD x 402mm L

boom to swing tower, used with Ref. 1

1шт.

3

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2" bolt size, 2-1/16" ID x 3" OD x 1/8" thick, used with Ref. 1

2шт.

4

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin, used with ref. 1 #200, Ext

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

4-6шт.

5a

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING grease, 1/8" pipe, self tapping, 45°, used on models with extendable dipper, if used

2шт.

6

D121393

LOWER LINK

BOOM backhoe, mounts to swing tower with 1, Ref. 2 pin, used with P/N D90869 swing tower

1шт.

6a

D131153

LOWER LINK

BOOM backhoe, mounts to swing tower with 2, Ref. 40 pins, used with P/N D127544 swing tower

1шт.

7

D95362

BUSHING

boom cylinder mounting, top

2шт.

8

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

dipper pivot

2шт.

Ref #8 fits inside of spacer d37416 that fits inside end of boom.

1шт.

9

D50698

BUSHING,51.03mm ID x 69.98mm OD x 40.64mm L

boom pivot

2шт.

10

D50004

BLOCK

tapped, welded to boom, if used

2шт.

11

D88417

CAGE ASSY.

CAGE weld to boom for retaining Ref. 12, if used

1шт.

12

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC, if used

1шт.

13

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer, between swing tower and boom .035" Thk

1шт.

14

D49866

PIN,38.1mm OD x 96.52mm L

boom cylinder to swing tower

2шт.

15

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

16

131-52

NUT,3/8"-16, GC

NUT hex, self locking, plated, 3/8" - 16 NC

2шт.

17

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

spacer, flat, 1-1/2" (38 mm) ID

1шт.

18

REF

INSTRUCTION

CYLINDER boom, See Figure 470

2шт.

19

D49865

PIN,50.8mm OD x 304.8mm L

boom cylinder to boom, if used

1шт.

20

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

If used Hex, 1/2"-13 x 4 1/2", G5

2шт.

21

131-70

NUT,1/2"-13, GB

NUT hex, self locking, plated, 1/2" - 13 NC, if used

2шт.

22

L103135

PIN

boom cylinder to boom, if used

1шт.

23

72990

WASHER

flat, 2" (51 mm) ID x 1/16" (.06 mm) thick, if used

2шт.

24

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin, if used #200, Ext

2шт.

25

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2" bolt size, 2-1/16" ID x 3" OD x 1/8" thick, used as a spacer

1шт.

26

REF

INSTRUCTION

CYLINDER dipper, See Figure 472

1шт.

27

D72359

PIN,44.45mm OD x 142.24mm L

dipper, Serial Range: cylinder-boom

1шт.

28

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

29

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-3/4" bolt size, 1-13/16" ID x 2-1/2" OD x 1/8" thick

2шт.

30

D52522

PIN,44.45mm OD x 211.84mm L

dipper, Serial Range: cylinder-dipper

1шт.

31

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

WASHER spacer, 1-3/4" (44 mm) ID

1шт.

32

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

33

D45523

PIN,50.8mm OD x 276.35mm L

, Serial Range: boom-dipper

1шт.

34

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer, 2" (51 mm) ID .035" Thk

1шт.

35

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2" bolt size, 2-1/16" ID x 3" OD x 1/8" thick

1шт.

36

72990

WASHER

flat, 2" ID x 1/16" thick

2шт.

37

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2" bolt size, 2-1/16" ID x 3" OD x 1/8" thick

2шт.

38

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

39

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

1шт.

40

D125594

PIN,50.8mm OD x 136mm L

boom to swing cylinders, used with Ref. 1A

2шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT, used with Ref.1A

2шт.

42

D125595

BUSHING

SPACER pin, used with Ref. 1A

2шт.

43

195-41

WASHER,5/8"

Used with Ref. 1A 5/8"

2шт.

44

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Used with Ref. 1A 5/8"

2шт.

45

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Used with Ref. 1A Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

46

D83825

BLOCK

tapped, Serial Range: welded-boom

3шт.

47

25-288

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

square, heavy, 1/2" - 13 NC, welded to boom

2шт.

48

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" 16 NC

2-3шт.

49

D88417

CAGE ASSY.

CAGE, Serial Range: welded-boom

2-3шт.

50

D45559

BRACKET

tube clamp, Serial Range: welded-boom

2шт.

51

D62468

GUARD

boom cylinder, if used

2шт.

52

D62467

BRACKET

guard mounting, if used

4шт.

53

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

8шт.

54

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self locking, plated, 5/16" - 18 NC

8шт.
