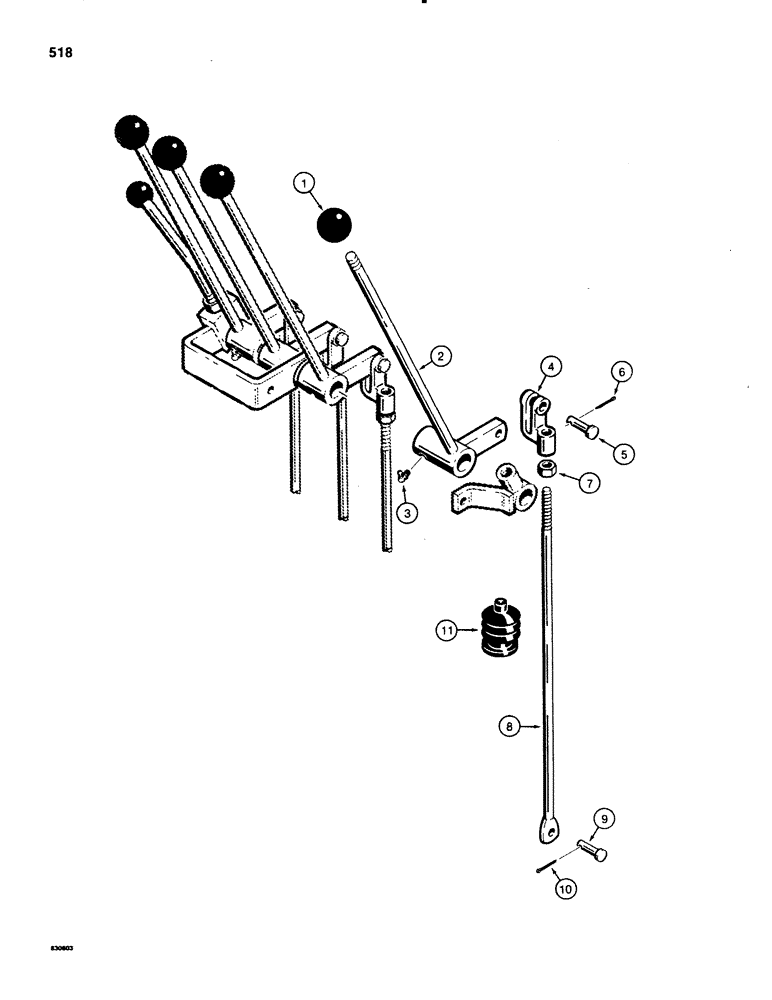

Запчасти Case 580SE (518) - BACKHOE EXTENDABLE DIPPER CONTROL, FOOT SWING MODELS (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

control lever

1шт.

2

D87528

LEVER

control, extendable dipper

1шт.

3

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING grease, 1/4" - 28 NF taper, 90°

1шт.

4

L11182

YOKE,3/8" - 24

CLEVIS, 3/8", offset

1шт.

5

141-54

CLEVIS PIN,3/8" x 1 1/16"

Special length 3/8" x 1 1/16"

1шт.

6

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

7

129-123

NUT,3/8"-24, G5

1шт.

8

D30821

ROD

extendable dipper control, straight, uses offset clevis

1шт.

9

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

1шт.

10

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

D85869

BELLOWS

BOOT rod, if used

1шт.
