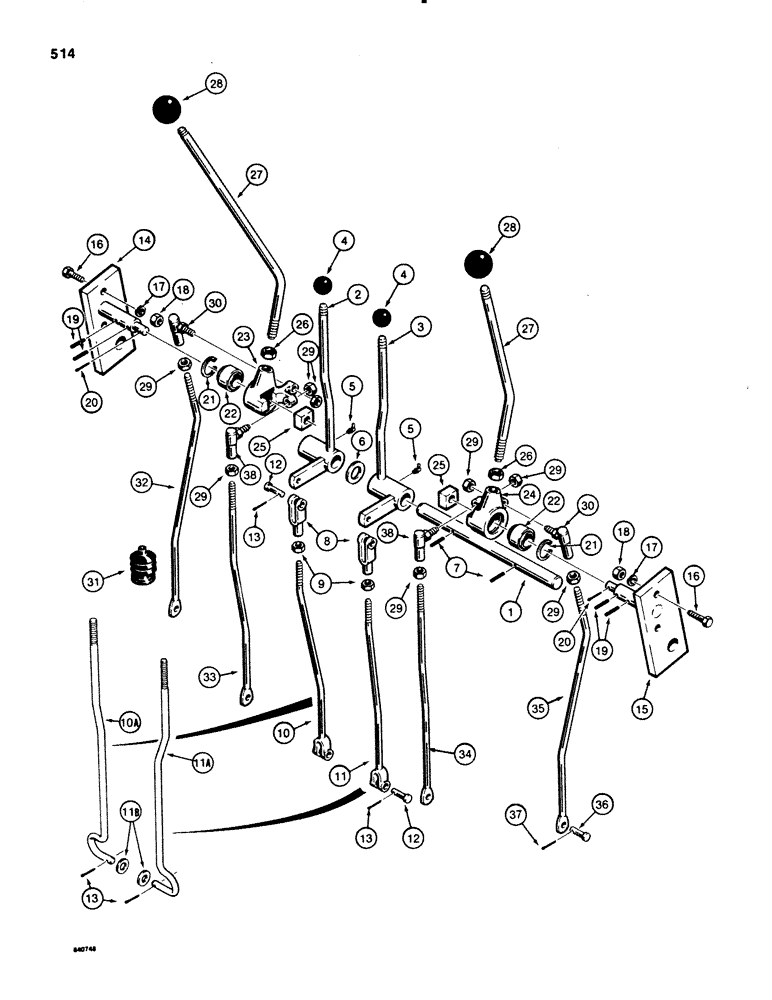

Запчасти Case 580SE (514) - BACKHOE CONTROLS WITH HAND SWING (09) - CHASSIS/ATTACHMENTS

1

D91195

SHAFT

stabilizer control levers

1шт.

2

D91169

LEVER

control, stabilizer, left hand

1шт.

3

D91170

LEVER

control, stabilizer, right hand

1шт.

4

D59912

KNOB

stabilizer control lever

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

2шт.

6

195-2097

WASHER,15/16" x 1 3/4" x .083"

flat, 7/8" bolt size, 15/16" ID x 1-3/4" OD x 3/32" thick, used as a shim

1шт.

7

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

8

H44198

YOKE

CLEVIS plated, 5/16"

2шт.

9

129-122

NUT,5/16"-24, G5

2шт.

10

D91182

ROD

left hand stabilizer, no longer used, order P/N D126335 rod

1шт.

10a

D126335

ROD

left hand stabilizer

1шт.

11

D91181

ROD

right hand stabilizer, no longer used, order P/N D126336 rod

1шт.

11a

D126336

ROD

right hand stabilizer

1шт.

11b

195-102

WASHER,1/4"

flat, plated, 1/4"

2шт.

12

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

2-4шт.

13

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

14

D91534

SUPPORT

backhoe controls, left hand

1шт.

15

D91185

SUPPORT

backhoe controls, right hand

1шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

4шт.

20

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

21

D38298

SNAP RING

Ring, Snap, 1.438", Int, #143, brg

2шт.

22

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

BEARING self aligning

2шт.

23

D38302

ADAPTER

LEVER pivot, left hand

1шт.

24

D38303

ADAPTER

LEVER pivot, right hand

1шт.

25

D38305

BLOCK

wear

2шт.

26

129-127

NUT,5/8"-18, G5

2шт.

27

D94184

LEVER

control, boom and swing, dipper and bucket

2шт.

28

D39118

KNOB

control levers

2шт.

29

129-123

NUT,3/8"-24, G5

8шт.

30

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT ball, special, 3/8"

2шт.

31

D85869

BELLOWS

BOOT rods, if used

6шт.

32

D91177

ROD

boom control

1шт.

33

D91178

ROD

swing control

1шт.

34

D91179

ROD

bucket control

1шт.

35

D91180

ROD

dipper control

1шт.

36

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

4шт.

37

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

38

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT ball, special, 3/8"

2шт.
