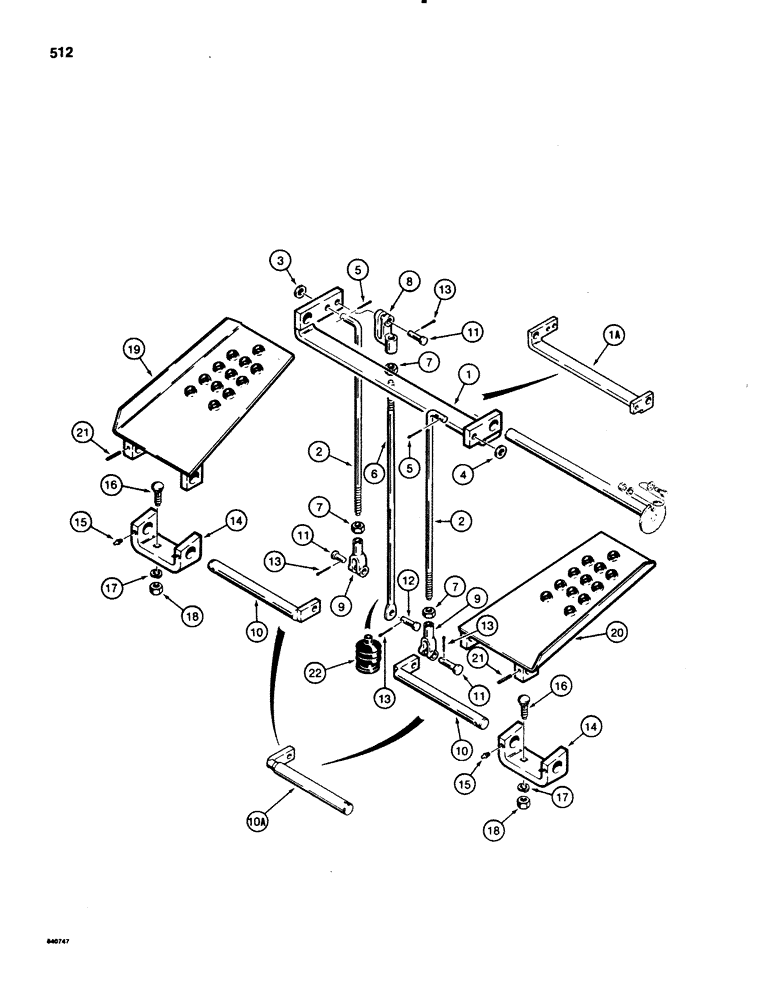

Запчасти Case 580SE (512) - BACKHOE CONTROLS WITH FOOT SWING, SWING PEDALS AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

D86082

BRACKET

swing pivot, no longer used, order P/N D129392 bracket

1шт.

1a

D129392

BRACKET

swing pivot

1шт.

2

D81905

ROD

swing peda, Serial Range: shafts-bracket

2шт.

3

T40163

WASHER

flat, left hand rod

1шт.

4

195-525

WASHER,3/8", SAE

flat, plated, right hand rod, 3/4"

1шт.

5

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

6

D30821

ROD

swing bracket to valve, straight, uses offset clevis

1шт.

7

129-123

NUT,3/8"-24, G5

3шт.

8

L11182

YOKE,3/8" - 24

CLEVIS, 3/8" offset, used on models with or without extendable dipper

1шт.

9

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated, metal, straight, Replaces fiberglass clevis on some models 3/8"-24

2шт.

10

D89317

SHAFT

swing pedal, no longer available, order P/N D135328 shaft

2шт.

10a

D135328

SHAFT

swing pedal

2шт.

11

141-54

CLEVIS PIN,3/8" x 1 1/16"

Special length 3/8" x 1 1/16"

3шт.

12

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

1шт.

13

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

14

D92817

BRACKET

swing pedal shaft

2шт.

15

219-17

LUBE NIPPLE,3/16" NPTF

FITTING, grease, straight, 3/16" drive

4шт.

16

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

4шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

D87888

PEDAL

swing, left hand

1шт.

20

D87886

PEDAL

swing, right hand

1шт.

21

138-304

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

22

D85869

BELLOWS

BOOT rod, if used

1шт.
