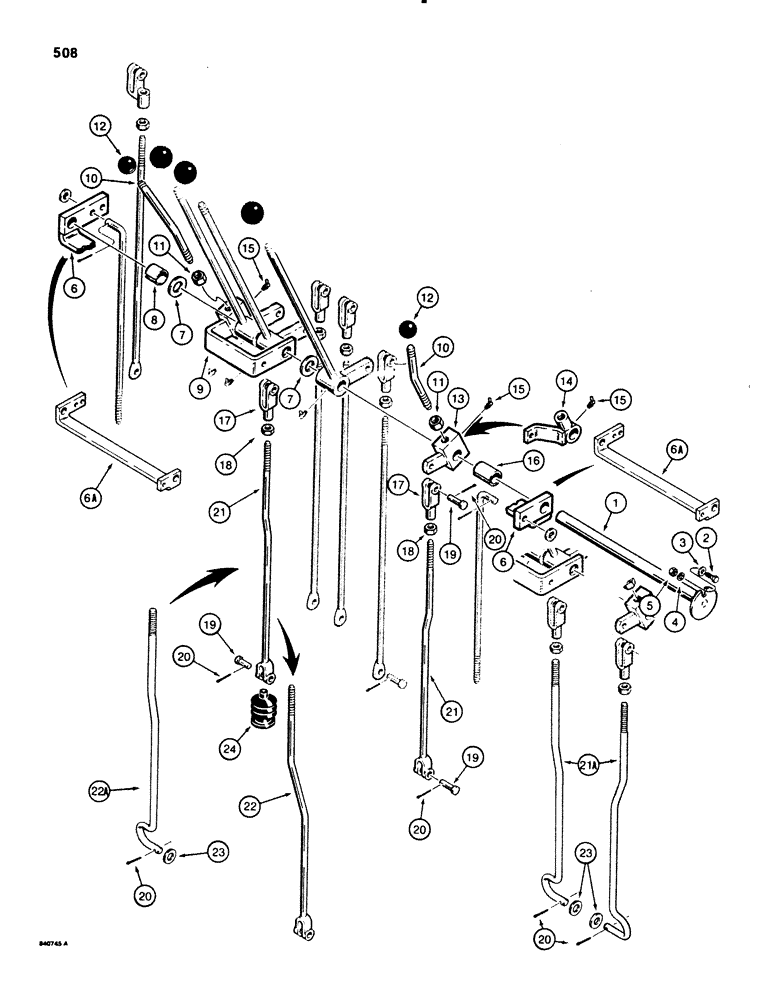

Запчасти Case 580SE (508) - BACKHOE CONTROLS WITH FOOT SWING, STABILIZER CONTROL LEVERS AND LINKAGE (09) - CHASSIS/ATTACHMENTS

1

D123224

SHAFT

control levers

1шт.

2

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Teflon coated Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

3

195-133

WASHER,5/16" x 3/4" x .065"

flat, black Teflon, 1/4"

1шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

6

D86082

BRACKET

swing pivot, no longer used, order P/N D129392 bracket

1шт.

6a

D129392

BRACKET

swing pivot

1шт.

7

195-545

WASHER,3/4", SAE

flat, plated, 3/4", used as a shim

1шт.

8

D88212

BUSHING

SPACER left hand, not used with extendable dipper

1шт.

9

D92993

BRACKET

left hand stabilizer pivot

1шт.

10

L108004

LEVER

control, stabilizer

2шт.

11

129-125

NUT,1/2"-20, G5

2шт.

12

D59912

KNOB

stabilizer control levers

2шт.

13

D92995

LEVER

pivot, right hand stabilizer on models without extendable dipper

1шт.

14

D87834

LEVER

pivot, right hand stabilizer on models with extendable dipper

1шт.

15

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING grease, 1/4" - 28 NF taper, 90°

2шт.

16

D88213

SPACER

right hand, not used with extendable dipper

1шт.

17

H44198

YOKE

CLEVIS metal, plated, 5/16", Replaces fiberglass clevis on some models

2шт.

18

129-122

NUT,5/16"-24, G5

2шт.

19

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

2-4шт.

20

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

21

D85934

ROD

stabilizer control, two used on models without extendable dipper, no longer used, order P/N D126331 rod

1-2шт.

21a

D126331

STEM

ROD stabilizer control, two used on models without extendable dipper

1-2шт.

22

D87482

ROD

left hand stabilizer control on models with extendable dipper, if used

1шт.

22a

D126334

ROD

left hand stabilizer control on models with extendable dipper, if used

1шт.

23

195-102

WASHER,1/4"

flat, plated, , if used 1/4"

2шт.

24

D85869

BELLOWS

BOOT rods, if used

2шт.
