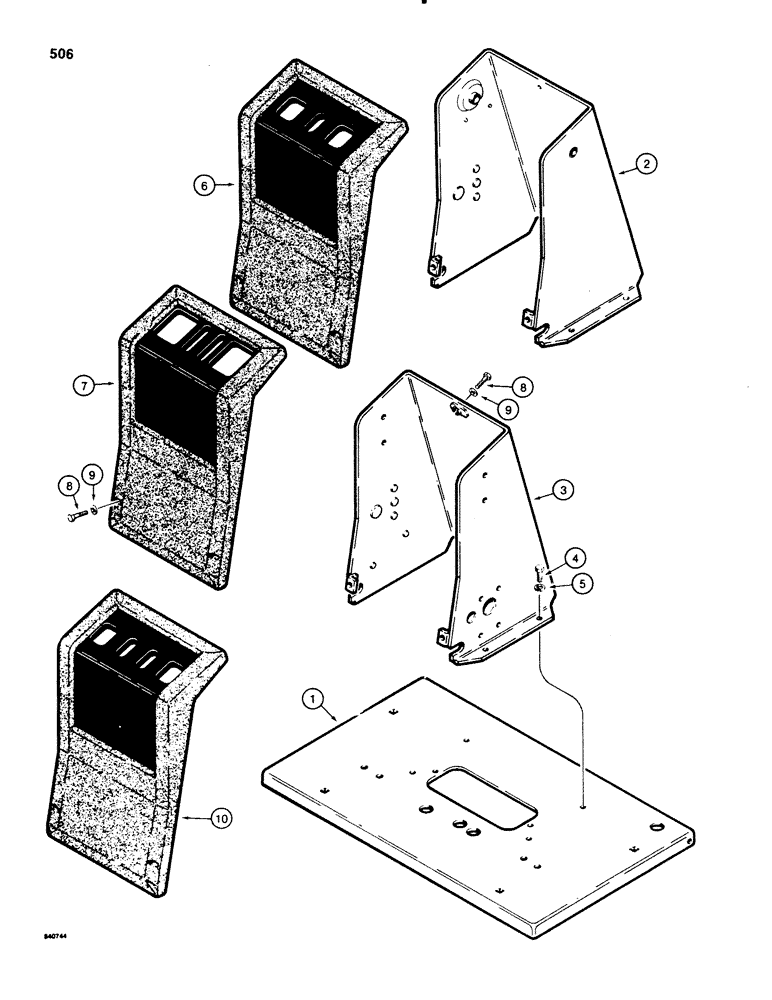

Запчасти Case 580SE (506) - BACKHOE CONTROL TOWER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

PLATE floor, backhoe, See Figure 586 for floor plates and related parts

1шт.

2

D123189

CONTROL BLOCK

TOWER control, backhoe, used with foot swing

1шт.

3

D123963

SUPPORT

TOWER control, backhoe, used with hand swing

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

6

D124081

COVER ASSY

COVER console, used with foot swing without extendable dipper, includes decals, See Figure 672

1шт.

7

D124080

COVER ASSY

COVER console, used with hand swing, includes decals, See Figure 672

1шт.

8

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex washer head, self tapping, black, 1/4" - 20 NC x 3/4"

3шт.

9

195-133

WASHER,5/16" x 3/4" x .065"

flat, black Teflon, 1/4"

3шт.

10

D124082

COVER

console, used with foot swing with extendable dipper, includes decals, see Figure 672

1шт.
