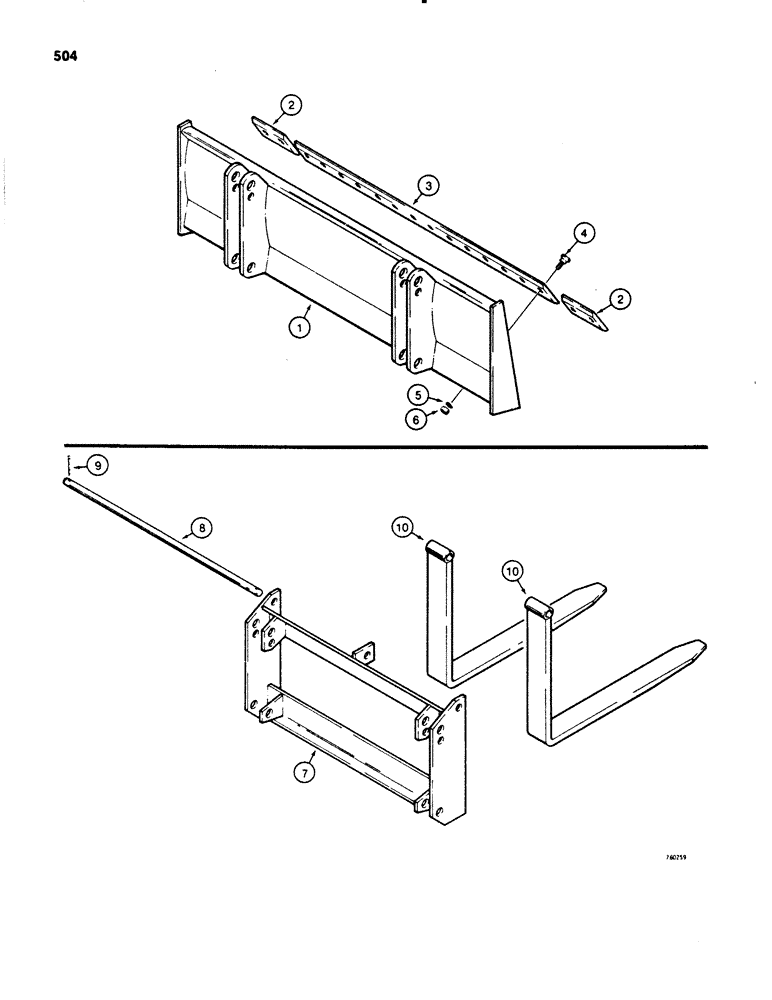

Запчасти Case 580SE (504) - LOADER BLADE, PALLET FORKS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

BLADE ASSEMBLY, loader, machinery item, see Figure 2 for ordering, Includes: Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE loader

1шт.

2

38150

EDGE

cutiing, blade, end, Loader

2шт.

3

NLS

NO LONGER SERVICED

EDGE cutting, blade, center, Loader

1шт.

4

118-331

PLOW BOLT,1/2"-13 x 1 3/4", G5

BOLT plow, plated, Loader blade, 1/2" 13 NC x 1 3/4"

18шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Loader blade 1/2"

18шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

18шт.

7

D69200

FRAME

pallet fork

1шт.

8

D69201

BAR

SHAFT fork mounting, Pallet forks

1шт.

9

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), , Pallet forks 1/4" x 1 3/4"

2шт.

10

D47999

FORK

pallet

2шт.
