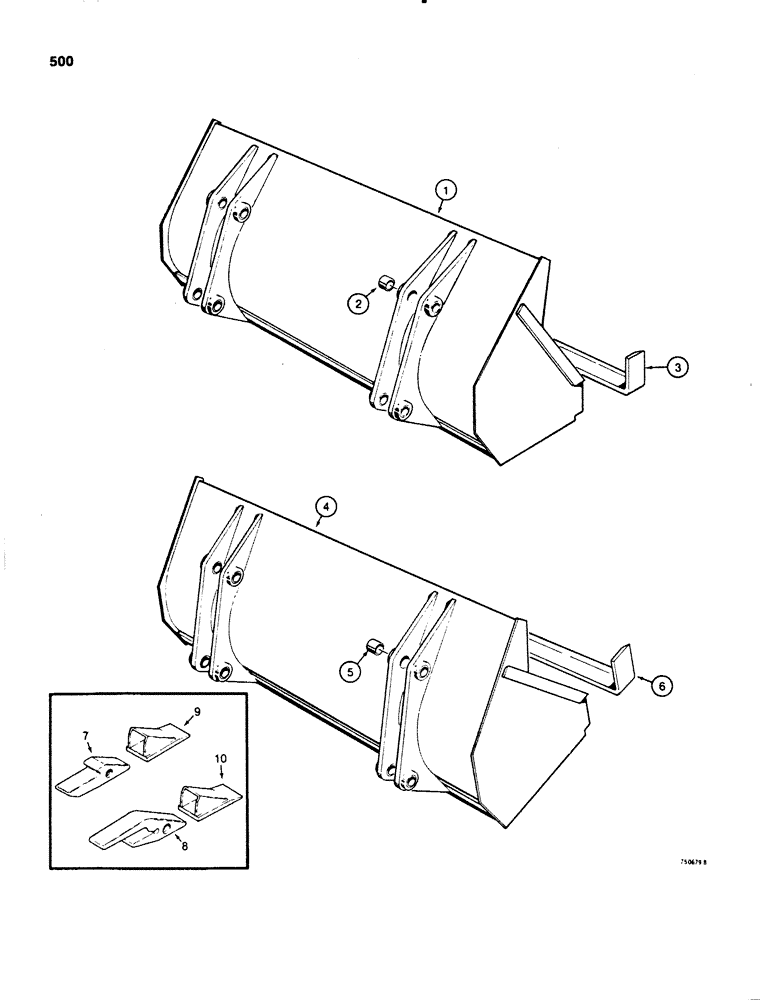

Запчасти Case 580SE (500) - LOADER BUCKETS, SHORT LIP BUCKETS, LONG LIP BUCKETS, BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

D64731

BUCKET

ASSEMBLY, loader, 74" (1880 mm) wide, two wheel drive, machinery item, See Figure 002 for ordering, Includes: Ref. 1 - 3, Short lip buckets

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET loader, Short lip buckets

1шт.

2

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

bucket ear, Short lip buckets

8шт.

3

D95072

EDGE, CUTTING,4” W x 72.47” L x 6” H x 3/4” Thk

EDGE cutting, front, Short lip buckets

1шт.

D122572

BUCKET

ASSEMBLY, loader, 82" (2083 mm) wide, two wheel drive models only, machinery item, See Figure 2 for ordering, Includes: Ref. 4 - 6, Long lip buckets

1шт.

D122630

BUCKET ASSEMBLY, loader, 82" (2083 mm) wide, four wheel drive models only, machinery item, See Figure 2 for ordering, Includes: Ref. 4 - 6, Long lip buckets

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET loader, Long lip buckets

1шт.

5

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

bucket ear, P/N D122572 or D122630 bucket, Long lip buckets

8шт.

6

D122568

CUTTING EDGE,6” W x 80.5” L x 4” H x 3/4” Thk

EDGE cutting, front, P/N D122572 or D122630 bucket, Long lip buckets

1шт.

7

D26368

SUPPORT

SHANK tooth, original equipment, Bucket teeth

1шт.

8

D58499

SUPPORT

SHANK tooth, service option, Bucket teeth

1шт.

9

D27748

TOOTH

POINT tooth, Bucket teeth

1шт.

10

D36720

TOOTH

POINT tooth, heavy duty service option, Bucket teeth

1шт.
